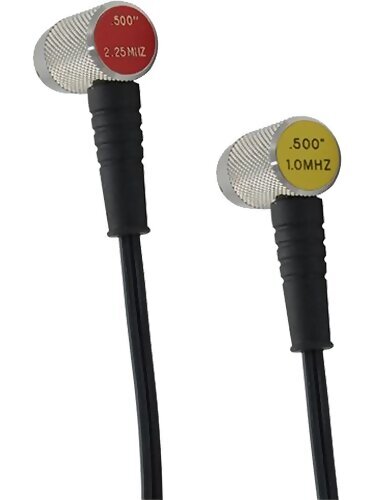

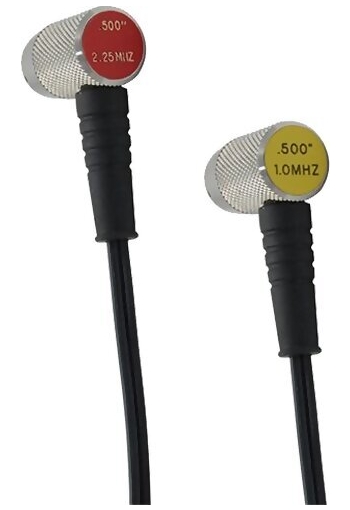

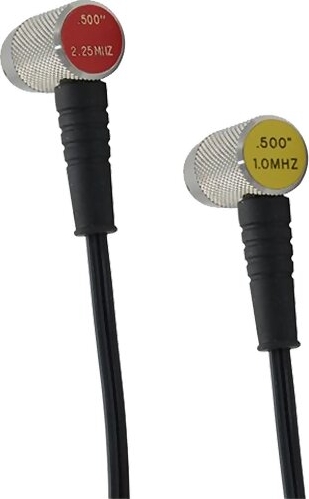

Dual element transducers are designed with two crystals in one case
The crystals are mounted at slight angles towards each other. Enabling better near surface focusing
Twin Crytal transducers are ideal for inspecting metal substrates but can also measure thicknesses of other materials, such as plastic, composites or fibreglass

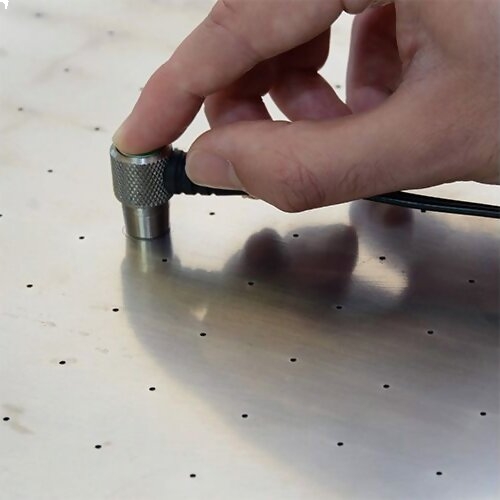

The Dakota range of Dual Element Transducers is designed to ultrasonically measure material thickness when access is only available to one side of the material under inspection.
Dual element transducers are designed with two crystals in one case, separated by an acoustic barrier. One crystal transmits a signal and receives on another crystal, this improves signal measuring speeds.
The crystals are mounted at slight angles towards each other. Enabling better near surface focusing.
Twin Crytal transducers are ideal for inspecting metal substrates but can also measure thicknesses of other materials, such as plastic, composites or fibreglass.
The Dillon AP Mechanical Dynamometer is a precision instrument that exhibits limitless versatility as a tension, traction and weight measuring instrument. The core of the device is a steel flexing beam. The enclosure is a heavy aluminum alloy case with baked on protective finish. The dial face is sealed and cushioned with a rubber gasket. Dillon AP Mechanical Dynamometer is available in capacities from 500 to 100,000 pounds, 200 to 50,000 kilograms, 2,000 to 500,000 Newtons.
View Product
|
|
The Dillon EDjunior dynamometer is designed to measure inline force / tension in a wide range of industrial applications. The backlit displays shows real-time and peak forces in lbf, kgf and Newtons measuring units. The EDjunior dillon dynamometer is a precision instrument that gets straight to the point - apply a load; take a reading. Its Spartan design is a direct response to industries that have wanted an extremely well-built instrument that could be relied upon for simple, yet critical measurements of weight and force. The EDjunior Dillon dynamometer provides peak detection as well as sustained load readings. Selectable units of measure include lbf, kgf and Newtons. The load element design and strain gauges chosen for the Dillon EDjunior produce an accuracy of 0.2%(full scale). This level of precision offers flexibility for use in a broad range of applications. Readings are displayed with a resolution of 1 part in 1000 to ensure the level of readability required of critical lifting applications. Heavy cumbersome tools make tough jobs even harder. Through the use of aircraft quality materials, we have made the Dillon EDjunior Dynamometer an easy-to-position, highly mobile instrument with exceptional strength. The EDjunior offer an impressive factor of safety at all capacities. Power is supplied by two C-cell batteries that are easily accessible through a side loading port. Battery replacement, however, is a rare event. With the Dillon EDjunior's low power consumption, typical battery life is over 400 hours.
View Product
|
|
