Dakota Ultrasonics BT1-DL (TI-MINIMAX) Bolt Tension Monitor Meter Z-182-0002 / Z-156-0008 Extensometer

See More Bolt Tension Meter and Monitors

Dakota Ultrasonics BT1-DL (TI-MINIMAX) Bolt Tension Monitor Meter Z-182-0002 / Z-156-0008 Extensometer

See More Bolt Tension Meter and Monitors
Price:
$4,200.00
  • Hassle Free 30-Day Returns
  • Availability: In Stock Usually ships within 1-2 business days
  • FREE - Standard Ground 3-5 Business Days View Faster Delivery Options
warrenty

Product Description
Dakota Ultrasonics TI-MINIMAX-C Bolt Tension Meter Z-182-0002
Probe Sold Separately
The first cost effective ultrasonic solution available on the market
Effectively monitor your bolts during periodic shutdowns over the service life of the fastener
Bolt Tension Meter

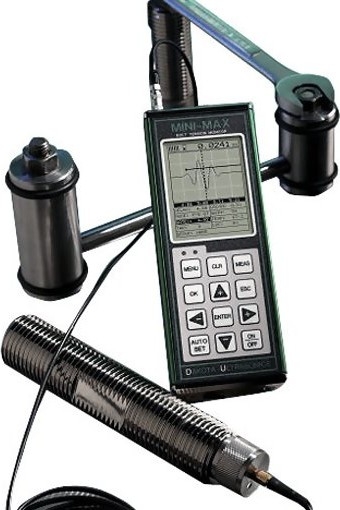

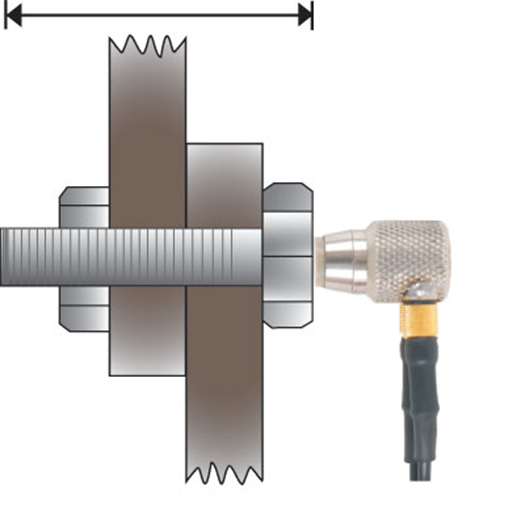

The Dakota Ultrasonics BT1-DL (TI-MINIMAX) Bolt Tension Monitor Meter Z-182-0002 / Z-156-0008 Extensometer, is a state of the art instrument designed to measure elongation produced by tightening a threaded fastener. The Dakota Ultrasonics BT1-DL (TI-MINIMAX) Bolt Tension Monitor Meter Z-182-0002 / Z-156-0008 Extensometer can measure the elongation very accurately in fasteners of virtually any material from 1/2 inch to 4 feet in length. The measurement is achieved by determining the change in the transit time of an ultrasonic shock wave along the length of the fastener as the fastener is tightened by any method. The on-board microcomputer automatically interprets this time measurement to display the time(nanoseconds), elongation, load, stress, or %strain from stretching a fastener.


line

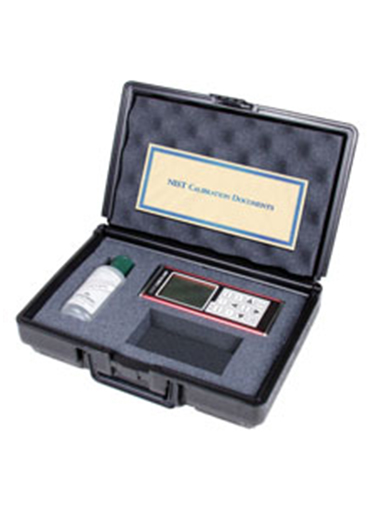

Kit Contents
line

  • Dakota Ultrasonics BT1-DL (TI-MINIMAX) Bolt Tension Monitor Meter
  • 4 oz. Bottle of Couplant
  • RS232 Transfer Cable
  • Lemo to DB9 M/F 10' Lemo to Microdot Transducer Cable
  • Windows Utility Software
  • 2 AA batteries
  • Operation Manual
  • Carrying Case


line
Features
line

  • The first cost effective ultrasonic solution available on the market.
  • Visually compare the unloaded to the loaded waveform.
  • Display Options - RF, Rectified, Large Digits with Limits Bar.
  • Effectively monitor your bolts during periodic shutdowns over the service life of the fastener.
  • Measurement quanities - Time (nanoseconds), Elongation, Load, Stress, and %Strain.
  • Display Resolution - 1/8" VGA 240 x 160 pixels.
  • Stores 8000 readings and waveforms in multiple groups.
  • Built-in Linear regression or vector for optimizing load measurements.
  • The Auto Set feature automatically optimizes detection and adjusts display.
  • Hi/Lo alarm tolerance limits work in conjunction with the data port and external pump shut-off device.
  • IP 65 Rated


line
Specifications
line

Measuring RangeFrom 1" to 48" (25.4mm to 122cm) bolts
TimeNanoseconds
ElongationChange in length (inches/millimeters)
LoadForce load applied (pounds kIP or kN Killonewtons)
StressForce for unit area stress applied (pounds kPSI or megapascals MPa)
Strain %percentage strain applied (inches per inch or millimeters per millimeter)
Resolution+/- .00001 inches (0.0001 mm)
Velocity Range.0492 to .3936 in/ms
1250 to 9999 meters/sec
CalibrationFixed, Single, and Two point zero calibration options.

Select bolt material types from a preset or custom list.

UnitsEnglish & Metric - Fahrenheit & Centigrade
Measuring ModesPulse-Echo (standard)
Pulse-Echo w/Gate (fine adjust)
PulserSquare wave pulser with adjustable pulse width (spike, thin, wide)
ReceiverManual or Auto Set gain control with 40dB range
Timing10 bit 250 MHz digitizer
Display ModesA-Scan - Rectified +/- (half wave view), or RF (full waveform view)
Alarm LimitsSet hi and lo tolerances with audible beeper, viewable scan bar, and visual LEDs
Data Logger (Internal)Total of 8,000 readings, multiple bolt groups. Stores both waveform views, nanoseconds, elongation, load, stress, and strain for each reading
Memory16 megabit non-volatile ram
TransducerSingle Element (1 to 10 MHz & 1/8" to 1" diameters)
Transducer Cable Lenght10 foot (custom lengths available, inquire)
Temperature Probefor automatic temperature compensation
Setup Memory64 custom user defined setups. Factory setups can also be edited by the user
GateGate used to fine adjust where the detection point occurs
Auto SetLocates the detection signal, optimizes the gain setting, and adjusts the overall display to show the waveform and detection point automatically
Field CalibrationVector & linear regression. Includes Factory calibration traceable to national standards
PowerThree 1.5V alkaline or 1.2V NiCad AA cells.

Typically operates for 150 hours on alkaline and 100 hours on NiCad (charger not included.)

DimensionsWidth (2.5in/63.5 mm)
Height (6.5 in/165 mm)
Depth (1.24 in/31.5 mm)
Weight13.5 ounces (with batteries)
Operating Temperature14 to 140F (-10C to 60C)


line
Downloads
line

Dakota Ultrasonics BT1-DL (TI-MINIMAX) Bolt Tension Monitor Meter Z-182-0002 / Z-156-0008 - Instruction Manual (NEW MODEL)
Dakota Ultrasonics Dual Element Corrosion Thickness Gauges - List
Dakota Ultrasonics TI-MINIMAX Bolt Tension Monitor Meter Z-182-0002 Extensometer - Data Sheet
Dakota Ultrasonics TI-MINIMAX Bolt Tension Monitor Meter Z-182-0002 Extensometer - Instruction Manual (OLD MODEL)
