Dakota Ultrasonics PZX1-DL (PZX-7DL) Data-Logging Precision Ultrasonic Wall Thickness Gauge Z-308-0001 / Z-308-0002 with T-402-5507 Probe with Built-in Datalogger with USB Output

---

Resolution: .0001" (0.001 mm)

---

Calibrate to known thickness or Select Material from 8 Presets

---

5-Year Warranty, Made in USA

---

Datalogging: Built-in datalogging for 10,000 data values, USB Output

---

Range with Standard Delay Line Transducer
0.0060" - 1.000" / 0.150 - 25.40 mm

Range with Contact Transducers
up to 36.00" / 915.0 mm

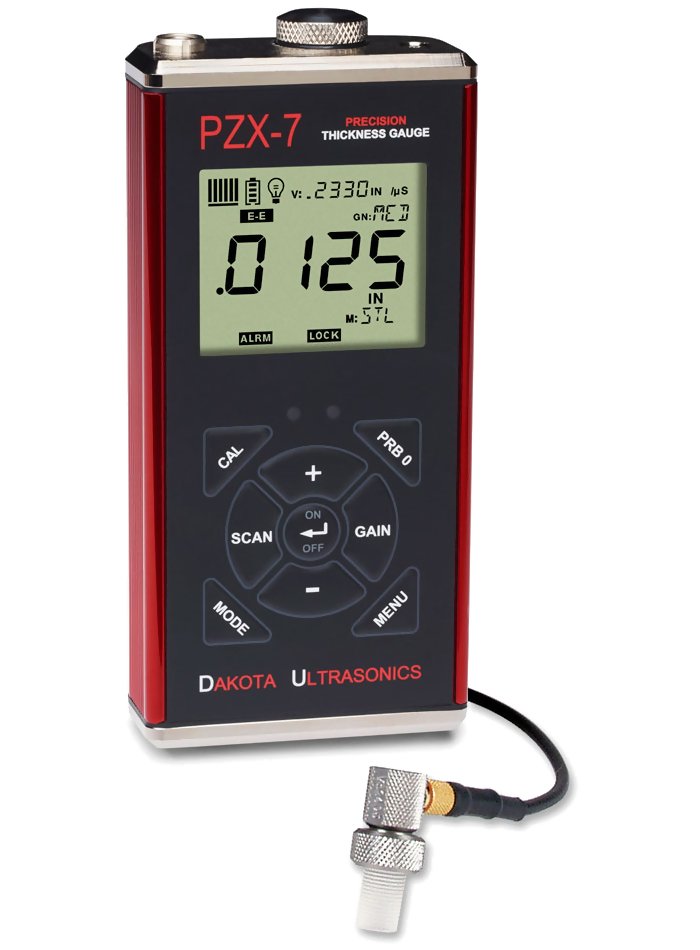

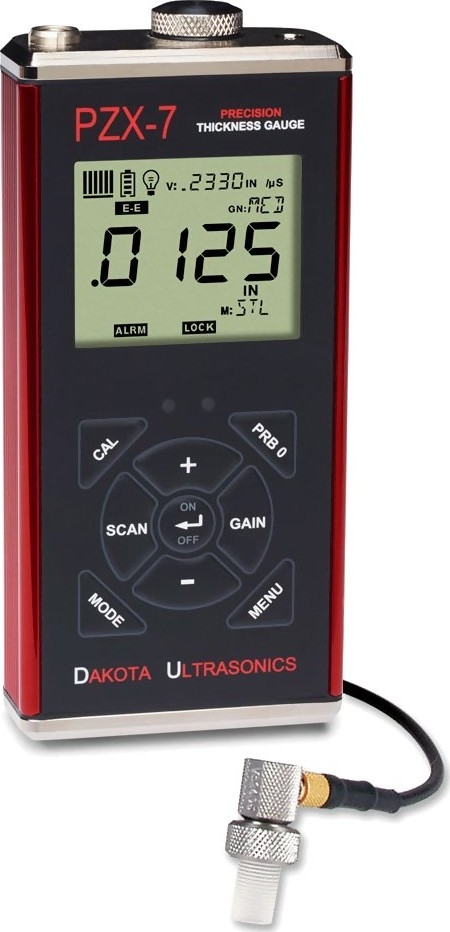

The Dakota Ultrasonics PZX1-DL (PZX-7DL) Data-Logging Precision Ultrasonic Wall Thickness Gauge Z-308-0001 / Z-308-0002 with T-402-5507 Probe with Built-in Datalogger is a precision ultrasonic wall thickness gauge designed for high-resolution measurements on thin-wall metal and plastics. It is packaged in a sturdy extruded aluminum housing which is sealed for excellent environmental protection assuring trouble-free use even in the toughest field and production environments.

The built-in datalogger has a capacity of 10,000 data values stored in up to 40 batches with 250 values/batch which is transferred via the USB port using the supplied cable. The PZX-7DL does not require any software, it will be shown as a drive when connected to a PC allowing convenient drag-n-drop into your program of choice. Data is saved in a comma deliminated file format (.csv) which makes it compatible with all programs and software.

The PZX-7DL has measuring range in steel from 0.0060 to 1.0000 inch, (0.15 to 25.40 mm). Using a single element delay tip transducer, the gauges will measure thin materials and automatically remove any coatings in Echo-Echo Mode (E-E) as well as automatically switch to Interface Echo Mode (I-E)when measuring thicker materials, For measurement of plastics, the user would select Plastic Mode (PLAS) and use the option Graphite Delay Line Tip (p/n X-633-0000).

Additional Measuring Modes include Differential (DIFF) where a user sets a "nominal value" and the gauge displays the ± difference between then nominal and actual wall thickness, Alarm (user-set Hi/Low Limits) trigger Hi/Lo LED's when the measured values are out of tolerance and Velocity Mode

The PZX-7DL can also be used with single element contact transducers for wall thickness measurements up to 36 inches (923 mm).

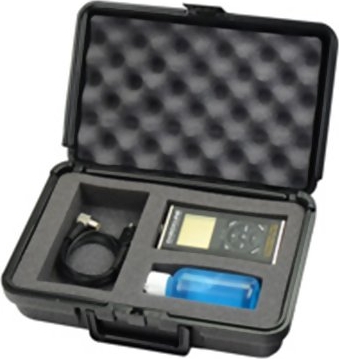

Kit Contents

Dakota Ultrasonics PZX1-DL (PZX-7DL) Data-Logging Precision Ultrasonic Wall Thickness Gauge Z-308-0001 / Z-308-0002 with T-402-5507 Probe with Built-in Datalogger With T-402-5507 Probe With Built-In Datalogger 4 oz. bottle of coupling fluid USB-C Data transfer cable 2 AA batteries NIST Traceable Calibration Certificate Carrying case Instruction Manual

Features

• Large, backlit LCD display retains last reading
• Resolution of 0.0001 inch (0.001 mm) with Selectable units of inch or mm
• Includes NIST Traceable Calibration Certificate
• IP 65 Rated for protection even in the toughest field conditions
• 5 Year Warranty, CE-Certified and Made in USA
• Scan mode, 100 readings/sec. Probe is slid over a large measuring area, the minimum thickness during the "scan" will be displayed
• Adjustable GAIN (AGC) in 5 steps to fine tune the gauge for use on challenging materials or applications
• Can be used with both Single Element Delay Line and contact transducers (5 to 20MHz)
• LCD shows Thickness Value, Velocity Setting, Gain Setting, Stability & Battery Indicators, Scan Mode, Zero and units
• Operates on two (2) AA Batteries - 45 hours continuous operation
• Calibrate to a sample of known thickness which automatically calculates the optimal acoustic velocity
• Built-in datalogging for 10,000 data values stored in up to 40 batches with 250 values/batch with USB Output
• Powered by: 120MHz FPGA timing & 100 volt spike pulser
• Measure Modes: Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS)
• Optional serial RS-232 or Bluetooth output
• Additional Modes Include Differential (from user-entered "nominal value"), Alarm (user-set Hi/Low Limits) and Velocity Mode

Specifications

Range with Standard Probe	0.0060-1.0000" (0.15-25.40 mm) with standard delay line transducer in steel
Resolution	0.0001" (0.001 mm) . 0.001" (0.01 mm), user-selected units and resolution
Display	Multi-function 7 segment 4.5 digit liquid crystal display with Back-light
Velocity Range	0.0120 to .7300 in/μs (305 to 18,542 m/sec)
Display Backlight	Backlight is selectable on/off/auto, and selectable brightness (Lo, Med, Hi) options
Output Optional	RS-232 and Bluetooth
Cable	4 ft. (1.2 m) with Microdot/Lemo00 connector.
Output	USB single value only (no internal memory)TI-007DLX for a model with build-in memory for 40,000 values USB output
Operating Temperature	-22 to 167F (-30 to 75C)
Housing Protection	IP65
Battery Life	Typically operates for 35 hours on alkaline and 18 hours on NiCad
Weight	11 ounces (308 grams)
Dimensions	2.5 x 5.17 x 1.25" (64 x 131 x 32 mm)
Warranty	Gauge: 5 Years Probes: 90 Days
Total Measuring Range (Steel)	0.006 - 36.000 inches 0.15 - 924 mm (depends on material and transducer/probe type)
Measuring Modes	Pulse-Echo (P-E), Echo-Echo (E-E), Interface Echo (I-E) and Plastics (PLAS), Differential, Alarm, Scan and Velocity (VX)
Gain	Automatic time dependent gain (TDG) with manual override
Probe (Standard)	1/4" diameter, 15 MHz delay line transducer with cable (p/n T-402-5507)
Probes (optional)	Various Single Element Delay Line and Contact Transducers (5 to 20MHz)
Display Update Rate	10 Hz (10 updates/sec)
Battery Type	2x AA 1.5V alkaline, 1.2V NiCad, or 1.5V lithium AA cells (rechargeable batteries can be used)
Housing	Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed)
Certifications	NIST Traceable and MIL-STD-45662A
Keypad	Sealed membrane that is resistant to both water and petroleum products Seven or eight tactile-feedback keys
Pulse Repetition Frequency (PRF)	200 Hz (200 pulses/sec)
To Lock Settings	With gauge powered off, press and hold the "+" key while powering on the gauge The LOCK icon will be illuminated on the Display
To unLock Settings	With gauge powered off, press and hold the "-" key while powering on the gauge The LOCK icon will turn off

Delay Line Tips for PZX-7DL

P/N	Description	Standard / Optional	Image
X-231-0000	1/4" x 3/8" for all metals (Short)	Standard
X-241-0000	1/4" x 1/2" for all metals (Long)	Standard
X-633-0000	1/4" x 3/8" Graphite Tip for thin plastics (Graphite Short)	OPTIONAL
