    Product Description

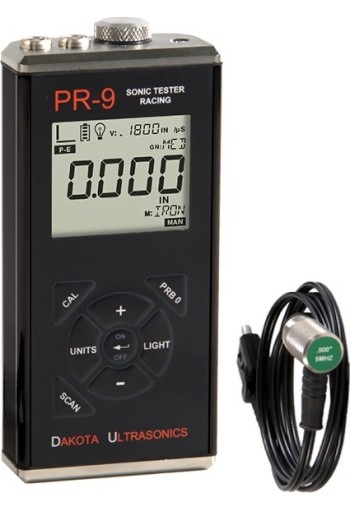

    Dakota Ultrasonics R9 (PR-9) Sonic Tester Thickness Gauge Z-309-0001 / Z-309-0002 is a dedicated design for the racing industry
    Factory calibration traceable to NIST & MIL-STD-45662A.
    Range: Measures from 0.025 to 36.00 inches (0.63 to 914.4 millimeters). Range dependent on material and transducer type.

    The Dakota Ultrasonics R9 (PR-9) Sonic Tester Thickness Gauge Z-309-0001 / Z-309-0002 is a dedicated design for the racing industry, and commonly used to measure the thickness of cylinder walls, head ports, decks, chassis tubing, body panels, and windshields. An additional benefit is the dual element style of probe with the ability to locate blind surface corrosion or deterioration on the blind surface in the water jacket area prior to boring a cylinder or port.The high speed scan feature takes 100 measurements per second to save time when scanning a complete cylinder.Simply drag the probe from the bottom of the cylinder, at a given clock position in the cylinder, up to the deck area to locate the minimum thickness found.Scan can then be switched off and the user can find the exact location of the minimum thickness.

    The PR-9 has three material calibration options (single point, two point, and target velocity) for increased accuracy.Cylinder wall mapping software available for manually creating reports.Finally, our 5 year limited warranty indicates how we feel about the quality.


    line
    Kit Contents
    line

    • Dakota Ultrasonics PR-9 Ultrasonic Thickness Gauge
    • Probe, 4 oz. bottle of coupling fluid
    • 2 AA batteries
    • NIST Calibration Certificate
    • Operating Instruction Manual
    • Foam-fitted carrying case


    line
    Features
    line

    • Includes NIST Calibration Certificate
    • Special-purpose probes are offered for a variety of applications
    • High Speed Scan Mode displays the lowest measurement found during a scan
    • Resolution of 0.001 inch (0.01 mm)
    • 5 Year Warranty*
    • CE Certified


    line
    Specifications
    line

    RangeMeasures from 0.025 to 36.00 inches (0.63 to 914.4 millimeters). Range dependent on material and transducer type.
    Resolution.001 inches / 0.01mm
    Velocity Range0.0120 to .7300 in/μs / 305 to 18,542 m/sec
    UnitsEnglish & Metric (inch or mm)
    Transducer TypesDual Element (1 to 10 MHz)
    Power SourceTwo 1.5V alkaline, 1.2V NiCad, or 1.5V Lithium AA cells.
    Battery LifeTypically operates for 45 hours on alkaline and 23 hours on NiCad. Low battery indicator on display.
    Auto shut-off after 5 minutes of inactivity.
    DisplayMulti-function 7 segment 4.5 digit liquid crystal display with 0.500 in digit height
    KeyboardSealed membrane that is resistant to both water and petroleum products.
    CaseExtruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
    Operating Temperature-22 to 167F (-30 to 75C)
    Weigth, net11 ounces
    Dimensions2.5 W x 5.17 H x 1.24 D inches / 63.5 x 131.3 x 31.5 mm
    Warranty5 year limited (90 days on probes)
    CertificationCE Approved, Factory calibration traceable to national standards
