DeFelsko KITFS3 PosiTector Inspection Kit Advanced

See More Coating Thickness Gauges

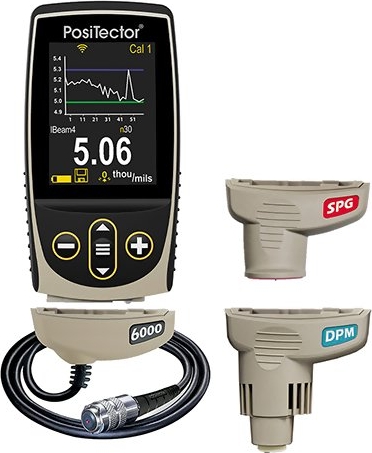

DeFelsko KITFS3 PosiTector Inspection Kit contains:

DeFelsko BDYADV-G PosiTector Advanced Body with NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, memory for 250,000 data points, USB, WiFi and Bluetooth output

DeFelsko PRBFS-D PosiTector 6000 Coating Thickness Cabled Probe, 0 - 1500 um (0 - 60 mils), Ferrous Metals

DeFelsko PRBSPG-B PosiTector SPG Surface Profile Probe

DeFelsko PRBDPM-C PosiTector DPM Environmental Dew Point Meter Probe

All DeFelsko PosiTector Inspection Kits contain 1 PosiTector gage body (Standard or Advanced) and 3 probes – coating thickness (Ferrous Only or Combination Ferrous Non-Ferrous), environmental dew point and surface profile, as well as accessories in a convenient hard shell carrying case.

The PosiTector Inspection Kits is available with your choice of Standard or Advanced Gage. Each PosiTector body accepts the PosiTector 6000, DPM, and SPG probes included in the kit easily converting from a coating thickness gauge to a dew point meter or surface profile gauge. Select from 12 pre-configured kits or build your own, contact us for details.

line
Kit Contents
line

The DeFelsko KITFS3 PosiTector Inspection Kit includes everything needed for testing:

PosiTector Advanced Gage Body BDYADV-G
DeFelsko PRBFS-D PosiTector 6000 Coating Thickness Cabled Probe 6000-FS, 0 - 1500 um (0 - 60 mils), Ferrous only
DeFelsko PRBDPM-C PosiTector DPM Environmental Dew Point Meter Probe PRBDPM
DeFelsko PRBSPG-B PosiTector SPG Surface Profile Probe PRBSPG
Precision plastic shims, glass zero plate and metal shim
Protective rubber holster with belt clip, wrist strap
Protective lens shield, 3 AAA alkaline batteries
PosiSoft Software and USB cable
3 Long Form Certificates of Calibration traceable to NIST
Convenient hard shell case and 3 instruction manuals
Two (2) year warranty on gauge body and probes

line
DeFelsko PosiTector Inspection Kit Standard Models
line

Each Standard Kit contains the PosiTector Standard gage body and 3 probes – coating thickness, environmental and surface profile.

Coating Thickness with Standard models

Storage of 1000 readings per probe - stored readings can be viewed or downloaded

Environmental Monitoring with Standard models

Storage of 2,500 datasets (RH, Ta, Ts, Td, Ts-Td). Stored readings can be viewed or downloaded.
Auto Log Mode runs unattended on batteries for up to 50 hours or continuously via USB

Surface Profile with Standard models

Storage of 1000 readings per probe - stored readings can be viewed or downloaded

Standard Kits Ordering Guide:

Surface Profile Probe	Dew Point Meter Probe	Coating Thickness Probe	Inspection Kit (Order Code)
PRBSPG	PRBDPM	6000-F 0 - 1500 um (0 - 60 mils) Ferrous only, integral	KITF1
PRBSPG	PRBDPM	6000-FS 0 - 1500 um (0 - 60 mils) Ferrous only, with cable	KITFS1
PRBSPG	PRBDPM	6000-FT High Range 0 - 6000 um (0 - 250 mils) Ferrous only, integral	KITFT1
PRBSPG	PRBDPM	6000-FTS High Range 0 - 6000 um (0 - 250 mils) Ferrous only, with cable	KITFTS1
PRBSPG	PRBDPM	6000-FN 0 - 1500 um (0 - 60 mils) Ferrous/non-ferrous, integral	KITFN1
PRBSPG	PRBDPM	6000-FNS 0 - 1500 um (0 - 60 mils) Ferrous/non-ferrous, with cable	KITFNS1

line
DeFelsko PosiTector Inspection Kit Advanced Models
line

Each Advanced Kit contains the PosiTector Advanced gage body and 3 probes – coating thickness, environmental and surface profile.

Features Include

Onscreen Batch Annotation - add notes, change batch names and more with built-in QWERTY keyboard
Live graphing of measurement data
WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.

Coating Thickness with Advanced models

Storage of 250,000 readings in up to 1,000 batches and sub-batches.
3 Scan Modes-increase measurement speed to 180+ readings per minute
Normal – take continuous readings without lifting the probe
NEW Statistics – take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
NEW Limited Count Average – take continuous readings up to a user specified count. Gage displays and records the average of the readings.
Multiple stored calibration adjustments for measuring on a variety of substrate conditions
SSPC-PA 2 feature determines if film thickness over a large area conforms to user specified min/max levels

Environmental Monitoring with Advanced models

Storage of 250,000 datasets in up to 1,000 batches.
NEW Enhanced Auto Log mode turns the gage off between readings for up to 8 months of battery life. Each reading can be uploaded to PosiSoft.net or an FTP server using WiFi. Automatically group readings into batches at daily, weekly, or monthly intervals
User defined limits for all parameters - visible and audible warnings
NEW Send email alerts when connected to WiFi
Wet bulb temperature can be displayed and recorded
Trend Charts graph readings in real-time

Surface Profile with Advanced models

Storage of 250,000 readings in up to 1,000 batches and sub-batches.
SmartBatchTM allows entry of user-defined parameters and criteria to comply with various standards and test methods

Advanced Kits Ordering Guide:

Surface Profile Probe	Dew Point Meter Probe	Coating Thickness Probe	Inspection Kit (Order Code)
PRBSPG	PRBDPM	6000-F 0 - 1500 um (0 - 60 mils) Ferrous only, integral	KITF3
PRBSPG	PRBDPM	6000-FS 0 - 1500 um (0 - 60 mils) Ferrous only, with cable	KITFS3
PRBSPG	PRBDPM	6000-FT High Range 0 - 6000 um (0 - 250 mils) Ferrous only, integral	KITFT3
PRBSPG	PRBDPM	6000-FTS High Range 0 - 6000 um (0 - 250 mils) Ferrous only, with cable	KITFTS3
PRBSPG	PRBDPM	6000-FN 0 - 1500 um (0 - 60 mils) Ferrous/non-ferrous, integral	KITFN3
PRBSPG	PRBDPM	6000-FNS 0 - 1500 um (0 - 60 mils) Ferrous/non-ferrous, with cable	KITFNS3

line
PosiSoft Suite of Software
line

Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More

line
Related Products
line

Testex Micrometer Dial Thickness Gauge

To be used with Testex replica Press-O-Film Tape to measure the surface roughness of blast cleaned surfaces

line

DeFelsko PosiTector 6000 Coating Thickness Gauge

For general purpose paint and coating applications

line

DeFelsko Positector DPM

Environment Meter / Dew Point Meter

line

DeFelsko Positector SPG

Surface Profile Gauge

line
Downloads
line

DeFelsko PosiTector Inspection Kits - Data Sheet

Accessories for DeFelsko Inspection Instruments - Online Catalog

F.A.Q.

Do your instruments require any formal training for use? Do you offer ‘demo’ models?

No. Our instruments are designed for simple operation, feature easy-to-use menus, both full and quick instruction manuals, and helpful videos. In lieu of demonstration models, we provide unlimited technical support via telephone and/or email, and a limited 30-day money back guarantee.

How often should the PosiTector probe be recalibrated?

DeFelsko PosiTector probes include a Certificate of Calibration with no expiry or end date. They have no shelf life, therefore the length of time in the field is not a good indicator for recalibration intervals. Many organizations with quality programs and recertification programs require annual recalibrations, and this is a good starting point for most users. DeFelsko recommends that customers establish calibration intervals based upon their own experience and work environment. Based on our product knowledge, data and customer feedback, a one year calibration interval from the date the instrument was placed in service is a good starting point.
