DeFelsko PosiTector SST Bresle Method Patches

Q: What is the difference between the DeFelsko and Latex Bresle Test patches?

The DeFelsko Adhesive Bresle Test Patch is similar to conventional Bresle Method patches and features a low-tack adhesive, making it easy to remove with no residue to clean. It is latex-free, and therefore significantly less expensive than conventional Bresle Test patches. For users who require a salts test patch with latex construction (which can expand to a 15 ml sample size), we offer the Latex Bresle Test Patch. It also features a low-tack adhesive and TearGuard™ technology for easy patch removal that leaves no residue to clean. Additionally, it features an easy-to-remove tab on the paper backing.

Q: How many times can the PosiPatch be reused?

One of the many innovative features of the PosiPatch Bresle Test Patch is its ability to be reused multiple times by rinsing with DI water between tests. The PosiPatch can be used repeatedly until water begins to leak through the air‐permeable membrane or the seal against the substrate. In our tests on freshly blasted steel with a typical 50‐100 micron (2‐ 4 mil) profile, PosiPatches were reused dozens of times with no noticeable wear or leakage. Patch life will vary depending on use—if dragged along the substrate, lifespan will be reduced. We believe that 10 uses is a very conservative estimate of lifespan and still yields the lowest per‐test cost of any commercially available Bresle Method Patch.

Q: Can the PosiPatch be used on vertical or inverted surfaces?

Yes. The Bresle Method PosiPatch is ideal for use in any orientation. When used on vertical surfaces, position the injection port at the 6 o’clock position before attaching the ring to the surface and insert the dispensing tip only as far as is needed to see the tip inside the PosiPatch.

Q: Can the PosiPatch be used on rough, blasted, or pitted surfaces?

Yes! The flexible PosiPatch is designed for multiple uses on typical rough surfaces and maintains its watertight seal for a simple, leak-free test.

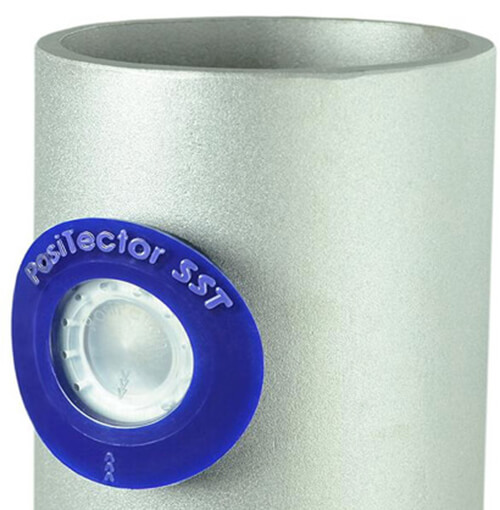

Q: Can the PosiPatch be used on curved surfaces?

Yes. The Bresle Method PosiPatch is ideal for measuring on flat and curved surfaces. The Standard Magnetic Ring is included in all PosiPatch Kits and is the first choice for flat surfaces and curved surfaces with diameters greater than 100 cm (40 in.). Like the Standard Magnetic ring, the available Flexible Magnetic Ring leaves no messy adhesive residue to clean. Intended for use on pipes and other tightly-radiused surfaces, it allows the PosiPatch to form a tight, leak-free seal on outside diameters greater than 10 cm (4 inches) and inside diameters greater than 12 cm (4.5 inches).

DeFelsko PosiTector SST Bresle Method Patches

See More DeFelsko PosiTector SST

Reusable patches with Standard or Flexible magnetic ring

For measuring salt contamination in accordance with ISO 8502-6,9

Magnetic ring attaches to steel with no residue to clean

Select from 3 DeFelsko Bresle Method Patch Options

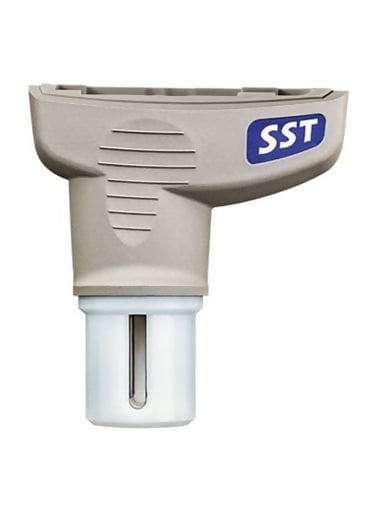

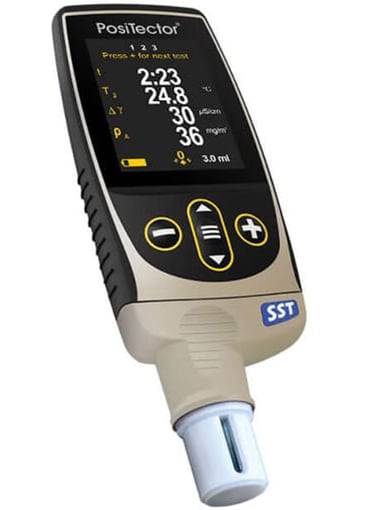

For use with the PosiTector SST


PosiPatch™	DeFelsko Adhesive Patch	Latex Adhesive Patch
Reusable patch with Standard or Flexible magnetic ring	Self-adhesive, polyurethane patches	Latex patch with easy-open tabs and low-tack adhesive for easy removal

line

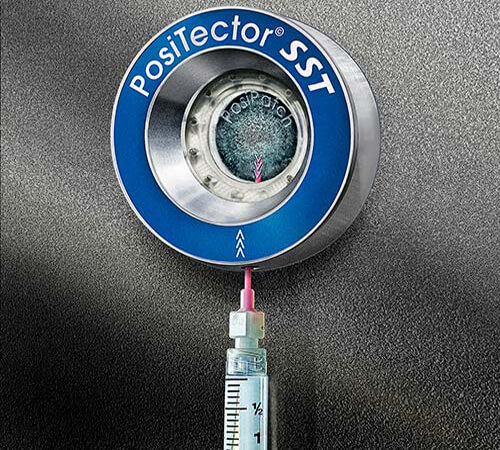

PosiPatch™
line

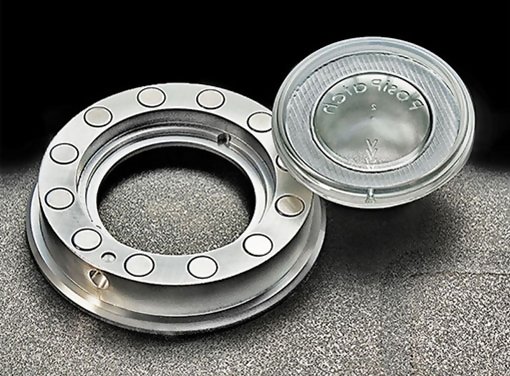

Reusable patch with Standard or Flexible magnetic ring

For measuring salt contamination in accordance with ISO 8502-6,9

Magnetic ring attaches to steel with no residue to clean

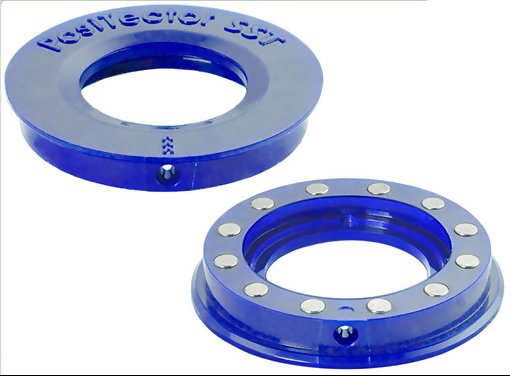

- Standard magnetic ring for flat surfaces and diameters > 1 m (40 in.)

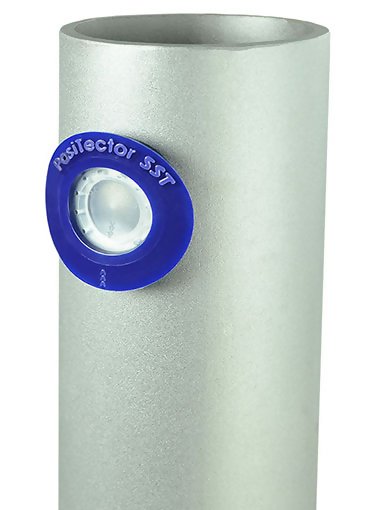

- Flexible magnetic ring for ID/OD diameters > 10 cm (4 in.)†

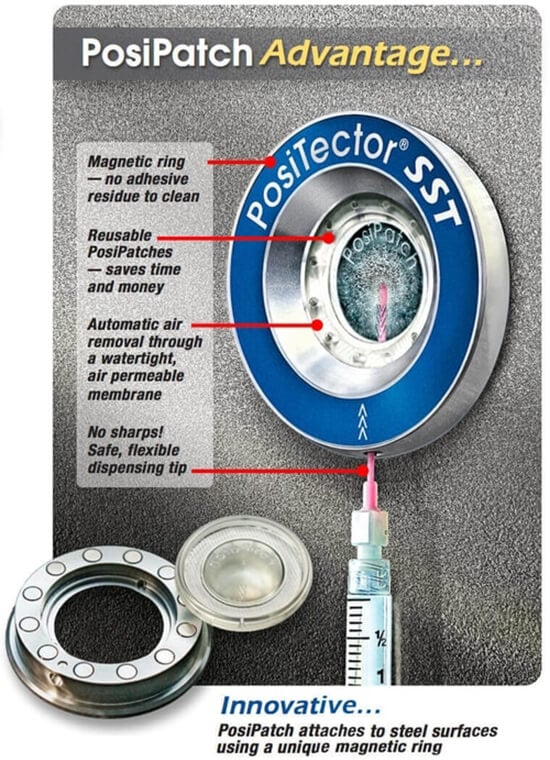

Automatic air removal through a watertight, air permeable membrane
No sharps, no needles! Safe, flexible dispensing tip mates with PosiPatch
Comparable price to latex patches
Reusable patent-pending PosiPatch saves time and money
Easy-to-use in any orientation

† Flexible magnetic ring minimum ID is 12 cm (4.5 in.)

Specifications of the PosiPatch™ line

Test Area*	1250 mm²
Test Volume	2.5 - 3 ml
Patch Diameter	44.4 mm (1.75 in.)
Magnetic Ring Diameter	66.9 mm (2.6 in.)
Background Contamination*	< 3 mg/m2

* Certificate included

Five PosiPatches are included with all PosiTector SST PosiPatch Kits. These kits include everything required to begin measuring with the innovative PosiPatch. While they are reusable, PosiPatches may eventually wear out or become dirty after extensive testing

line

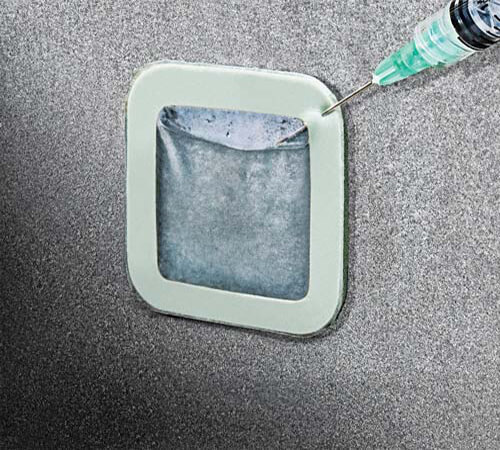

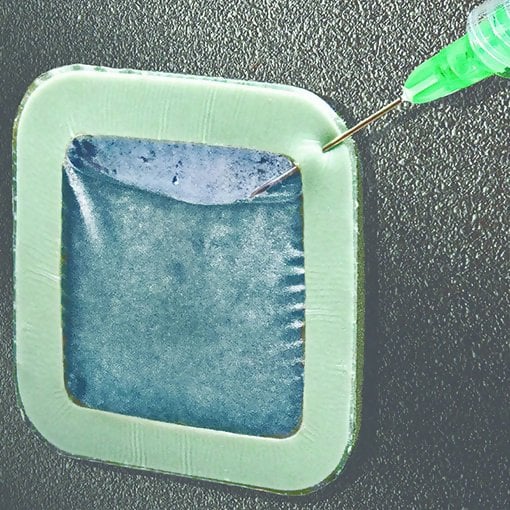

DeFelsko Adhesive Patch
line

For measuring salt contamination in accordance with ISO 8502-6,9
Low-tack adhesive for easy patch removal with no residue to clean
Works on nearly any material or surface geometry
Latex-free
Lower cost than latex patch
Easy-to-use in any orientation

Specifications of the DeFelsko Adhesive Patch line

Test Area*	1250 mm²
Test Volume	2.5 - 3 ml
Dimensions	50 mm x 50 mm (1.97 in. x 1.97 in)
Background Contamination*	< 5 mg/m²

* Certificate included

line

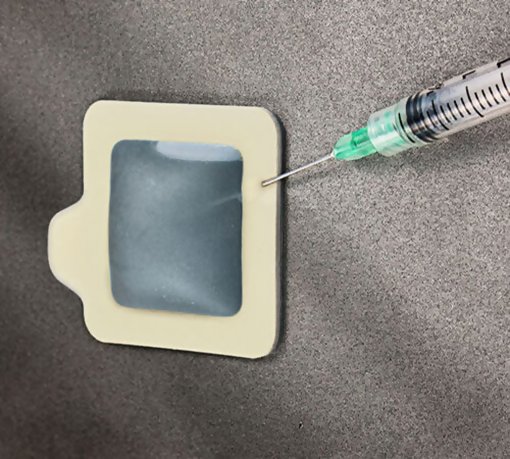

Latex Adhesive Patch
line

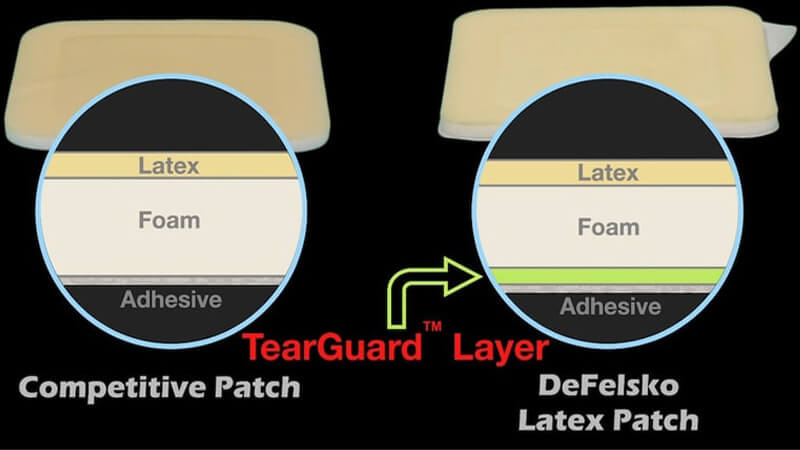

ISO 8502-6 conforming latex patch with easy-open tab and low-tack adhesive with TearGuard™ technology.

Specifications of the Latex Adhesive Patch line

Test Area*	1250 mm²
Test Volume	2 - 15 ml
Dimensions	52 mm x 52 mm (2.05 in. x 2.05 in)
Background Contamination*	< 5 mg/m²

* Certificate included

line
Downloads
line

DeFelsko Accessories for Inspection Instruments - Online Catalog

F.A.Q.

What is the difference between the DeFelsko and Latex Bresle Test patches?

The DeFelsko Adhesive Bresle Test Patch is similar to conventional Bresle Method patches and features a low-tack adhesive, making it easy to remove with no residue to clean. It is latex-free, and therefore significantly less expensive than conventional Bresle Test patches.

For users who require a salts test patch with latex construction (which can expand to a 15 ml sample size), we offer the Latex Bresle Test Patch. It also features a low-tack adhesive and TearGuard™ technology for easy patch removal that leaves no residue to clean. Additionally, it features an easy-to-remove tab on the paper backing.

How many times can the PosiPatch be reused?

One of the many innovative features of the PosiPatch Bresle Test Patch is its ability to be reused multiple times by rinsing with DI water between tests. The PosiPatch can be used repeatedly until water begins to leak through the air‐permeable membrane or the seal against the substrate. In our tests on freshly blasted steel with a typical 50‐100 micron (2‐ 4 mil) profile, PosiPatches were reused dozens of times with no noticeable wear or leakage. Patch life will vary depending on use—if dragged along the substrate, lifespan will be reduced. We believe that 10 uses is a very conservative estimate of lifespan and still yields the lowest per‐test cost of any commercially available Bresle Method Patch.

Can the PosiPatch be used on vertical or inverted surfaces?

Yes. The Bresle Method PosiPatch is ideal for use in any orientation. When used on vertical surfaces, position the injection port at the 6 o’clock position before attaching the ring to the surface and insert the dispensing tip only as far as is needed to see the tip inside the PosiPatch.

Can the PosiPatch be used on rough, blasted, or pitted surfaces?

Yes! The flexible PosiPatch is designed for multiple uses on typical rough surfaces and maintains its watertight seal for a simple, leak-free test.

Can the PosiPatch be used on curved surfaces?

Yes. The Bresle Method PosiPatch is ideal for measuring on flat and curved surfaces.

The Standard Magnetic Ring is included in all PosiPatch Kits and is the first choice for flat surfaces and curved surfaces with diameters greater than 100 cm (40 in.).

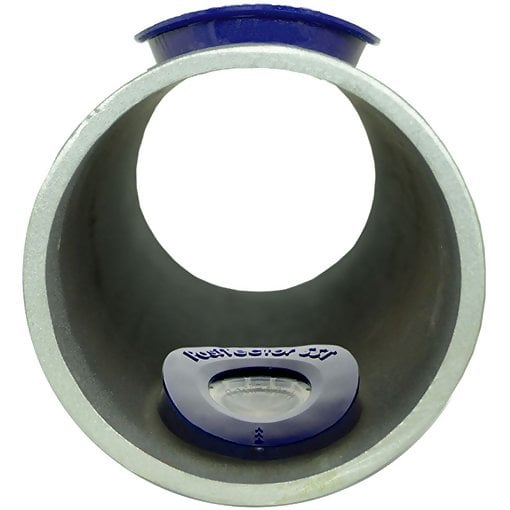

Like the Standard Magnetic ring, the available Flexible Magnetic Ring leaves no messy adhesive residue to clean. Intended for use on pipes and other tightly-radiused surfaces, it allows the PosiPatch to form a tight, leak-free seal on outside diameters greater than 10 cm (4 inches) and inside diameters greater than 12 cm (4.5 inches).

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE
DeFelsko SSTPATCHP24 PosiTector SST Bresle Method PosiPatch, Pack of 24 View Model Details	$275.00
DeFelsko SSTPATCHP5 PosiTector SST Bresle Method PosiPatch, Pack of 5 View Model Details	$90.00
DeFelsko SSTPATCHD25 PosiTector SST Adhesive Bresle Method Patch, Pack of 25 View Model Details	$95.00
DeFelsko SSTPATCHL25 PosiTector SST Latex Adhesive Bresle Method Patch, Pack of 25 View Model Details	$145.00

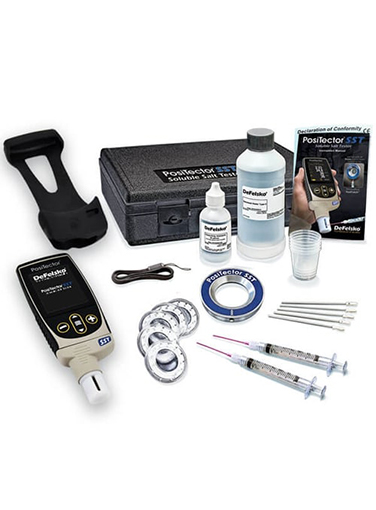

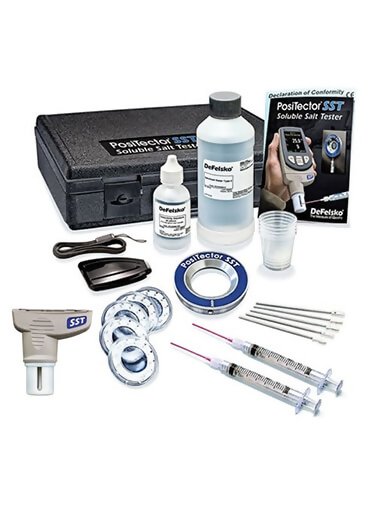

DeFelsko SSTKITPATCHP PosiTector SST Bresle Method PosiPatch Starter Kit View Model Details	$300.00
DeFelsko SSTKITPATCHPF PosiTector SST Bresle Method PosiPatch Flexible Ring Starter Kit View Model Details	$300.00

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

DeFelsko SSTPATCHP24 PosiTector SST Bresle Method PosiPatch, Pack of 24 View Model Details

$275.00

DeFelsko SSTPATCHP5 PosiTector SST Bresle Method PosiPatch, Pack of 5 View Model Details

$90.00

DeFelsko SSTPATCHD25 PosiTector SST Adhesive Bresle Method Patch, Pack of 25 View Model Details

$95.00

DeFelsko SSTPATCHL25 PosiTector SST Latex Adhesive Bresle Method Patch, Pack of 25 View Model Details

$145.00

DeFelsko SSTKITPATCHP PosiTector SST Bresle Method PosiPatch Starter Kit View Model Details

$300.00

DeFelsko SSTKITPATCHPF PosiTector SST Bresle Method PosiPatch Flexible Ring Starter Kit View Model Details

$300.00
