DeFelsko Spare Probes for PosiTector 6000 Coating Thickness Gauges For Use With 6000 Series
Display Sold Separately
Spare / Replacement probes for 6000 Series Coating Thickness Gauges. All probes are supplied with a NIST Traceablecalibration certificate.
- Two (2) year probe warranty
- Heavy-duty, gold-plated locking connector for industrial environments
- Certificate of Calibration (Long Form) traceable to NIST or PTB included with every probe
- Each probe retains its own unique calibration information (allowing full probe interchangeability)
- Extended cables available for underwater or remote measuring. Specify length when ordering
- Probes are PosiTector SmartLink compatible - wirelessly connect PosiTector 6000 probes to your smart device
Probe Ordering Guide:
F - for ferrous metals (steel and cast iron)
N - for non-ferrous metals (aluminum, copper, titanium, etc.)
FN - for all metal substrates - Automatically recognizes the substrate and takes a measurement
Integral Probes: PRBF, PRBN, PRBFN, PRBFT
| | F, N, FN | FT |
| Range: | 0 - 60 mils | 0 - 1500 μ | 0 - 250 mils | 0 - 6 mm | 0 - 6000 μ |
| *Accuracy: | ± (0.05 mils + 1%) 0 - 2 mils | ± (0.1 mils + 1%) > 2 mils | ± (1 μ + 1%) 0 - 50 μ | ± (2 μ + 1%) > 50 μ
| ± (0.5 mils + 1%) 0 - 100 mils | ± (0.5 mil + 3%) > 100 mils | ± (0.01 mm + 1%) 0 - 2.5 mm ± (0.01 mm + 3%) > 2.5 mm| |
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.

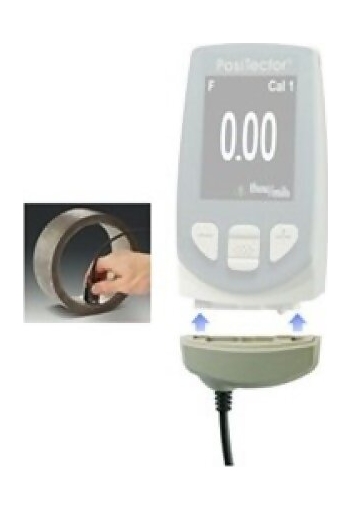

Cabled Regular Probes: PRBFS, PRBNS, PRBFNS, PRBNAS, PRBFTS
| Probe Model | FS, NS, FNS | NAS | FTS |
| Range: | 0 - 60 mils | 0 - 1500 μ | 0 - 25 mils | 0 - 625 μ | 0 - 250 mils | 0 - 6 mm | 0 - 6000 μ |
| *Accuracy: | ± (0.05 mils + 1%) 0 - 2 mils | ± (0.1 mils + 1%) > 2 mils | ± (1 μ + 1%) 0 - 50 μ | ± (2 μ + 1%) > 50 μ
| ± (0.02 mils + 1%) 0 - 4 mils | ± (0.1 mils + 3%) > 4 mils | ± (.5 um + 1%) 0 - 100 um | ± (2 um + 3%) > 100 um
| ± (0.5 mils + 1%) 0 - 100 mils | ± (0.5 mil + 3%) > 100 mils | ± (0.01 mm + 1%) 0 - 2.5 mm | ± (0.01 mm + 3%) > 2.5 mm
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
FXS Xtreme™
| Range: | 0 - 80 mils | 0 - 2000 μ |
| *Accuracy: | ± (0.05 mils + 1%) 0 - 2 mils | ± (0.1 mils + 1%) > 2 mils | ± (1 μ + 1%) 0 - 50 μ | ± (2 μ + 1%) > 50 μ |
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
Cabled 90° Regular Probes: PRBFRS, PRBNRS, PRBFNRS
| Range: | 0 - 60 mils | 0 - 1500 μ |
| *Accuracy: | ± (0.05 mils + 1%) 0 - 2 mils | ± (0.1 mils + 1%) > 2 mils | ± (1 μ + 1%) 0 - 50 μ | ± (2 μ + 1%) > 50 μ |
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
Cabled Probe for Duplex Coatings: PRBFNDS
| Range | 0 - 60 mils | 0 - 1500 μ |
| Minimum Zinc Thickness | 0.5 mil (13 μ) |
| Paint Layer Accuracy Mils | ± (0.05 mils + 1%) 0 - 2 mils | ± (0.1 mils + 1%) > 2 mils |
| Paint Layer Accuracy Microns | ± (1 μ + 1%) 0 - 50 μ | ± (2 μ + 1%) > 50 μ |
| Zinc Layer Accuracy Mils | ± (0.1 mils + 1%) 0.5 - 2 mils | ± (0.2 mils + 1%) > 2 mils |
| Zinc Layer Accuracy Microns | ± (2 um + 1%) 13 - 50 um | ± (4 um + 1%) > 50 um |
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
Cabled 0° Microprobes: PRBF0S, PRBN0S
| Probe Model | F0S, N0S |
| Range: | 0 - 45 mils | 0 - 1150 μ |
| *Accuracy: | ± (0.02 mils + 1%) 0 - 4 mils | ± (0.1 mils + 3%) > 4 mils | ± (.5 μ + 1%) 0 - 100 μ | ± (2 μ + 3%) > 100 μ |
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
Cabled 45° Microprobes: PRBF45S, PRBN45S
| Probe Model | F45S | N45S |
| Range: | 0 - 45 mils | 0 - 1150 μ | 0 - 25 mils | 0 - 625 μ |
| *Accuracy: | ± (0.02 mils + 1%) 0 - 4 mils | ± (0.1 mils + 3%) > 4 mils | ± (.5 μ + 1%) 0 - 100 μ | ± (2 μ + 3%) > 100 μ |
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
Cabled 90° Microprobes:PRBF90S, PRBN90S
| | F90S | N90S |
| Range: | 0 - 45 mils | 0 - 1150 μ | 0 - 25 mils | 0 - 625 μ |
| *Accuracy: | ± (0.02 mils + 1%) 0 - 4 mils | ± (0.1 mils + 3%) > 4 mils | ± (.5 μ + 1%) 0 - 100 μ | ± (2 μ + 3%) > 100 μ |
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
Cabled 90° Extended Length Microprobe: PRBF90ES
| Range: | 0 - 45 mils | 0 - 1150 μ |
| *Accuracy: | ± (0.02 mils + 1%) 0 - 4 mils | ± (0.1 mils + 3%) > 4 mils | ± (.5 μ + 1%) 0 - 100 μ | ± (2 μ + 3%) > 100 μ |
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
High-Range Probes: PRBFT, PRBFTS, PRBFTRS, PRBFNTS
| | Range: | 0 - 250 mils | 0 - 6 mm | 0 - 6000 μ |
| | *Accuracy: | ± (0.5 mils + 1%) 0 - 100 mils | ± (0.5 mil + 3%) > 100 mils | ± (0.01 mm + 1%) 0 - 2.5 mm | ± (0.01 mm + 3%) > 2.5 mm |
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
Ideal for thick protective coatings such as epoxy, rubber, concrete liners, intumescent fireproofing and more: PRBFKS, PRBNKS
| Range: | 0 - 500 mils | 0 - 13 mm |
| *Accuracy: | ± (1 mils + 3%) | ± (0.02 mm + 3%) |
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
Measure non-conductive coatings on steel substrates: FHXS Xtreme™
| Range: | 0 - 400 mils | 0 - 10,000 μ |
| *Accuracy: | ± (0.1 mils + 3%) | ± (2 μ + 3%) |
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
Ideal for measuring thick epoxies, rubbers, fireproofing and other thick protective coatings applied to steel: PRBFJS
| Range: | 0 - 1.0 in. | 0 - 25 mm |
| *Accuracy: | ± (0.01 in. + 3%) | ± (0.2 mm + 3%) |
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
Measures intumescent paint and other thick protective coatings on steel: PRBFLS
| Range: | 0 - 1.5 inches | 0 - 38 mm |
| *Accuracy: | ± (0.01 in. + 3%) | ± (0.2 mm + 3%) |
| Minimum Surface Area: | 3.25 x 3.25 in. (83 x 83 mm) |
| Minimum Substrate Thickness: | 0.1 in. (2.5 mm) |
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
Measures very thick coatings on ALL metals: PRBFNGS
| Probe Model | FNGS |
| Range: | 0 - 2.5 inches | 0 - 63.5 mm |
| *Accuracy: | ± (0.01 in. + 3%) | ± (0.2 mm + 3%) |
|
| Minimum Surface Area: | 10 x 10 in. (254 x 254 mm) |
| Minimum Substrate Thickness: | 0.2 in. (5 mm) |
| Weight: | 0.8 lb. (0.4 kg) |
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
