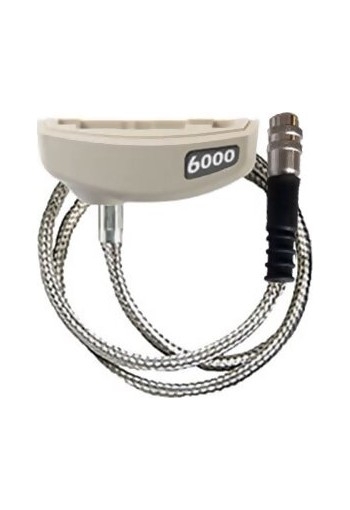

DeFelsko PosiTector 6000 FXS Xtreme Coating Thickness probe – built for hot surfaces and rugged applications including hot dipped and thermally sprayed galvanizing on steel
Display Sold Separately
The PosiTector 6000 consists of a body and a probe. A wide selection of interchangeable probes are available. All bodies accept all probes.
Designed for hot rugged applications. The FXS Xtreme™ probe features an improved zirconia-toughened alumina wear face and a new braided steel cable making it ideal for harsh conditions and continuous measurement on hot surfaces up to 250º C (500º F).
Enhanced measuring speed of 100+ readings per minute makes it ideal for measuring large, rough surfaces quickly. Scan mode increases measurement rate to over 200 readings per minute (PosiTector Advanced only).
Compatible with PosiTector bodies with serial numbers greater than 700,000.
Specifications
 | Range: | 0 - 80 mils |
| 0 - 2000 μ |
| *Accuracy: | ± (0.05 mils + 1%) 0 - 2 mils |
| ± (0.1 mils + 1%) > 2 mils |
| ± (1 μ + 1%) 0 - 50 μ |
| ± (2 μ + 1%) > 50 μ |
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
FAQ's - Frequently Asked Questions
Click to View DeFelsko PosiTector 6000 Frequently Asked Questions
Downloads
