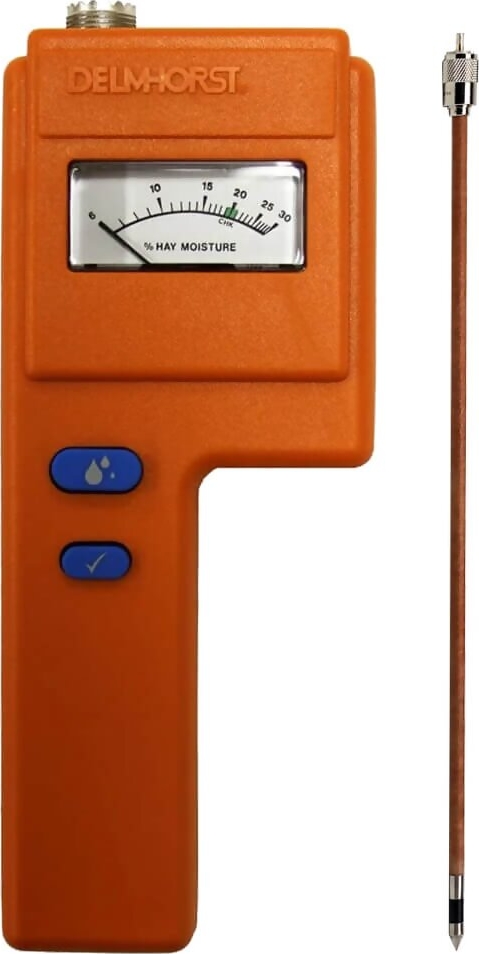

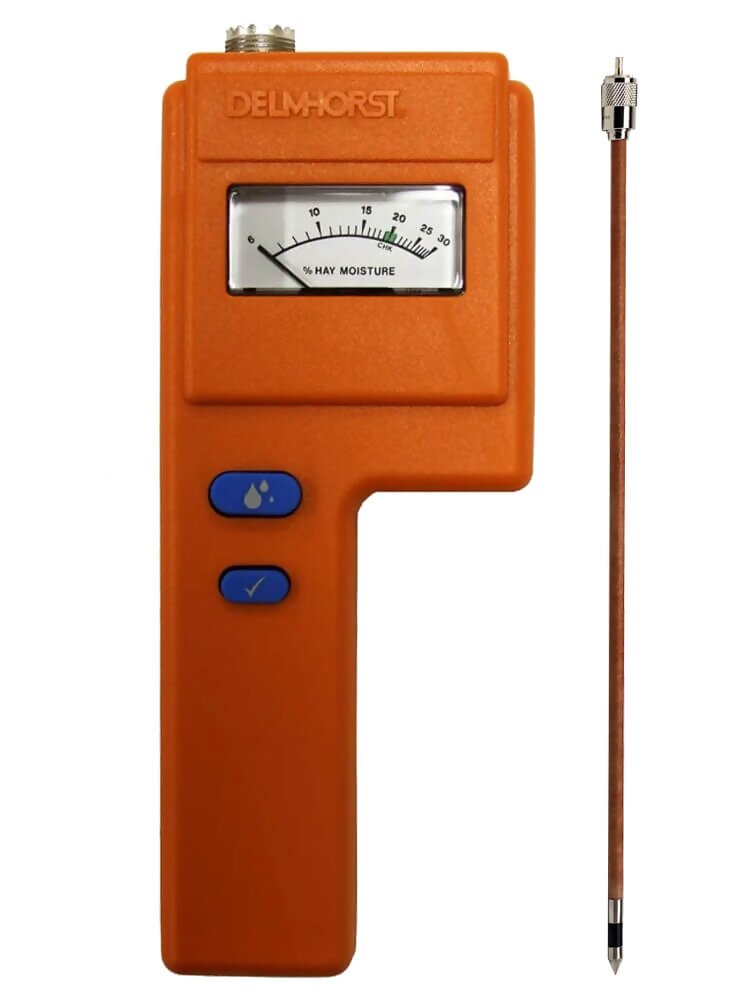

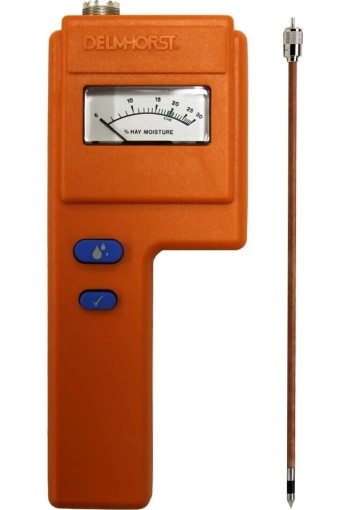

Delmhorst F-6/6-30/1235 Analog Moisture Meter for Hay, 10-inch Value Package

See More Moisture Meters for Hay

Delmhorst F-6/6-30 Analog Moisture Meter for Hay

Easy-to-read analog display.

Moisture Range: 6%-30% on hay.

Also available with 13%-40% MC range as F-6.

With simplified controls, the Delmhorst F-6/6-30 Analog Moisture Meter for Hay is a great entry-level meter for value-minded hay producers. The Delmhorst F-6/6-30 moisture meter is also a favorite among those serving the export markets that require lower MC range readings.

line
Kit Contents
line

Delmhorst F-6/6-30 Analog Moisture Meter for Hay
1235 10” Probe for testing standard bales
Instructions
CARRYING CASE NOT INCLUDED

line
Features
line

Easy-to-read analog display.
Moisture Range: 6%-30% on hay.
Also available with 13%-40% MC range as F-6.
Built-in calibration check.
Size: 8” x 3” x 1 5/8”.
Weight: 10 oz.
Rugged construction ensures years of reliable use.
Optional sturdy plastic carrying case.
9V battery.
1-year warranty

line
Accessories
line

324CAS-0065 Carrying Case

This carrying case may be purchased as a part of one of our deluxe moisture meter packages, and fits all prods except the 1986 bale sensor, 830-3 prod, and 830-4 prod. Can also be purchased separately.

line

MCS-4

This moisture content standard is great for verifying that your F-series hay moisture meter is in calibration. With two electrical resistance values (16% and 22%) to test your meter against, you can be sure that your readings will stand up to the strictest standards of accuracy. The MCS-4 is also available with a letter of certification traceable to NIST

line
Eletrodes
line

Delmhorst offers a wide assortment of electrodes known throughout the industry for their durability. All Delmhorst electrodes fit any Delmhorst moisture meter. Below are electrodes that are typically used for this model:

1235

10” prod used for testing standard bales. Attaches directly to the connector on top of the meter. Also available in 18” length as 1235/18.

line

830 Series

Prods for testing standard and high density bales (requires H-4 Handle).

Available as:

830-2 – 10” prod
830-3 – 18” prod
830-4 – 36” prod
830-5 – 12” for hops

line

831 Short Pin Prod

For testing hay in the windrow (requires H-4 Handle).

line

H-4 Handle

Electrode handle that attaches to the built-in connector on the top of any moisture meter. Can be used with the 830 series prods, 831 short pin disc shaped prod, and 832 long pin disc shaped prod. This is useful for large or high density bales of hay or scrap paper. Two handed operation is recommended over using a prod that connects directly to the top of the meter (like our 1235 series) to minimize stress placed on the metercasing.

line
Downloads
line

Delmhorst F-6/6-30 Moisture Meter for Hay - Owner’s Manual

Delmhorst Accessories & Electrodes - Catalog Online

F.A.Q.

What is a Hay Moisture Meter?

A Hay moisture meter is a precision instrument that uses the principle of electrical resistance to determine moisture content in different types of hay.

Why should I use a Delmhorst Hay Moisture Tester?

Moisture content is one of the most important variables — and challenges — the high quality hay producer must face. Baling at proper Moisture levels is critical to the hay grower’s objective — to bale and store hay in a manner to reduce mold development and at the same time preserve leaves, color, and feed value. Using a Delmhorst Hay Moisture Tester is the best way a farmer can be sure that his hay is being baled at the ideal Moisture levels.

How does a Delmhorst Moisture Meter operate?

Delmhorst probe-type meters operate on the principle of electrical resistance, utilizing the relationship between the Moisture content of the material and its conductivity. This relation is possible because Moisture is an effective conductor of electricity and hay acts as an effective insulator. The "reading" is made between the two metal contacts at the tip of the probe.

How do Delmhorst Hay Moisture Meters Work?

Delmhorst Hay moisture meters use the principle of electrical resistance to determine moisture content in different types of hay. Because moisture conducts electricity and dry hay acts as an insulator, wet hay will let electricity through easier than dry hay, resulting in a higher reading.
When a hay moisture meter probe is inserted into hay, the hay acts as an element in an electrical circuit, reading the resistance between two points in the hay prod. The amount of resistance to this current (measured in Ohms) is used by the meter to measure how much moisture is present in the hay.

At what Moisture range can Hay be baled?

Traditionally, the recommended Moisture content for baling hay without a preservative is between 18-20%.If using a preservative, follow the instructions set forth by each particular preservative manufacturer. Smart use of a Moisture Tester in combination with preservatives and drying agents allows hay to be baled at higher than traditionally recommended Moisture levels.In either case, do not attempt to bale hay before it is at an acceptable Moisture level, even when using a preservative.

What methods are commonly used for testing Hay Moisture?

In The Windrow: Collect hay from the windrow and place it in a five or ten gallon container. Apply a multi-pin prod to the hay and press down on the handle. Take a reading. Mix the hay and repeat this procedure no less than three times. Then from the same area of the windrow, select up to five large, slower-drying stems and place one at a time across two adjacent points on the multi-pin prod and take readings. The average of these stem readings should be about two to five points higher than actual Moisture content. Repeat these steps in different parts of the field and pay special attention to the areas where the hay is heaviest. Your decision to start baling should consider the amount of variation found among windrow readings as well as the average stem Moisture.

What affects the meter readings?

Besides Moisture content, factors which affect meter readings most are: Moisture distribution, crop variety, temperature of the hay, crop maturity, sample density, cutting, and the overall climatic conditions present. Cloud cover and high relative humidity result in more variable Moisture readings than a sunny, dry day with light breezes.

How can i know i'm receiving the most accurate results?

Because field conditions can change rapidly, accuracy guidelines must be considered in terms of "ranges", not specific points. Claims of accuracy should be taken with caution, because it is unlikely that such claims can be consistent. Expert evaluations of the same meter may yield different results, mainly dependent on the technician’s sampling procedure, conditioning and uniformity of the samples, difference in crop, and differences in oven test procedure. For optimum results, carefully read the owners manual provided with each meter.

Is there a way to make sure my Delmhorst meter is in calibration?

The primary or electrical calibration of the Delmhorst tester can easily be checked by the built-in calibration checkpoint feature or by using an optional Moisture content standard.

How do I keep a Delmhorst meter in good working condition?

Delmhorst Moisture Meters are well known for their ruggedness and ability to withstand years of rough handling. Like any testing instrument, a little care goes a long way toward trouble-free service: Store the meter in clean, dry place Change batteries and pins as needed Keep the meter and electrode clean by using any biodegradable cleanser sparingly on external parts only.

How Wet or Dry Should My Hay Be?

The answer to this depends on a few things:

Are you preparing to harvest or to bale the hay?
What kind of baler are you using (large square, small square, round)?
How will your hay be stored?

Balers that compact hay tightly, such as the large square and round balers, tend to require drier hay, while balers that don’t compress hay so much can usually take a bit more moisture.

The exact amount may vary, but recommendations from some organizations, such as Alberta Agriculture and Forestry, put safe baling moisture ranges for a dense, 1800-lb. bale at 12-16% moisture content, and small, 60-lb. bales at 18-20% moisture content.

Outside of these %MC ranges, farmers risk either compromising the nutritional value of their hay, or even risking spontaneous combustion.
