Delmhorst FX-20/P02 Digital Moisture Meter For Hay with 324CAS-0112 Case, H-4 Handle, 830-3 18 Prod, 831 Short Pin Prod

Delmhorst FX-20/P02 Digital Moisture Meter For Hay with 324CAS-0112 Case, H-4 Handle, 830-3 18" Prod, 831 Short Pin Prod

See More Moisture Meters for Hay

Large, custom display with auto backlight – easy to ready under all conditions

On-screen readings statistics – High, Low, Average, Standard Deviation, Last 10

Alarm set point - alerts to user-selected MC level

The Delmhorst FX-20 Digital Moisture Meter for Hay is the latest in the new Navigator family of moisture meters from Delmhorst. Uniquely designed for use in the field with a dashboard-like display that is easy to read under most conditions, and large, easy to use navigation buttons.

The Delmhorst FX-20 Hay meter is perfect for large and small volume producers to ensure reliable %MC readings in the windrow or in all size bale packages. Accurate moisture monitoring is essential to reduce mold development, preserve leaves, color and feed value. The FX-20 can be used with various existing Delmhorst hay prods and accessories.

line

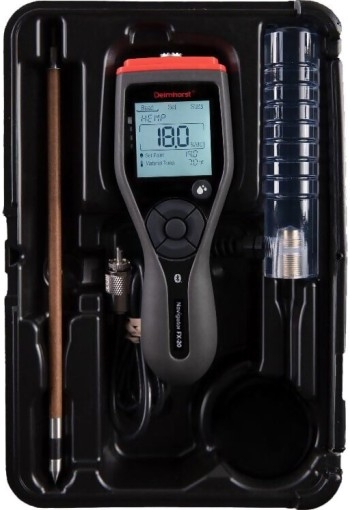

Kit Contents
line

Delmhorst FX-20 Digital Hay Moisture Meter
H -4 handle
830-2 18" prod
831 short pin prod
Power Supply
Instructions
Carrying Case

line
Features
line

Large, custom display with auto backlight – easy to ready under all conditions
On-screen readings statistics – High, Low, Average, Standard Deviation, Last 10
Moisture Range: Hay 6%-40%
Alarm set point - alerts to user-selected MC level
Internal calibration check
“Low Batt” warning with audio
Auto off timer. Set to 1m, 4m or 10m
Compatible with existing Delmhorst prods and electrodes

line
Specifications
line

Power	2x AA batteries
QR code	on meter for easy access to support materials and meter registration
Size	meter only - 8.65in x 2.85in x 1.55in (2.2mm x 72mm x 39mm)
Weight	meter only - 0.4.5oz (1.3g)
Optional hard plastic	carrying case
2-year	limited warranty on manufacturer’s defects. Bonus 3-months extended warranty with on-line registration

line
Accessories
line

1985

The 1985 is a replacement 30ft coaxial cable for the 1986 bale chamber sensor. Also available in 36ft and 40ft lengths as 1985/36 and 1985/40 respectively.

line

1986/EXTENSION

Extends mounting bolts used when installing 1986 bale chamber sensor. Used for newer balers with thick chamber walls.

line

315ACC-0003

This kit includes the power supply cable and mounting hardware necessary to install the FX-2000 in your tractor cab.

line

324CAS-0065 Carrying Case

This carrying case may be purchased as a part of one of our deluxe moisture meter packages, and fits all prods except the 1986 bale sensor, 830-3 prod, and 830-4 prod. Can also be purchased separately.

line

MCS-4

This moisture content standard is great for verifying that your F-series hay moisture meter is in calibration. With two electrical resistance values (16% and 22%) to test your meter against, you can be sure that your readings will stand up to the strictest standards of accuracy. The MCS-4 is also available with a letter of certification traceable to NIST.

line
Eletrodes
line

Delmhorst offers a wide assortment of electrodes known throughout the industry for their durability. All Delmhorst electrodes fit any Delmhorst moisture meter. Below are electrodes that are typically used for this model:

1235

10” prod used for testing standard bales. Attaches directly to the connector on top of the meter. Also available in 18” length as 1235/18.

line

1986 Bale Sensor

For continuous monitoring during baling. Comes with 30’ cable to run from the sensor mounted in the bale chamber to the meter in the cab. May be used with any model, but is recommended to use with Model FX-2000.
Also available as 1986/40 with 40’ cable for larger balers.

line

830 Series

Prods for testing standard and high density bales (requires H-4 Handle). Available as:

830-2 – 10” prod.
830-3 – 18” prod.
830-4 – 36” prod.
830-5 – 12” for hops.

line

831 Short Pin Prod

For testing hay in the windrow (requires H-4 Handle).

line

H-4 Handle

Electrode handle that attaches to the built-in connector on the top of any moisture meter. Can be used with the 830 series prods, 831 short pin disc shaped prod, and 832 long pin disc shaped prod. This is useful for large or high density bales of hay or scrap paper. Two handed operation is recommended over using a prod that connects directly to the top of the meter (like our 1235 series) to minimize stress placed on the meter casing.

line

2110

Split bale chamber sensor for use with Freeman balers

line
Downloads
line

Delmhorst FX-20 Digital Moisture Meter For Hay - Data Sheet

Delmhorst Accessories & Electrodes - Catalog Online

F.A.Q.

What is a Hay Moisture Meter?

A Hay moisture meter is a precision instrument that uses the principle of electrical resistance to determine moisture content in different types of hay.

Why should I use a Delmhorst Hay Moisture Tester?

Moisture content is one of the most important variables — and challenges — the high quality hay producer must face. Baling at proper Moisture levels is critical to the hay grower’s objective — to bale and store hay in a manner to reduce mold development and at the same time preserve leaves, color, and feed value. Using a Delmhorst Hay Moisture Tester is the best way a farmer can be sure that his hay is being baled at the ideal Moisture levels.

How does a Delmhorst Moisture Meter operate?

Delmhorst probe-type meters operate on the principle of electrical resistance, utilizing the relationship between the Moisture content of the material and its conductivity. This relation is possible because Moisture is an effective conductor of electricity and hay acts as an effective insulator. The "reading" is made between the two metal contacts at the tip of the probe.

How do Delmhorst Hay Moisture Meters Work?

Delmhorst Hay moisture meters use the principle of electrical resistance to determine moisture content in different types of hay. Because moisture conducts electricity and dry hay acts as an insulator, wet hay will let electricity through easier than dry hay, resulting in a higher reading.
When a hay moisture meter probe is inserted into hay, the hay acts as an element in an electrical circuit, reading the resistance between two points in the hay prod. The amount of resistance to this current (measured in Ohms) is used by the meter to measure how much moisture is present in the hay.

At what Moisture range can Hay be baled?

Traditionally, the recommended Moisture content for baling hay without a preservative is between 18-20%.If using a preservative, follow the instructions set forth by each particular preservative manufacturer. Smart use of a Moisture Tester in combination with preservatives and drying agents allows hay to be baled at higher than traditionally recommended Moisture levels.In either case, do not attempt to bale hay before it is at an acceptable Moisture level, even when using a preservative.

What methods are commonly used for testing Hay Moisture?

In The Windrow: Collect hay from the windrow and place it in a five or ten gallon container. Apply a multi-pin prod to the hay and press down on the handle. Take a reading. Mix the hay and repeat this procedure no less than three times. Then from the same area of the windrow, select up to five large, slower-drying stems and place one at a time across two adjacent points on the multi-pin prod and take readings. The average of these stem readings should be about two to five points higher than actual Moisture content. Repeat these steps in different parts of the field and pay special attention to the areas where the hay is heaviest. Your decision to start baling should consider the amount of variation found among windrow readings as well as the average stem Moisture.

What affects the meter readings?

Besides Moisture content, factors which affect meter readings most are: Moisture distribution, crop variety, temperature of the hay, crop maturity, sample density, cutting, and the overall climatic conditions present. Cloud cover and high relative humidity result in more variable Moisture readings than a sunny, dry day with light breezes.

How can i know i'm receiving the most accurate results?

Because field conditions can change rapidly, accuracy guidelines must be considered in terms of "ranges", not specific points. Claims of accuracy should be taken with caution, because it is unlikely that such claims can be consistent. Expert evaluations of the same meter may yield different results, mainly dependent on the technician’s sampling procedure, conditioning and uniformity of the samples, difference in crop, and differences in oven test procedure. For optimum results, carefully read the owners manual provided with each meter.

Is there a way to make sure my Delmhorst meter is in calibration?

The primary or electrical calibration of the Delmhorst tester can easily be checked by the built-in calibration checkpoint feature or by using an optional Moisture content standard.

How do I keep a Delmhorst meter in good working condition?

Delmhorst Moisture Meters are well known for their ruggedness and ability to withstand years of rough handling. Like any testing instrument, a little care goes a long way toward trouble-free service: Store the meter in clean, dry place Change batteries and pins as needed Keep the meter and electrode clean by using any biodegradable cleanser sparingly on external parts only.

How Wet or Dry Should My Hay Be?

The answer to this depends on a few things:

Are you preparing to harvest or to bale the hay?
What kind of baler are you using (large square, small square, round)?
How will your hay be stored?

Balers that compact hay tightly, such as the large square and round balers, tend to require drier hay, while balers that don’t compress hay so much can usually take a bit more moisture.

The exact amount may vary, but recommendations from some organizations, such as Alberta Agriculture and Forestry, put safe baling moisture ranges for a dense, 1800-lb. bale at 12-16% moisture content, and small, 60-lb. bales at 18-20% moisture content.

Outside of these %MC ranges, farmers risk either compromising the nutritional value of their hay, or even risking spontaneous combustion.

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE
Delmhorst FX-20/P02 Digital Moisture Meter For Hay with 324CAS-0112 Case, H-4 Handle, 830-3 18" Prod, 831 Short Pin Prod	$535.00
Delmhorst 1985 Replacement 30ft coaxial cable for the 1986 bale chamber sensor	$102.00
Delmhorst 1985/36 Replacement 36ft coaxial cable for the 1986 bale chamber sensor	$102.00
Delmhorst 1985/40 Replacement 40ft coaxial cable for the 1986 bale chamber sensor	$102.00
Delmhorst 1986/EXTENSION Extends mounting bolts used when installing 1986 bale chamber sensor. Used for newer balers with thick chamber walls	$42.00
Delmhorst 315ACC-0003 kit - Includes the power supply cable and mounting hardware necessary to install the FX in your tractor cab.	$90.00
Delmhorst 324CAS-0112 Carrying Case for FX / BDX / JX / HTX / JTL / PX meters	$36.00
Delmhorst MCS-5 Calibration Standard for hay meters, 10% and 20%	$54.00
Delmhorst 1235/10” Prod used for testing standard bales. Attaches directly to the connector on top of the meter.	$106.00
Delmhorst 1235/18 18” Prod used for testing standard bales. Attaches directly to the connector on top of the meter.	$106.00
Delmhorst 1986 30" Bale Sensor For continuous monitoring during baling. Comes with 30" cable to run from the sensor mounted in the bale chamber to the meter in the cab. May be used with any model, but is recommended to use with Model FX-2000.	$161.00
Delmhorst 1986 40" Bale Sensor For continuous monitoring during baling. Comes with 40" cable to run from the sensor mounted in the bale chamber to the meter in the cab. May be used with any model, but is recommended to use with Model FX-2000.	$161.00
Delmhorst 830-2 10” Prods for testing standard and high density bales (requires H-4 Handle)	$81.00
Delmhorst 830-3 18” Prods for testing standard and high density bales (requires H-4 Handle)	$88.00
Delmhorst 830-4 36” Prods for testing standard and high density bales (requires H-4 Handle)	$108.00
Delmhorst 830-5 12” Prods for testing standard and high density bales (requires H-4 Handle)	$99.00
Delmhorst 831 Short Pin Prod For testing hay in the windrow (requires H-4 Handle)	$57.00
Delmhorst H-4 Handle Electrode handle that attaches to the built-in connector on the top of any moisture meter	$96.00
Delmhorst 2110 Split bale chamber sensor for use with Freeman balers.	$161.00
