The next generation of moisture meters is here, with the introduction of the Navigator™

---

Series and EDGE ™app from Delmhorst

---

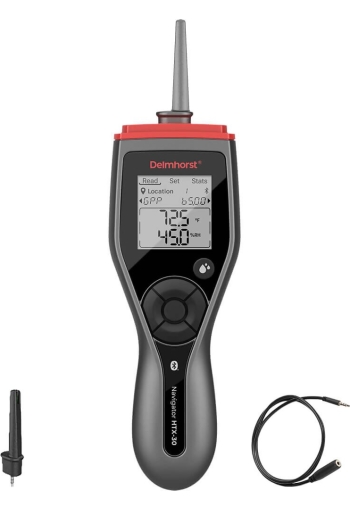

The Delmhorst HTX-30 All-Purpose Thermo-Hygrometer is the latest product from the Delmhorst® Navigator® meter family. The hand-held Delmhorst HTX-30 All-Purpose Thermo-Hygrometer has a quick response time, simple interface and provides useful statistics, making it the ideal tool for measuring air conditions in water damage restoration, building inspections, flooring installations and many other industrial and research applications.

The Delmhorst HTX-30 All-Purpose Thermo-Hygrometer measures Temperature and Relative Humidity. The meter calculates Vapor Pressure, Dewpoint, and Mixing Ratio. Through Bluetooth® Low Energy technology, the Delmhorst HTX-30 All-Purpose Thermo-Hygrometer can connect to the EDGE™ app and share saved readings for further analysis. The EDGE™ app gives users the option to add names to each location and designate them as a location/room or dehumidifier. Additionally, users will be able to add notes to individual readings, view and filter all readings, and export readings to a CSV file. The Delmhorst HTX-30 All-Purpose Thermo-Hygrometer makes the most challenging projects easier, less costly, and more efficient.

Kit Contents

Delmhorst HTX-30 All-Purpose Thermo-Hygrometer Delmhorst RH/T-XE RH/T Sensor Delmhorst RH/T-C2 RH Extension Cable Case

Features

• Delmhorst® EDGE™ app with Bluetooth® connectivity
• Large, dashboard-like custom display with auto backlight – easy to read under all conditions
• 3.5 mm probe connector for easy and durable connection

Measures

• Relative Humidity (%RH)
• Temperature (°F, °C)

Calculates

• Vapor Pressure (PSI, kPa)
• Mixing Ratio (GPP, GPK)
• Dewpoint (°F, °C)

Settings

• Customize Read Screen Measurements
• Bluetooth
• Set Location Number (1-30)
• Display Brightness
• Display Contrast
• Display Backlight
• Display Timeout

Statistics On-screen readings statistics – High, Low, Average, Standard Deviation, view readings

• Statistics can be filtered by location
• Date and time of measurement
• Includes sturdy plastic carrying case
• Includes 1 RH/T probe, and 1 extension cable

Meter

• Powered by 2 x AA batteries
• QR code on meter for easy access to support materials
• Size: meter only - 8.6in (220mm) x 2.9in (74MM) x 1.6in (41mm); in carry case - 10.5in (266.7mm) x 7.0in (177.8mm) x 2.5in (64mm)
• Weight: meter only - (with batteries): 7.3oz (207g); in carry case weight: 13.6oz (386g)
• Hard plastic carrying case - included
• 2-year warranty on manufacturer defects. Bonus extend warranty with meter with on-line registration

Accessories

Delmhorst RH/T-XE Extended Probe Detachable, extended length sensor (2.5 in) for measuring Relative Humidity and Temperature. Useful for determining the psychrometric conditions in the output of dehumidifiers or other recessed areas. Connects via 3.5mm TRRS cable for easy and durable connection. Order individually or in packs of 5.

Delmhorst RH/T-C2 Extension Cable 3 foot long extension cable that connects the HTX-30 to the Short Probe or Long Probe, allowing users to view their meter screen while taking measurements in hard-to-reach areas
