Large, custom display with auto backlight – easy to ready under all conditions
MC Range – 6%-60% Wood (Douglas Fir)
Species – 100 plus 123 additional available

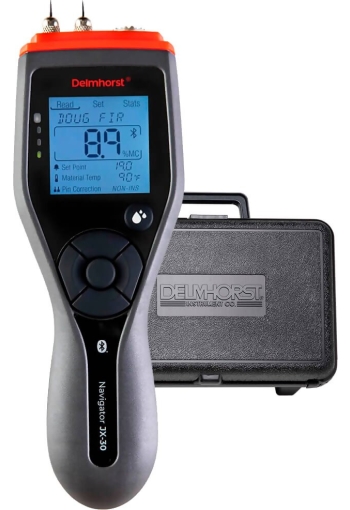

The Delmhorst JX-30 Moisture Meters is the latest meters in the new Navigator family! Bringing lumber/woodworking, flooring professionals and inspectors two more professional-grade, accurate and versatile tools to address moisture issues and perform your job with complete confidence. The JX-30 features the Delmhorst EDGE™ App with expanded wood species, customizable settings, and the ability to share data from any location.
Kit Contents
Delmhorst JX-30W/CS Moisture Meters- Delmhorst JX-30 Moisture Meters
- Carrying Case
| |
Features
- Large, custom display with auto backlight – easy to ready under all conditions
- MC Range – 6%-60% Wood (Douglas Fir)
- Species – 100 plus 123 additional available
- Wood temperature correction (°F/°C)
- Pins/electrode correction (insulated or non-insulated)
- Alarm set point - alerts to user-selected MC level
- On-screen readings statistics – High, Low, Average, Standard Deviation, Last 10
- Internal calibration check
- “Low Batt” warning with audio
- Auto off timer. Set to 1m, 4m or 10m
- Integral contact pins max 5/16” penetration (use 2498/A-100)
- Compatible with any Delmhorst external electrode.
- Color-coded LED’s – adjustable through EDGE ™app
- Power – 2x AA batteries – Alkaline Energizer ( incl)
- QR code on meter for easy access to support materials
- Size: meter only - 8.65in (2.2mm) x 2.85in (72mm) x 1.55in (39mm); in carry case - 9.5in (241mm) x 6.5in (165mm) x 2.5in (64mm)
- Weight: meter only - 0.4.5oz (1.3g); in carry case - 18oz (510g)
- Sturdy plastic carrying case – (incl)
- 2-year warranty on manufacturer’s defects. Bonus extended warranty with on-line registration.
Accessories and Electrodes
Delmhorst 1849 An alternate to the 496 pin for the 26-ES, the 1849 is a 1 ½” insulated pin with 1/2" penetration. The 1849 is suitable for wood up to 2" thick. | |
Delmhorst 2497/A-100 - pack of 24 Uninsulated pin and retainer with 5/16" penetration. Standard on all meters with built-in pins and the 2-E and 4-E electrodes. Used on wood up to 6/4 (1 ½”), concrete and gypsum. | |
Delmhorst 305RET-0021 - pack of 2 Retainer used to hold contact pins in place. Used with #608 and #608/001. Available in packs of 4 as 305RET-0021/4. | |
Delmhorst 632 - pack of 4 Retainer used to hold contact pins in place. Used with #496, #1849, and #A-111 pins. Available in packs of 4 as 632/4. | |
Delmhorst A-111- pack of 24 Another alternative to the 496, the A-111 is an uninsulated contact pin measures 1 7/16” and has 7/16" penetration. The A-111 is compatible with both the 26-ES and the 22-E, and its tapered point makes it easier to penetrate into hard surfaces. Can be used on wood up to 2" thick. | |
Delmhorst HP-1 Makes pilot holes in stucco to reduce pin damage. | |
Delmhorst MCS-1 Moisture content standards are great for verifying that your Delmhorst moisture meter is in calibration. The MCS-1 can be used on any meter with a wood scale. With two electrical resistance values (12% and 22%) to test your meter against, you can be sure that your readings will stand up to the strictest standards of accuracy. The MCS-1 is also available with a letter of certification traceable to NIST. | |
Delmhorst 2-E Fitted with the same 5/16" penetration pins that are mounted on our pin type meters. This electrode is great for a variety of different applications | |
Delmhorst 21-E The 608 pins that come with the 21-E are insulated, except at the tips, and can reach a maximum penetration of 3-1/4".Great for use on roofs, insulation, or EIFS.21-E is also available as the 21-E/001 with 6" penetration, or as the 21-ET with a tapped handle for hard to reach areas. | |
Delmhorst 22-E Comes with A-111 uninsulated contact pins for 7/16" penetration. For use on plaster, masonry and wood. Will also accept 496, insulated pins; 1 1/16” penetration.22-E is also available as the 22-ET with a tapped handle for hard to reach areas | |
Delmhorst 19-E Blade type electrode for measuring of paper on skids. Blades are 5" long. Longer blades available on special order. | |
Delmhorst 2-E/SPLIT Makes moisture testing in hard to reach places a breeze. Simply attach any length metal “probe” to the alligator clips on the end of the 2-E/Split and test behind toe kicks, through drywall, or any other area where our standard length contacts pins aren’t long enough. | |
