Name: Delmhorst NAVPRO/BP Navigator Pro 3-in-1 Moisture Meter, Basic Package
Brand: Delmhorst
SKU: 1833
Price: 1380.00 USD
Availability: InStock

Delmhorst NAVPRO/BP Navigator Pro 3-in-1 Moisture Meter, Basic Package

See More Moisture Meters for Water Damage Restoration

Delmhorst NAVPRO Navigator Pro 3-in-1 Moisture Meter

Simplified menu options in Basic Mode for quick and easy use

Job definition of up to 5 jobs with unique Job ID numbers in Enhanced Mode

Data grouping by specific rooms, with up to 32 rooms per job

Meeting the restoration contractor's demand for detailed, accurate, and accessible information.

The Navigator Pro, Delmhorst’s easy to use 3-in-1 meter, offers pin mode, scan mode, and thermo-hygrometer in a single handheld unit. The Navigator Pro also features advanced job definition that organizes readings of the floor, wall, and ceiling in affected rooms. Stored readings can be downloaded to a spreadsheet on your PC, providing clear, complete documentation of every job. With features you can't find anywhere else, plus Delmhorst's renowned quality and service, the Navigator Pro will guide you from wet to dry!

The Delmhorst NAVPRO Navigator Moisture Meter Pro can be used to check moisture in drywall, insulation, wood, concrete, and plaster. It traces leaks to find exterior moisture and dry rot.

line

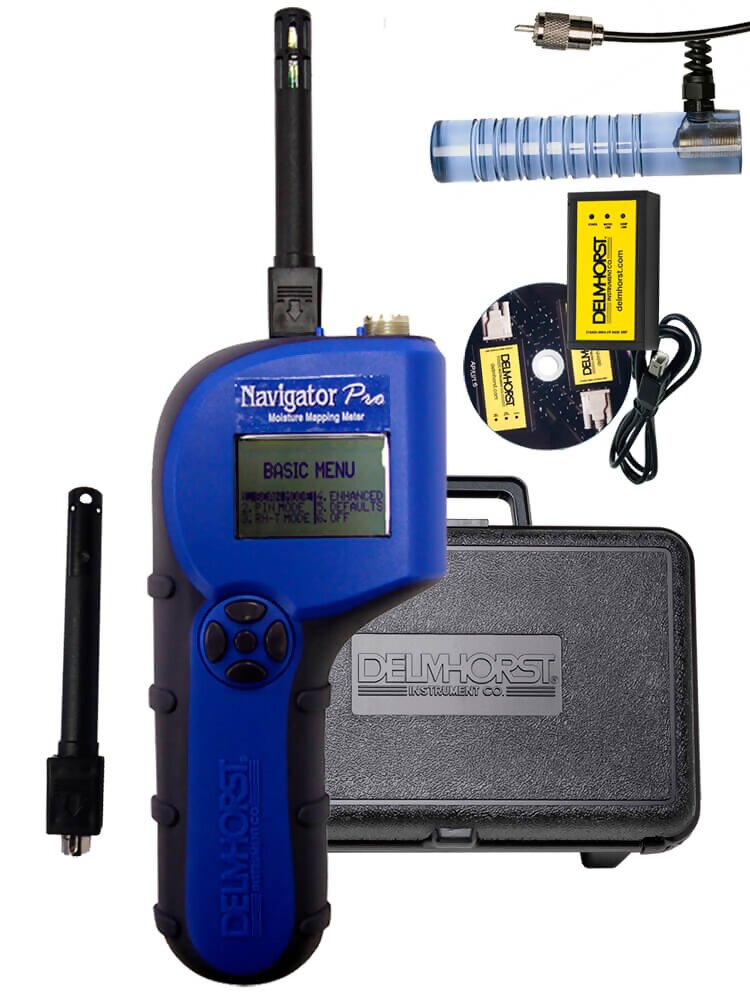

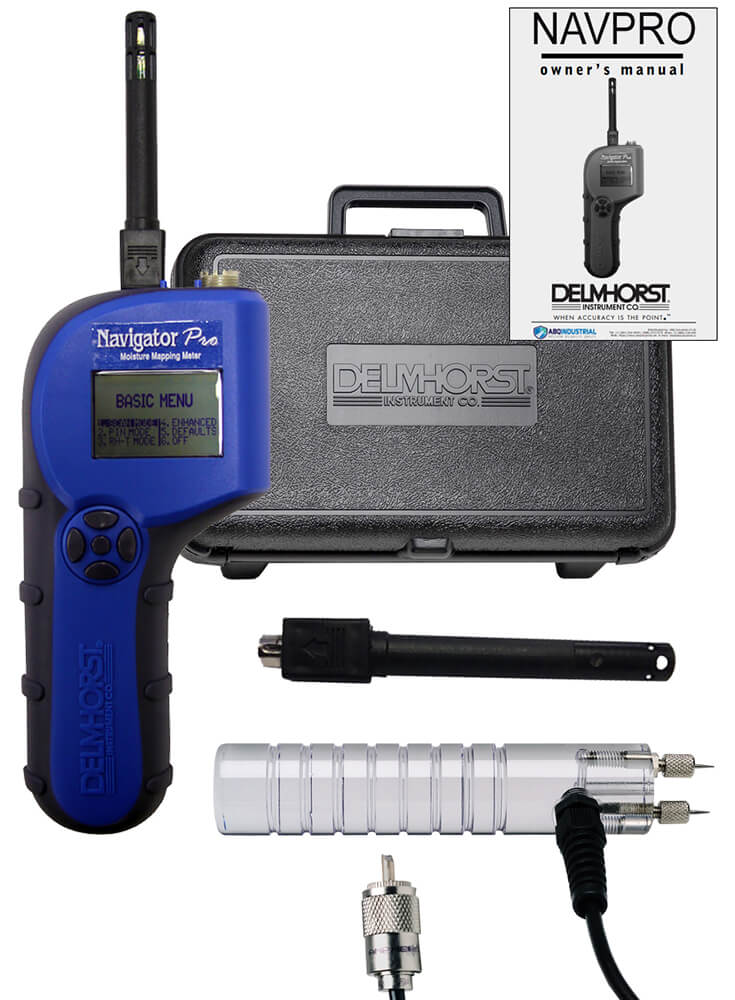

Kit Contents
line

Delmhorst NAVPRO Navigator Pro 3-in-1 Moisture Meter
RHT-S1 Humidity Sensor
2-E Electrode contact pins
PC/KIT Software Application Program
Carrying Case
Instructions

line
Features
line

Simplified menu options in Basic Mode for quick and easy use
Job definition of up to 5 jobs with unique Job ID numbers in Enhanced Mode
Data grouping by specific rooms, with up to 32 rooms per job
Pin mode:
- 5%-60% MC wood scale
- 0-100 numerical reference scale
- 0.1% - 6% drywall scale
Scan Mode: 0-300 numerical reference scale
Thermo-hygrometer:
- Measures temp/RH
- Calculates GPP/dew point
- Fast response time
Store up to 1400 readings with date, time, room, and location stamp
View stored readings on screen
Optional software lets you download readings to your computer and generate Excel reports
Size: 8 ½” x 3 3/8” x 1 ¾”
Weight: 11 oz
Rugged construction ensures years of reliable use
Sturdy plastic carrying case
1-year warranty

line
Accessories & Electrodes
line

2497/A-100

Uninsulated pin and retainer with 5/16" penetration. Standard on all meters with built-in pins and the 2-E and 4-E electrodes. Used on wood up to 6/4 (1 ½”), concrete and gypsum

line

305RET-0021

Retainer used to hold contact pins in place. Used with #608 and #608/001. Available in packs of 4 as 305RET-0021/4.

line

496

496 contact pins are insulated except at the tips, and measure 2" overall with 1 1/8" penetration. Standard on the 26-ES, and can be used to check wood up to 5" thick.

line

608

The 608 insulated contact pins measure 4" overall, and penetrate 3 1/4". Standard on 21-E and 18-ES electrodes, and can be used on roofing, insulation, timber, poles, and EIFS. Also available in 7” length with 6” penetration as 608/001.

line

632

Retainer used to hold contact pins in place. Used with #496, #1849, and #A-111 pins. Available in packs of 4 as 632/4.

line

A-111

Another alternative to the 496, the A-111 is an uninsulated contact pin measures 1 7/16” and has 1/2" penetration. The A-111 is compatible with both the 26-ES and the 22-E, and its tapered point makes it easier to penetrate into hard surfaces. Can be used on wood up to 2" thick.

line

HP-1

Makes pilot holes in stucco to reduce pin damage

line

MCS-1

Moisture content standards are great for verifying that your Delmhorst moisture meter is in calibration. The MCS-1 can be used on any meter with a wood scale. With two electrical resistance values (12% and 22%) to test your meter against, you can be sure that your readings will stand up to the strictest standards of accuracy. The MCS-1 is also available with a letter of certificationtraceable to NIST.

line

PC/KIT

Enables you to download stored readings from the meter to a PC via infrared linking. This software will enable you to:

Export job data to Excel.
Customize printing options.
View readings and stats in the application program.
Save and print individual or group job readings.

Customize job title.
View data in Fahrenheit or Celsius.
Append notes to each job.
Generate graphical histogram.

All these features are provided in a easy to use GUI interface, and are compatible with Windows 95/98/ME/2000/XP/Vista/7/8/10.

The PC/KIT is included in several of our moisture meter packages, or may be ordered separately. It can be used with the Moisture Check, Navigator Pro, RDM-3, RDM-3P, and Total Check moisture meters

line

Relative Humidity Test Kit

The relative humidity test kit is great for testing the accuracy of our detachable RH/T-S1 and RH/T-S3 relative humidity sensors. The air inside the test kit bottle is controlled by a salt solution, which keeps the relative humidity constant. The kit is available with either 33% or 75% relative humidity (Order asRH/TK/33 and RH/TK/75 respectively).

line

RH/T-C1

Extension cable that connects to the RH/T-S3, allowing you to easily view your meter’s screen while performing ASTM F-2170 tests on concrete.

line

RH/T-S1

Detachable relative humidity/temperature sensor that is included with Navigator Pro and HT-4000. Can be used to obtain ambient RH/T readings. Order individually or in packs of 5 as RH/T-S1/5

line

26-ES
The 496 contact pins that come with the 26-ES penetrate 1 1/8” and have insulated shanks so that only the tips are exposed. The pins make contact only at their uncoated tips and provide much more accurate readings of moisture content at various levels of penetration. This feature is useful for a variety of different applications

Flooring installers: Penetrate through flooring to plywood sub-floor, or concrete.
Dry kiln operators: Identify moisture gradients which helps to identify the drying pattern.
Furniture manufacturers and craftsmen: Easily check high density hardwood that short pins are unable to penetrate

Also available as the 26-ED, which includes gauge to measure pin penetration depth

line

21-E

Comes with A-111 uninsulated contact pins for 1 1/2" penetration. For use on plaster, masonry and wood. Will also accept 496, insulated pins; 1 1/16” penetration
22-E is also available as the 22- ET with a tapped handle for hard to reach areas

line

22-E

Comes with A-111 uninsulated contact pins for 1 1/2" penetration. For use on plaster, masonry and wood. Will also accept 496, insulated pins; 1 1/16” penetration
22-E is also available as the 22-ET with a tapped handle for hard to reach areas

line

19-E/STC

Features two 5'' long blades, bent to a 35° angle, and coated in Teflon except for the tips. Great for checking behind trim and baseboard molding

line

2-E/SPLIT

Makes moisture testing in hard to reach places a breeze. Simply attach any length metal “probe” to the alligator clips on the end of the 2-E/Split and test behind toe kicks, through drywall, or any other area where our standard length contacts pins aren’t long enough

line

2-E

Fitted with the same 5/16" penetration pins that are mounted on our pin type meters. This electrode is great for a variety of different applications

Home inspector: use on wood joists and drywall.
Paper producer: use on curved surfaces such as cardboard and paper tubes.
Woodworker: use on timber, poles, and veneer/

2-E is also available as the 2- ET with a tapped handle for hard to reach areas. Can also be fitted with A-103 uninsulated pins with 1 3/32” length and 11/16” penetration.

line
Downloads
line

Delmhorst Navigator Pro Moisture Meters - Instruction Manual

Delmhorst Navigator Pro Moisture Meters - Relative Humidity Sensor

Delmhorst Accessories & Electrodes - Catalog Online

line F.A.Q. line

Why should I use a moisture meter for a water-damaged structure?

The only way to be sure you are properly drying a structure after water damage is to monitor the drying process with a moisture meter. Even if you have the most advanced drying equipment, you cannot be sure they are working effectively without the use of a moisture meter.

How does a moisture meter work?

There are two types of moisture meters typically used in the restoration industry. Pin-type meters, which utilize the principle of electrical resistance, use wood or other hygroscopic materials as an element in a circuit by driving two pins or electrodes into it.

Pinless meters use radio frequency signals to penetrate the material being tested. There is no pin intrusion into the surface of the material you are checking.

What type of meter works best for water-damaged structures?

To quickly identify wet areas in walls and floors, pinless meters are easy to use. They offer the convenience of testing a large area quickly, and help you determine if further testing is required in certain spots.

A pin type meter, on the other hand, is the best way to identify the exact location of water damage behind walls, in sub-floors, or in any other area where moisture may be hidden behind another surface. The key to finding hidden moisture is to use an electrode with insulated contact pins. These pins read only at their un-insulated pin tips, allowing the contractor to drive the pins into material at various depths, noting readings at each level of penetration.

When do I check the moisture of a structure?

As soon as you arrive at a job-site. It is crucial to check moisture levels in both water-damaged areas and areas that were not exposed to water. This enables you to establish a benchmark or target moisture level to reach at the end of the drying process. Use the meter continuously while drying, to confirm the progress of your work, and again before signing off. Remember, without a moisture meter, you have no way of knowing that you have dried the structure properly to "pre-loss" conditions.

What areas of a structure can be monitored using a moisture meter?

Check any area that has been exposed to water damage, namely wood floors, sub-floor, joists, studs or paneling. Also check for moisture in concrete sub-floors, drywall, insulation and behind trim and moldings.

Because Delmhorst moisture meters have different scales to measure %MC in wood, gypsum, and other non-wood building materials, it's easy to check all these areas with one moisture meter.

How can I check moisture levels behind baseboards and trim molding without removing them?

Use our 19-E/ST electrode. The flat blades of this electrode can be slid easily between the wall and trim, making it easy to check these hard to reach places, while leaving everything in tact.

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Delmhorst NAVPRO/BP Navigator Pro 3-in-1 Moisture Meter, Basic Package

$1,380.00

Recommended Accessories

PRICE

Delmhorst 2498/A-100/24 Uninsulated pin and retainer with 5/16" penetration. Standard on all meters with built-in pins and the 2-E and 4-E electrodes. Used on wood up to 6/4 (1 ½”), concrete and gypsum

$65.00

Delmhorst 305RET-0021 Retainer used to hold contact pins in place. Used with #608 and #608/001. Available in packs of 4 as 305RET-0021/4.

$20.00

Delmhorst 496/24 contact pins are insulated except at the tips, and measure 2" overall with 1 1/8" penetration. Standard on the 26-ES, and can be used to check wood up to 5" thick.

$94.00

Delmhorst 496/100 contact pins are insulated except at the tips, and measure 2" overall with 1 1/8" penetration. Standard on the 26-ES, and can be used to check wood up to 5" thick.

$390.00

Delmhorst 608/4 The 608 insulated contact pins measure 4" overall, and penetrate 3 1/4", pack of 4

$72.00

Delmhorst 608/001/4 The 608/001 insulated contact pins measure 7" overall with 6” penetration, pack of 4

$84.00

Delmhorst 632 Retainer used to hold contact pins in place. Used with #496, #1849, and #A-111 pins. Available in packs of 4 as 632/4

$15.00

Delmhorst A-111 Another alternative to the 496, the A-111 is an uninsulated contact pin measures 1 7/16” and has 1/2" penetration. The A-111 is compatible with both the 26-ES and the 22-E, and its tapered point makes it easier to penetrate into hard surfaces. Can be used on wood up to 2" thick.

$45.00

Delmhorst HP-1 Makes pilot holes in stucco to reduce pin damage.

$69.00

Delmhorst MCS-1 Moisture content standards are great for verifying that your Delmhorst moisture meter is in calibration. The MCS-1 can be used on any meter with a wood scale.

$54.00

Delmhorst PC/KIT Enables you to download stored readings from the meter to a PC via infrared linking. All these features are provided in a easy to use GUI interface, and are compatible with Windows 95/98/ME/2000/XP/Vista/7/8/10.

$216.00

Delmhorst RH/TK/33 Relative Humidity Test Kit. The kit is available with either 33% relative humidity

$150.00

Delmhorst RH/TK/75 Relative Humidity Test Kit. The kit is available with either 75% relative humidity

$150.00

Delmhorst RH/T-C1 Extension cable that connects to the RH/T-S3, allowing you to easily view your meter’s screen while performing ASTM F-2170 tests on concrete

$66.00

Delmhorst RH/T-S1 - Detachable Relative Humidity/Temperature Sensor that is included with Navigator Pro and HT-4000

$108.00

Delmhorst 2-E 2-Pin Electrode with 5/16" Penetration Pins

$108.00

Delmhorst 26-ES The 496 contact pins that come with the 26-ES penetrate 1 1/8” and have insulated shanks so that only the tips are exposed.

$180.00

Delmhorst 21-E The 608 pins that come with the 21-E are insulated, except at the tips, and can reach a maximum penetration of 3-1/4".

$135.00

Delmhorst 19-E Blade type electrode for measuring of paper on skids. Blades are 5" long. Longer blades available on special order

$240.00

Delmhorst 2-E/SPLIT Makes moisture testing in hard to reach places a breeze. Simply attach any length metal “probe” to the alligator clips on the end of the 2-E/Split and test behind toe kicks, through drywall, or any other area where our standard length contacts pins aren"t long enough.

$144.00
