Name: Delmhorst RDM-3/DFMW/CS Flock Moisture Meter - Includes Meter, Carrying Case
Brand: Delmhorst
SKU: 1986
Price: 805.00 USD
Availability: InStock

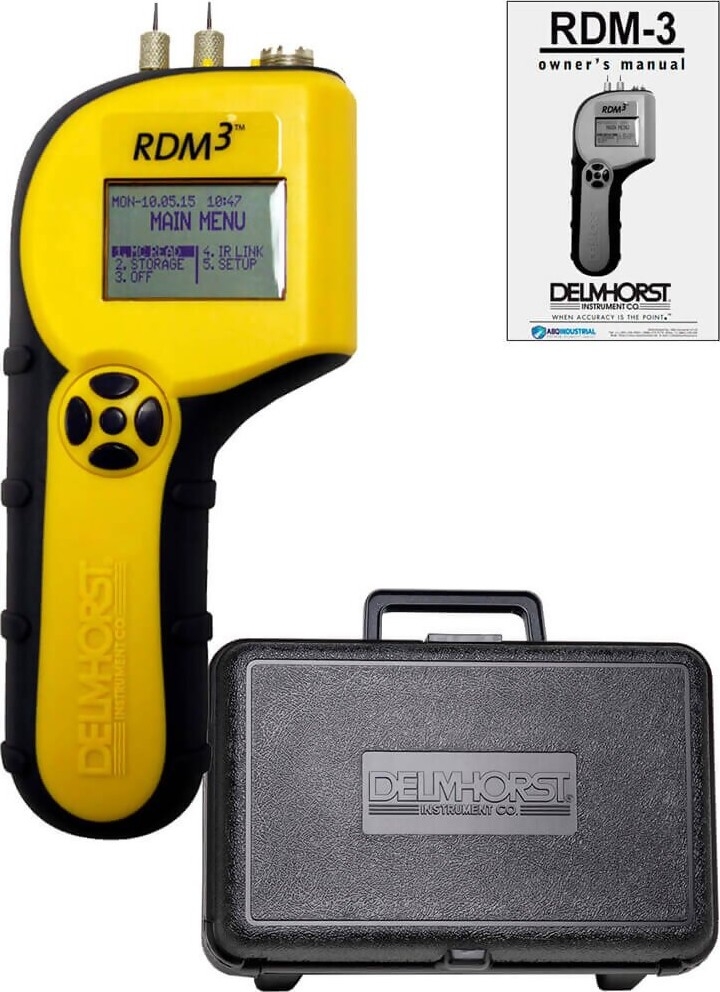

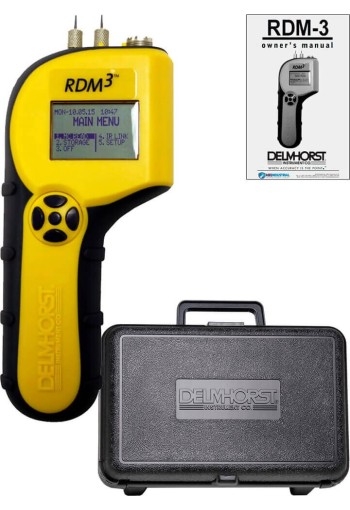

Delmhorst RDM-3/DFMW/CS Flock Moisture Meter - Includes Meter, Carrying Case

See More Moisture Meters for Industrial & Mill

Delmhorst RDM-3 Handheld Pin-Type Wood / Lumber Moisture Meter

Bright, clear digital display

5%-60% wood scale

0.1% MC resolution

The Delmhorst RDM-3 Handheld Pin-Type Wood / Lumber Moisture Meter packed with features, and is perfect for the lumber and woodworking industries. The Delmhorst RDM-3 Handheld Moisture Meter is ideal for anyone who needs to collect and analyze key statistical information.

line
Kit Options
line

Delmhorst RDM-3 Flock Moisture Meter
Carrying Case

line
Features
line

Bright, clear digital display
5%-60% wood scale
0.1% MC resolution
Corrects for 69 individual wood species and temperature (°F and °C)
Integral contact pins mounted on top of meter provide 5/16” penetration
Built-in connector accepts any Delmhorst electrode
Audible, adjustable alarm alerts you when your pre-selected MC has been reached
Auto-shutoff timer saves battery life
Store up to 1400 readings with date and time stamp
View stored readings on screen
Organize readings by job for easy reference
Optional software lets you download readings to your computer and generate Excel reports
Operating Temperature -4°to158°F (-20° - 70°C)
Size: 8 ½” x 3 3/8” x 1 ¾”
Weight: 11 oz
Rugged construction ensures years of reliable use
Sturdy plastic carrying case
9V battery
1-year warranty

line
Accessories and Electrodes
line

Delmhorst 1849

An alternate to the 496 pin for the 26-ES, the 1849 is a 1 ½” insulated pin with 1/2" penetration. The 1849 is suitable for wood up to 2" thick.

line

Delmhorst 2497/A-100

Uninsulated pin and retainer with 5/16" penetration. Standard on all meters with built-in pins and the 2-E and 4-E electrodes. Used on wood up to 6/4 (1 ½”), concrete and gypsum.

line

Delmhorst 632

Retainer used to hold contact pins in place. Used with #496, #1849, and #A-111 pins. Available in packs of 4 as 632/4.

line

Delmhorst 305RET-0021

Retainer used to hold contact pins in place. Used with #608 and #608/001.

line

Delmhorst A-111

Another alternative to the 496, the A-111 is an uninsulated contact pin measures 1 7/16” and has 7/16" penetration.

line

Delmhorst MCS-1

Moisture content standards are great for verifying that your Delmhorst moisture meter is in calibration. The MCS-1 can be used on any meter with a wood scale.

line

Delmhorst PC/KIT/NAV

Enables you to download stored readings from the meter to a PC via infrared linking.

line

Delmhorst 15-E

Pin type, with two rows of four pins each, maximum penetration 1/8". Penetration can be adjusted according to stock thickness by means of gauge block. Used for veneer.

line

Delmhorst 18-ES

Similar to 26-ES, the 18-ES has a 17" steel shaft. Comes with 608 insulated pins for 3 ¼" penetration. Ideal for timber, poles, and ties. Also offered - 18-ED - with depth gauge to measure pin penetration.

line

Delmhorst 22-E

Comes with A-111 uninsulated contact pins for 7/16" penetration. For use on plaster, masonry and wood. Will also accept 496, insulated pins; 1 1/16” penetration.22-E is also available as the 22-ET with a tapped handle for hard to reach areas

line

Delmhorst 2-E

Fitted with the same 5/16" penetration pins that are mounted on our pin type meters. This electrode is great for a variety of different applications. 2-E is also available as the 2- ET with a tapped handle for hard to reach areas. Can also be fitted with A-103 uninsulated pins with 1 3/32” length and 11/16” penetration.

line

Delmhorst 42-E/B

T-handle electrode with 3/8" penetration and 3 ft. length to check moisture in stacks in or out of the kiln. Stickers must be at least 5/8". Also offered in a 4 1/2 ft. length as 42-EB/4-5.

line

Delmhorst 4-E

Comes with 4 uninsulated 2497/A-100 contact pins for 5/16" penetration. Can also be fitted with A-103 uninsulated pins with 1 3/32” length and 11/16” penetration.

line
Downloads
line

Delmhorst RDM-3 Handheld Pin-Type Wood / Lumber Moisture Meter - Owner's Manual

Delmhorst Accessories & Electrodes - Catalog Online

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Delmhorst RDM-3/DFMW/CS Flock Moisture Meter - Includes Meter, Carrying Case

$805.00

Recommended Accessories

PRICE

Delmhorst 1849 /24 An alternate to the 496 pin for the 26-ES, the 1849 is a 1 ½” insulated pin with 1/2" penetration. The 1849 is suitable for wood up to 2" thick.

$97.00

Delmhorst 1849 /100 An alternate to the 496 pin for the 26-ES, the 1849 is a 1 ½” insulated pin with 1/2" penetration. The 1849 is suitable for wood up to 2" thick.

$402.00

Delmhorst 2498/A-100/24 Uninsulated pin and retainer with 5/16" penetration. Standard on all meters with built-in pins and the 2-E and 4-E electrodes. Used on wood up to 6/4 (1 ½”), concrete and gypsum

$67.00

Delmhorst 305RET-0021 Retainer used to hold contact pins in place. Used with #608 and #608/001. Available in packs of 4 as 305RET-0021/4.

$20.00

Delmhorst 496/24 contact pins are insulated except at the tips, and measure 2" overall with 1 1/8" penetration. Standard on the 26-ES, and can be used to check wood up to 5" thick.

$97.00

Delmhorst 496/100 contact pins are insulated except at the tips, and measure 2" overall with 1 1/8" penetration. Standard on the 26-ES, and can be used to check wood up to 5" thick.

$402.00

Delmhorst 608/4 The 608 insulated contact pins measure 4" overall, and penetrate 3 1/4", pack of 4

$77.00

Delmhorst 608/001/4 The 608/001 insulated contact pins measure 7" overall with 6” penetration, pack of 4

$87.00

Delmhorst 632 Retainer used to hold contact pins in place. Used with #496, #1849, and #A-111 pins. Available in packs of 4 as 632/4

$20.00

Delmhorst A-111 Another alternative to the 496, the A-111 is an uninsulated contact pin measures 1 7/16” and has 1/2" penetration. The A-111 is compatible with both the 26-ES and the 22-E, and its tapered point makes it easier to penetrate into hard surfaces. Can be used on wood up to 2" thick.

$78.00

Delmhorst MCS-1 Moisture content standards are great for verifying that your Delmhorst moisture meter is in calibration. The MCS-1 can be used on any meter with a wood scale.

$54.00

Delmhorst 15-E Pin type, with two rows of four pins each, maximum penetration 1/8". Penetration can be adjusted according to stock thickness by means of gauge block

$162.00

Delmhorst 18-ES Similar to 26-ES, the 18-ES has a 17" steel shaft. Comes with 608 insulated pins for 3 1/4" penetration. Ideal for timber, poles, and ties.

$246.00

Delmhorst 22-E Comes with A-111 uninsulated contact pins for 1 1/2" penetration. For use on plaster, masonry and wood. Will also accept 496, insulated pins; 1 1/16” penetration

$114.00

Delmhorst 26-ES The 496 contact pins that come with the 26-ES penetrate 1 1/8” and have insulated shanks so that only the tips are exposed.

$186.00

Delmhorst 2-E 2-Pin Electrode with 5/16" Penetration Pins

$108.00

Delmhorst 42-EB - T-handle electrode with 3/8" penetration and 3 ft. length to check moisture in stacks in or out of the kiln. Stickers must be at least 5/8"

$282.00

Delmhorst 42-EB/4-5 - T-handle electrode with 3/8" penetration and 3 ft. length to check moisture in stacks in or out of the kiln. Stickers must be at least 5/8"

$336.00

Delmhorst 4-E Comes with 4 uninsulated 2497/A-100 contact pins for 5/16" penetration

$118.00

Delmhorst RDM-3/DFMW/CS Flock Moisture Meter - Includes Meter, Carrying Case
