Hans-Schmidt DHT-3 Digital Textile Moisture Meter with 414 and 418 Electrodes

See More Textile Moisture Meters

Hans-Schmidt DHT-3 Digital Textile Moisture Meter with 414 and 418 Electrodes

See More Textile Moisture Meters
Price:
$1,810.00
  • Hassle Free 30-Day Returns
  • Availability: In Stock Usually ships within 1-2 business days
  • FREE - Standard Ground 3-5 Business Days View Faster Delivery Options
warrenty

Product Description
Hans-Schmidt DHT-3 Digital Textile Moisture Meter

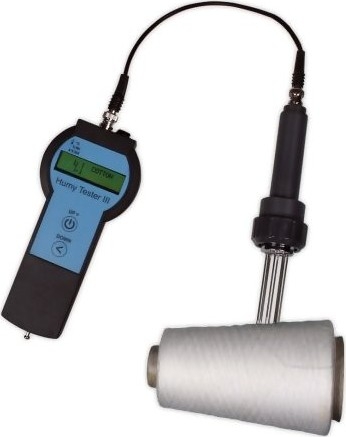

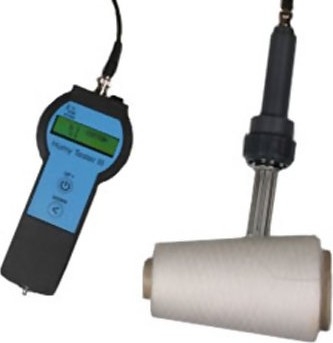

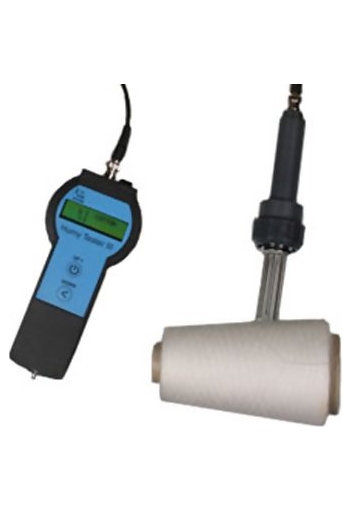

DHT-3 Digital Textile Moisture Meter supplied with probe holder, connection cable in carrying case, needle probes 414 & 418.
17 stored measurement scales

The Hans-Schmidt DHT-3 Digital Textile Moisture Meter instantaneously measures the moisture content in fibers, yarns and bales of raw, synthetic or mixed textile material.

17 stored measurement scales for the following materials: wool, rayon, cotton, linen, nylon, acrylic, polyester, 50 % wool - 50 %cotton, 60 % cotton - 40 % PES, 70 % pac - 30 % wool, 67% pac - 33 % cotton, 70 % PES - 30 % wool, 70 % pes - 30 %r ayon, 67 % PES - 33 % cotton, 50 % PES - 50 % cotton, 50 % PES - 50 % rayon, 50 % pes - 50 % pac

The DHT-3 Moisture Meter is supplied with probe holder, connection cable in carrying case, needle probes 414 & 418.

Measuring principle:

The moisture content is determined by measuring the electrical conductivity of the material, which always is proportional to the content of the moisture.


line

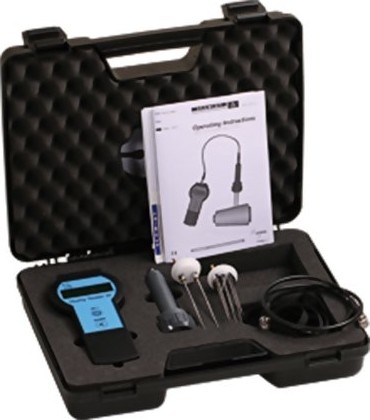

Kit Contents
line

  • DHT-3 Digital Textile Moisture Meter
  • Probe holder
  • Connection cable
  • Probes 414 and 418
  • Carrying case


line
Features
line

  • Instantaneously measures the humidity percentage in fibers, yarns and bales of raw, synthetic or mixed textile material.
  • Easy to use for many applications
  • 17 stored measurement scales
  • Portable, battery-operated
  • 0 -100 scale for comparison tables used for other materials like Polyester, Polyamid and many material mixtures
  • High accuracy and repeatability


line
Specifications
line

Residual moistureDirect reading:
wool, rayon, cotton, hemp, jute, paper, linen, nylon, acrylic, polyester, 50 PES / 50 Zw, 50 PES / 50 PAC, 50 PES / 50 Bw, 67 PES / 33 Bw, 70 PES / 30 Zw, 70 PES / 30 Wo, 67 PAC / 33 Bw, 70 PAC / 30 Wo, 60 Bw / 40 PES, 50 Wo / 50 Zw
Indirect reading:
20 conversion sheets for different materials
Accuracy±1% full scale
Room temperature-30 to 70 °C (optional)
RH %5 to 95 % RH (optional)

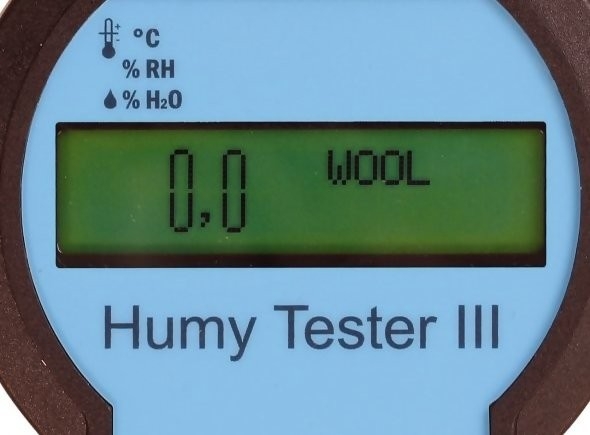

DisplayLCD, resolution 0.1
Reproducibility0.3 %
Power Supply9V battery
Auto Power Off2 minutes
Dimensions200x 95x 40mm (LxWxH)
Weight net (gross)Approx. 258 g (1650 g)


line
Range
line

MaterialMeasuring Range (relative humidity in %) MaterialMeasuring Range (relative humidity in %)
Wool (Wo)8 – 24.550 PES/50 Zw4 – 12.5
Cotton (Bw)2 – 1250 PES/50 PAC0.5 – 1.5
Rayon (Zw)3 – 2350 PES/50Bw1 – 7
Hemp (Ha)2 – 15.567 PES/33 Bw1 – 4.5
Jute (Ju)3 – 21.570 PES/30 Zw1 – 9.5
Paper (Pa)2 – 16.570 PES/30 Wo2 – 6.5
Linen (Li)4 – 14.567 PAC/33 Bw2 – 6
Nylon (PA)1.5 – 670 PAC/30 Wo3 – 8
Acryl (PAC)0.1 – 2.460 Bw/40 PES2 – 9
Polyester (PES)0.5 – 3.550 Wo/50 Zw4 – 24


line
Electrodes
line

50400M - Measuring Cable

  • To connect the holder to the instrument, 1 m length
line

50404M - Electrode Holder

  • For mounting different electrodes, weight 100 g
line

50414M - Needle Electrode, Needle Length 100 mm

  • For measuring yarns, cross-wound bobbins and hanks, 2 needles, needle length 100 mm, weight 40 g
line

50418M - Needle Electrode, Needle Length 60 mm

  • For measuring yarns, cross-wound bobbins and hanks, 8 needles, needle length 60 mm, weight 60 g
line

504 28M - Thermo-Hygrometric Probe

  • Using a second input the Thermo-Hygrometric probe can be connected to the display unit. To display the readings, the correct unit has to be selected using the 2 push buttons on the display unit.
    • Temperature range: -30 up to 70 °C
    • Humidity: 5 up to 95 % RH.
    • 170 mm Length, Weight 60 g
line

50412M - Needle Electrode, Needle Length 300 mm

  • For measuring textiles in sacks and rolls, especially yarn and fabrics, needle length 300 mm, insulated shank 35 mm, weight 150 g
line

50416M - Roller Electrode

  • Roller electrode for measuring running webs of fabrics, 27 mm roller diameter, weight 120 g
line

50426M - Surface Electrode

  • For measuring fabrics, surface diameter 20 mm, weight 56 g
line

50422M - Calibration Electrode

  • Set of 2 different calibration electrodes with fixed moisture values. Needed for verification and readjusting of the instrument


line
