Maximum error: ± .00012" (3 µm)
Measuring Range up to 25% with resolution of 0.1%
Measuring range: .1" (3 mm)
Accuracy of ± .00012" (3 µm)
2 models available:
- DDM-2007 with feeler pressure of 0.7 N
| - DDM-2020 with feeler pressure of 2.0 N
|

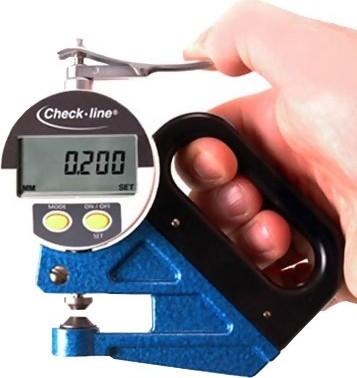

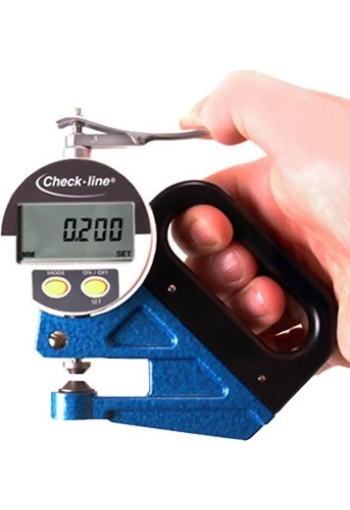

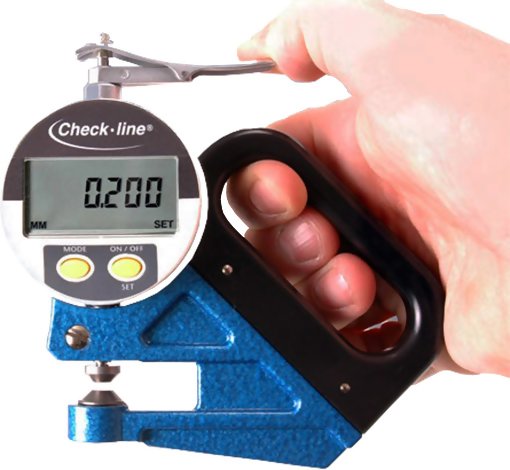

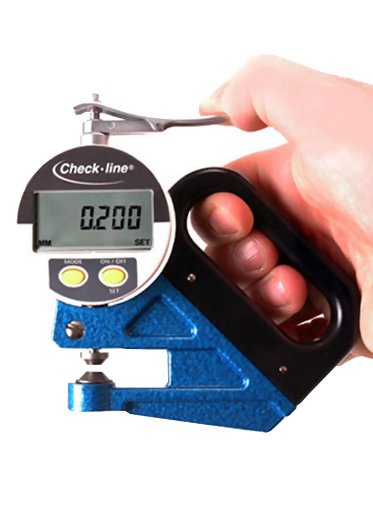

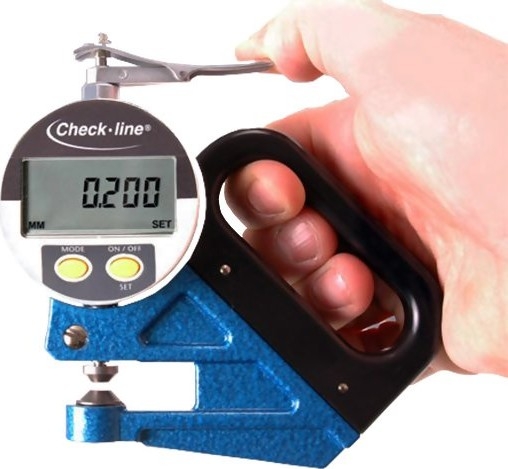

The Checkline DDM-2000 Digital Precision Foil Thickness Gauge is used exclusively to measure the thickness of thin foils. The frame has the required rigidity, the insulation of the handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Gauge.
Features
- Insulated handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Dial Gauge
- Operated by lifting device, self closing, available with 0.7 N or 2.0 N pressure
- Special purpose model with resolution of .00005" (0.001 mm / 1 µm)
- Accuracy of ± .00012" (3 µm)
Specifications
| Resolution | .00005" (0.001 mm / 1 µm) |
| Measuring range | .1" (3 mm) |
| Accuracy | ± .00012" (3 µm) |
| Depth of jaw | 1.18" (30 mm) |
| Feeler Shape | F - 6,35 mm Ø flat |
| Measuring pressure | available with 0.7 N and 2.0 N closing pressure |
| Measurment by spring load | Operated by lifting device - self closing |
| Warranty | 1 year |
Feeler Shape
To order, please indicate the desired feeler, e.g. MDM-820-1 for gauge with feeler > B <. this means that not all feelers are included in the package!< />>
 | Feeler: F
sheet metal, glass, round material |

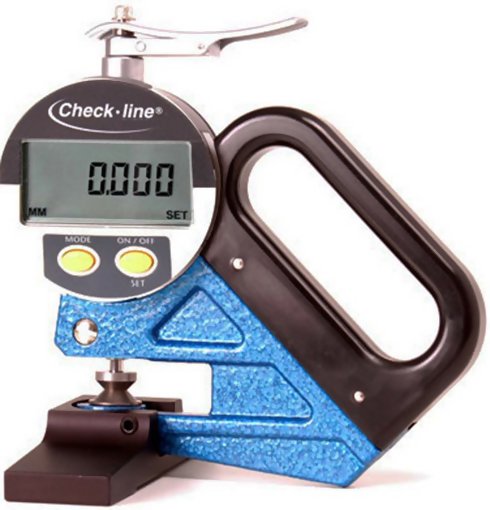

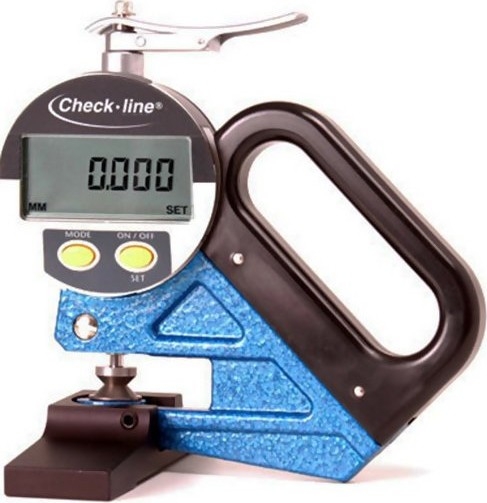

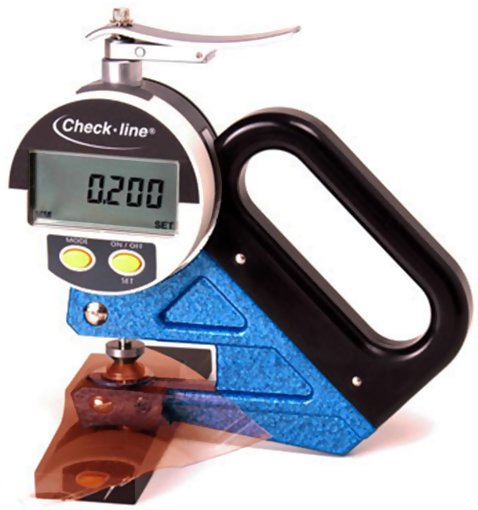

Optional Table Stand
An optional table stand is available to convert a the handheld thickness gauge into a table model.
Simply place the thickness gauge into the table stand and tighten the Hex screws with the included Allen Hex fastener. | |
