Measuring Range: 0 - 0.4 in (0 - 10 mm)
Resolution: 0.0005 in (0.01 mm)
Jaw Depth: 1.97 in (50 mm)

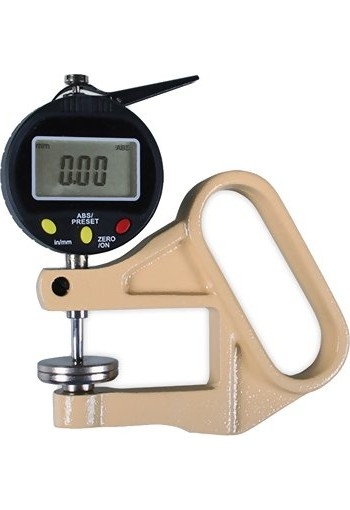

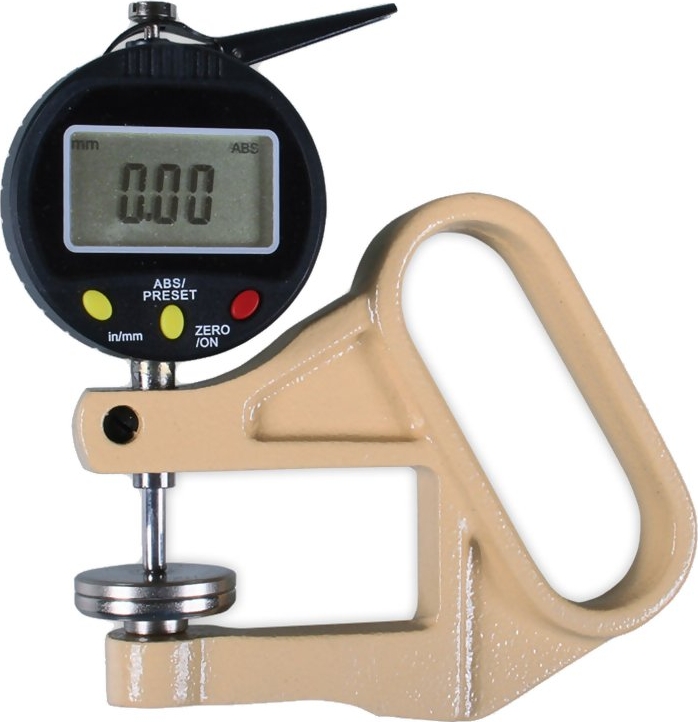

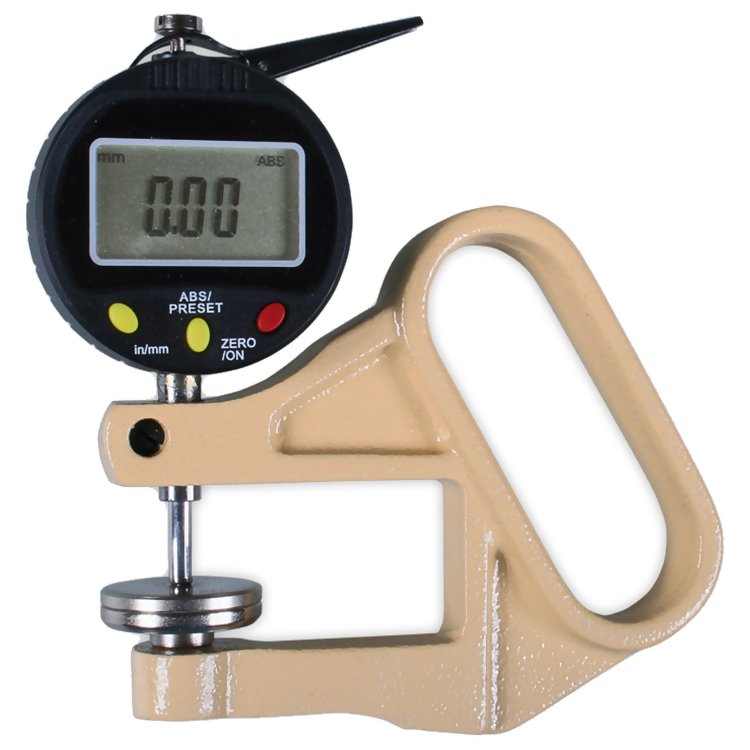

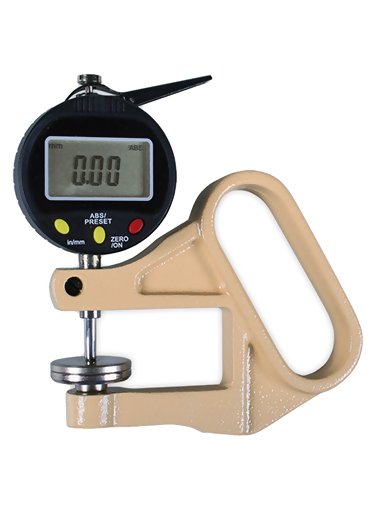

The Checkline DMD-3 Digital Thickness Gauge is used to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. Self closing thickness gauge with high accuracy and resolution.
Kit Contents
- DMD-3 Digital Thickness Gauge
- prtransport packing caseod
Features
- Thickness gauge with RS 232 output for data collection
- Measuring by spring force
- Opening by lifting device (lever) - self closing
- LCD display with user selectable units (mm or inch)
- Zero setting by pushing a button
- Calibration certificate included
Specifications
| Resolution | 0.0005 in (0.01 mm) |
| Measuring range | 0 - 0.4 in (10 mm) |
| Depth of jaw | 1.97 in (50 mm) |
| Measuring pressure | 2 N |
| Measuring principle | Self closing |
| Feeler shape | A/B/C/D/E |
| Display | LCD 4 digit, 8 mm high |
| Measuring system | Sylvac |
| Weight, net (gross) | 300 g (350 g) |
Available Models

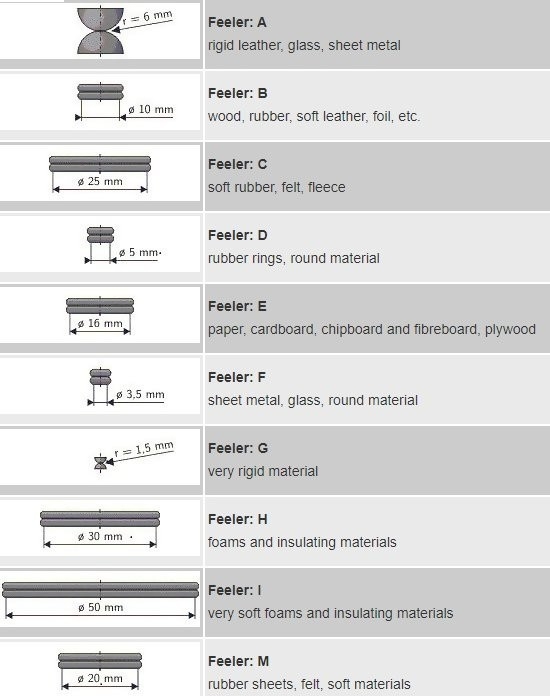

Feeler Shape
To order, please indicate the desired feeler, e.g. DMD-3-B for gauge with feeler > B <. this means that not all feelers are included in the package!< />>
 | Feeler: A
rigid leather, glass, sheet metal |
| Feeler: B
wood, rubber, soft leather, foil, etc. |
| Feeler: C
soft rubber, felt, fleece |
| Feeler: D
rubber rings, round material |
| Feeler: E
paper, cardboard, chipboard and fibreboard, plywood |
| Feeler: F
sheet metal, glass, round material |
| Feeler: G
very rigid material |
| Feeler: H
foams and insulating materials |
| Feeler: I
very soft foams and insulating materials |
| Feeler: M
rubber sheets, felt, soft materials |
