Resolution: 0.001 mm (1 µm)

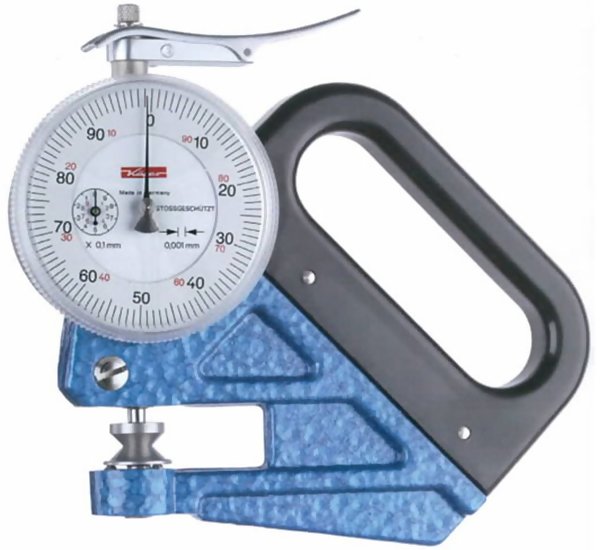

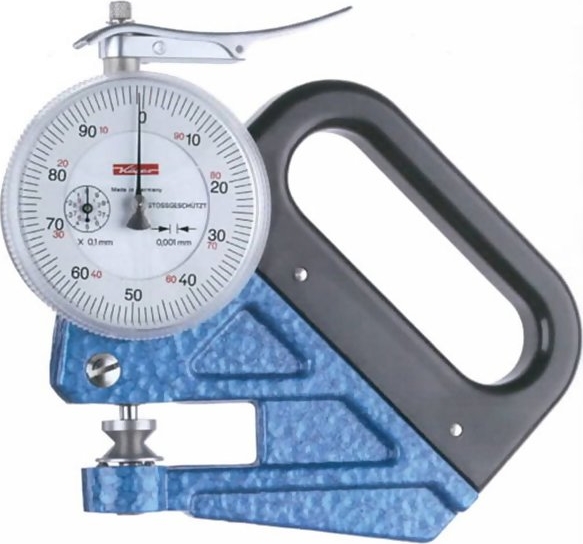

The Checkline F-1101-30 Foil Dial Thickness Gauge is used exclusively to measure the thickness of foils. The frame has the required rigidity, the insulation of the handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Dial Gauge.

One revolution of the pointer equals 0,1 mm. Because of the 100 divisions on the scale the measuring result can be more easily and more accurately read off then on the predecessor model F 1000/30.

The applied pressure is approximately 2 N.

Features

• Special purpose model with resolution of 0.001 mm (1 µm)
• Operating by lifting device - self closing
• Insulated handle prevents transfer of heat from the hand of the user to the sensitive mechanical parts of the Dial Gauge

Specifications

Feeler Shape

Feeler: F sheet metal, glass, round material
