Digital Diameter and Thickness Gauge for Running Lines

---

Measuring Range: 0 - 10 mm / 0 - 0.4 inch

---

Resolution: 0.0001 inch / 0.001 mm

---

2" (50 mm) Jaw Depth

---

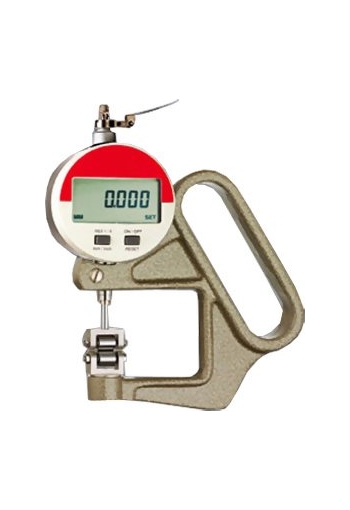

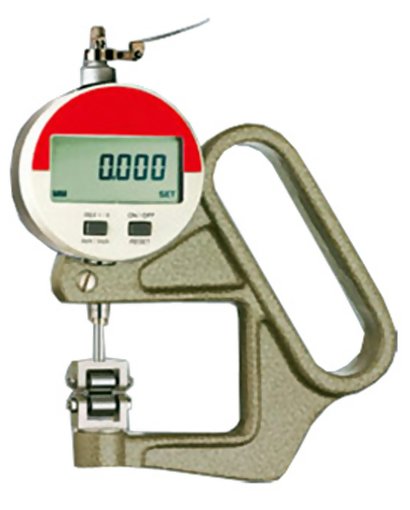

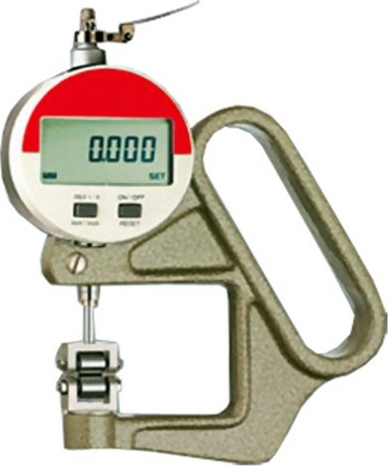

The Checkline FD-50R digital thickness gauge is used for measuring running materials like tapes, wires etc. It has the benefit of an easy to read LCD display, combined with the highest accuracy. The user can select either to display thickness in mm or in inches.

Specifications for Common Applications

---

• For measuring moving objects, roller width 8.7 mm
• Opening by lifting device (lever) - self closing
• USB Data Output (requires optional cable, DCPRMD-USB)
• Measuring by spring force
• Max. Line speed 150 m/min
• For better guiding the measured material the lower roller is standard equipped with flanges, optional available without flange

Tension Ranges

---

Model	FD-50-R	FD-50-RO
Measuring Range	10 mm 0.4 inch	10 mm 0.4 inch
Resolution	0.001 mm 0.0001 inch	0.001 mm 0.0001 inch
Depth of Jaw	50 mm	50 mm
Flange	yes	no
Display	digital	digital

Specifications

---

Resolution	0.001 mm / 0.0001 inch
Measuring range	0 - 10 mm / 0.4 inch
Depth of jaw	2" (50 mm)
Measuring pressure
