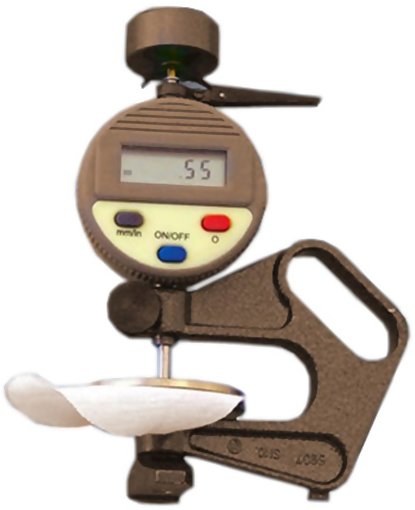

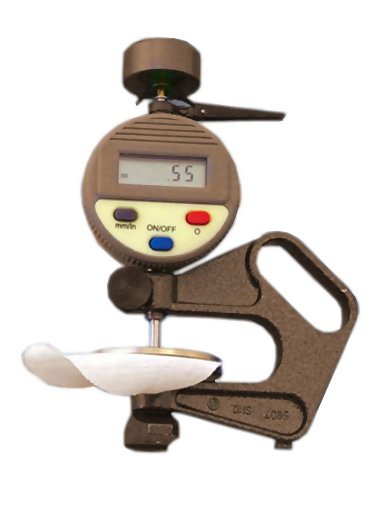

Name: Checkline J-40 Digital Thickness Gauge
Brand: Checkline
SKU: 703

Checkline J-40 Digital Thickness Gauge

See More Dial Thickness Gauges

Measures material thickness of non-woven fabrics, textiles, felts, geomaterials, paper, floor coverings, leather, foils, etc.

Depth of Jaw: 40 mm
Resolution: 0.01 mm / 0.001 inch

The J-40-T thickness gauge can be used to determine the material thickness of non-woven fabrics, textiles, felts, geomaterials, paper, floor coverings, leather, foils, etc. The instrument does not meet the DIN, EN and ISO standards. The feeler shape and the pressure are corresponding to DIN EN ISO 5084 standards. This low-cost thickness gauge is suitable for quick comparison measurements.

line
Features
line

Digital display with selectable units inch or mm

line
Specifications
line

Measuring Range	0 - 10 mm 0 - 25 mm (J-40-T-25MM only)
Resolution	0.01 mm
Depth of Jaws	40 mm
Display	LCD 4 Digit, 8 mm tall
Dimensions	103 x 65 x 145 mm (L x W x H)
Weight	230 g (800 g) - net (gross)

line
Available Models
line

Model	J-40-T	J-40-V	J-40-L
Standard	similar to DIN EN ISO 5084	similar to DIN EN ISO 9073-2	similar to DIN 53326 (new 2589)
Application	tiles and Non-woven textiles	Standard fleece	Leather
Feeler Ø	50.42	56.42	10
Feeler Shape cm²	20	25	0.785
Pressure	1 kPA	0.5 kPA	50 kPA

line
Related Products
line

J-CC

RS-232 Connecting Cable 9 Pin PC Plus For Thickness Gauge

line

D-2000

Precision Material Thickness Gauge

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Checkline J-40-T Digital Thickness Gauge for Textiles and Non- Woven Textiles, Range 0-10 mm, DIN EN ISO 5084 View Model Details

$655.00

Checkline J-40-T-25MM Digital Thickness Gauge for Textiles and Non- Woven Textiles, Range 0-25 mm, DIN EN ISO 5084 View Model Details

$765.00

Checkline J-40-V Digital Thickness Gauge for Standard Fleece, Range 0-10 mm, DIN EN ISO 9073-2 View Model Details

$655.00

Checkline J-40-V-25MM Digital Thickness Gauge for Fleece, 25mm / 1" Range View Model Details

$765.00

Checkline J-40-L Digital Thickness Gauge for Leather, Range 0-10 mm, DIN 53326 (New 2589) View Model Details

$655.00

Checkline J-40-L-25MM Digital Thickness Gauge for Leather, 25mm / 1" Range View Model Details

$765.00

Checkline J-40-D1777-1Digital Thickness Gauge per ASTMD D1777-1 Specs, 10 mm / 0.4" Range View Model Details

$765.00

Checkline J-40-D1777-2 Digital Thickness Gauge per ASTMD D1777-2 Specs, 10 mm / 0.4" Range View Model Details

$765.00

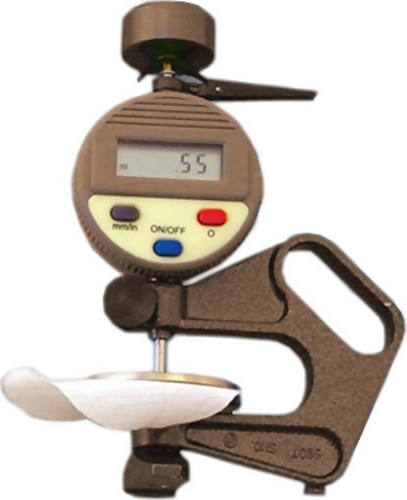

Checkline J-40 Digital Thickness Gauge
