Name: Checkline J50R Series Running Diameter & Dial Thickness Gauges
Brand: Checkline
SKU: 715

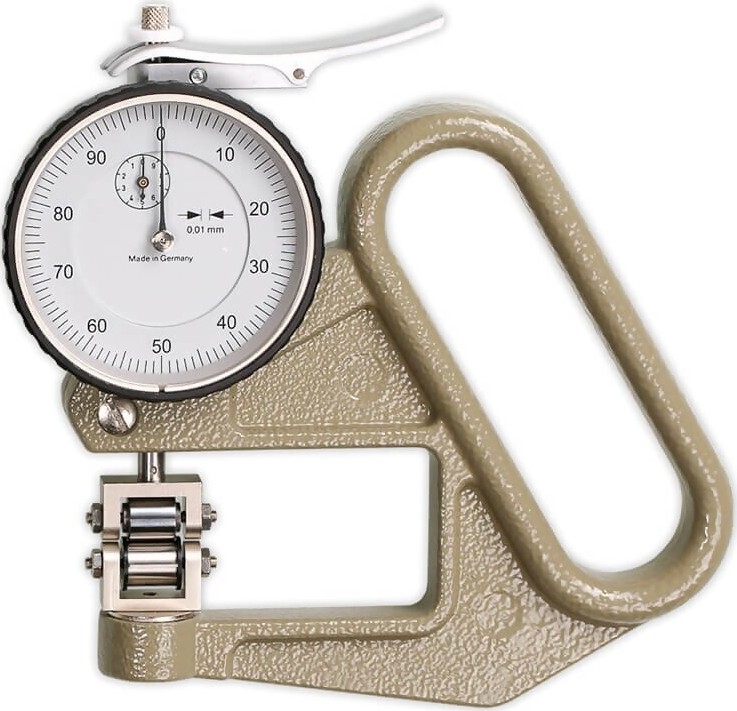

Checkline J50R Series Running Diameter & Dial Thickness Gauges

See More Dial Thickness Gauges

Running Diameter & Thickness Gauges

For measuring the diameter of moving wire, filaments and thickness of ribbon and narrow fabrics

Measuring Range: 0.001" - 0.200" (0.01-5.00mm)

Measuring Ranges: 0 - 0.200” or 0 – 5.00 mm
Resolution: 0.001”, 0.01 mm, 0.005 mm

Ball bearing mounted cylindrical rollers, in lieu of flat anvil surfaces, make these dial micrometers ideal for measuring the diameter or thickness of slowly moving wire, filaments, foil, ribbon, narrow fabrics, etc. – without stopping the manufacturing process.

line
Kit Contents
line

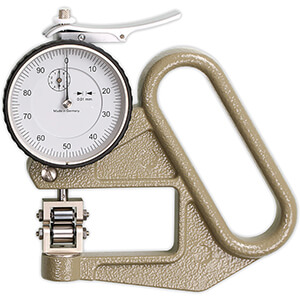

J50R Series Running Diameter & Dial Thickness Gauges
transport packing case

line
Features
line

Precision steel rollers for wire speeds up to 500 ft/min
Lightweight and compact

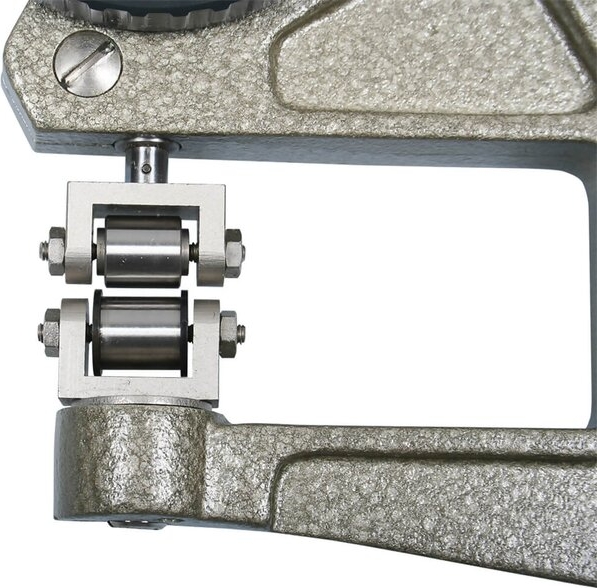

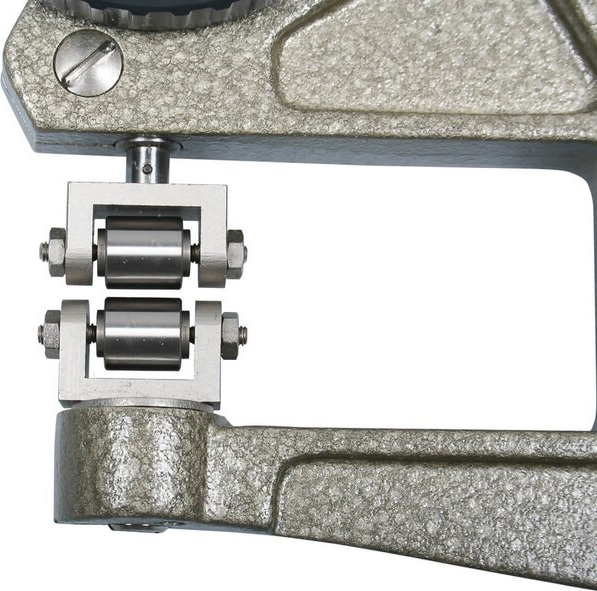

Available with or without roller flanges
Inch or mm versions
Pocket-Sized
Traceable certificate optionally available

line
Specifications
line

Model	Measuring Range Metric	Resolution	Lower Roller Flanges
J50R	0.01 mm - 5.00 mm	0.01 mm	Yes
J50RO	0.01 mm - 5.00 mm	0.01 mm	No
J50RS	0.005 mm - 5.00 mm	0.005 mm	Yes
J50RSO	0.005 mm - 5.00 mm	0.005 mm	No
Model	Measuring Range Inch	Resolution	Lower Roller Flanges
JZ50R	0.001" - 0.200"	0.001"	Yes
JZ50RO	0.001" - 0.200"	0.001"	No
JZ50RS	0.0005-0.2000"	0.0005"	Yes
JZ50RSO	0.0005-0.2000"	0.0005"	Yes

Jaw depth	2 inches (50 mm)
Spring force	3.6 ozf (1 Newton)
Scale diameter	2.25 inches (50 mm)
Roller width	0.34 inches (8.70mm)
Maximum line speed	164 yd/min (150 m/min)

Note: For ribbon and narrow fabric material, use models without flanges.

line
Related Products
line

FD-50R
Digital Thickness Gauge

For measuring moving objects, roller width 8.7 mm
Opening by lifting device (lever) - self closing

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Checkline J50R Running Diameter / Thickness Gauge, Range 0.01-5.00 mm, with Flanges, 0.01 mm resolution (Metric Model) View Model Details

$545.00

Checkline J50RS Running Diameter / Thickness Gauge, 0.005 - 5.000 mm, with Flanges, 0.005 mm resolution (Metric Model) View Model Details

$765.00

Checkline J50RO Running Diameter / Thickness Gauge, Range 0.01-5.00 mm, without Flanges, 0.01 mm resolution (Metric Model) View Model Details

$545.00

Checkline J50RSO Running Diameter / Thickness Gauge, 0.01 - 5.000 mm, without Flanges, 0.005 mm resolution (Metric Model) View Model Details

$765.00

Checkline JZ50R Running Diameter / Thickness Gauge, Range 0.001-0.200", with Flanges, 0.001" resolution (Inch Model) View Model Details

$545.00

Checkline JZ50RS Running Diameter / Thickness Gauge, 0.0005-0.2000", with Flanges, 0.0005" resolution (Inch Model) View Model Details

Discontinued

Checkline JZ50RO Running Diameter / Thickness Gauge, Range 0.001-0.200", without Flanges, 0.001" resolution (Inch Model) View Model Details

$545.00

Checkline JZ50RSO Running Diameter / Thickness Gauge, 0.0005-0.2000", with Flanges, 0.0005" resolution (Inch Model) View Model Details

Discontinued

Recommended Accessories

PRICE

NISTCAL Traceable Calibration Certificate

$120.00
