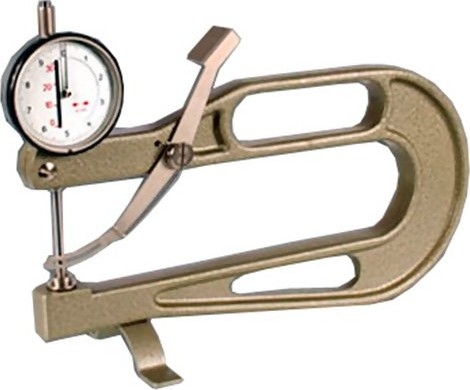

Checkline K-200 Analog Dial Thickness Gauge

See More Dial Thickness Gauges

Checkline K-200 Analog Dial Thickness Gauge

See More Dial Thickness Gauges
Price:
$435.00
    warrenty

    Product Description
    Analog Dial Thickness Gauge
    Measuring Range: 0 - 30 mm / 0 - 1.00 inch
    Resolution: 0.1 mm / 0.001 inch
    Jaw Depth: 200 mm / 7.87 inch

    The Checkline K-200 thickness gauge features an easy to read analog display along with the high accuracy.

    The K-200 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.

    The K-200 is ideal for determining the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc.

    Standard spring Force is 1.8N, however a Reduced Force Version offering 0.9N as well as a Increased Force Version offering 2.5N is available.


    line
    Kit Contents
    line

    • K-200 Analog Dial Thickness Gauge
    • Battery
    • Packing Case


    line
    Features
    line

    • Thickness gauge K-200 features an easy to read analog display along with the high accuracy
    • The thickness gauge is available with 5 different feelers, which can be found below
    • Measuring by spring force
    • Opening by lifting device – self closing thickness gauge K-200 Thickness gauge with lifting device
    • Swing out foot for on-table operation


    line
    Specifications
    line

    Resolution1.00" (KZ models)
    30 mm (K models)
    Measuring Range0.001" (KZ models)
    0.1 mm (K models)
    Depth Of Jaw7.87 in (200 mm)
    Scale Diameter2.3 in (58 mm)
    Measuring Pressure2 N (Optional: 1 N or 4 N)
    Feeler ShapeSelect Feeler "A", "B", "C", "D" or "E"
    Measuring PrincipleSelf closing
    Weight, net (gross)1.5 Lbs (700 g)


    line

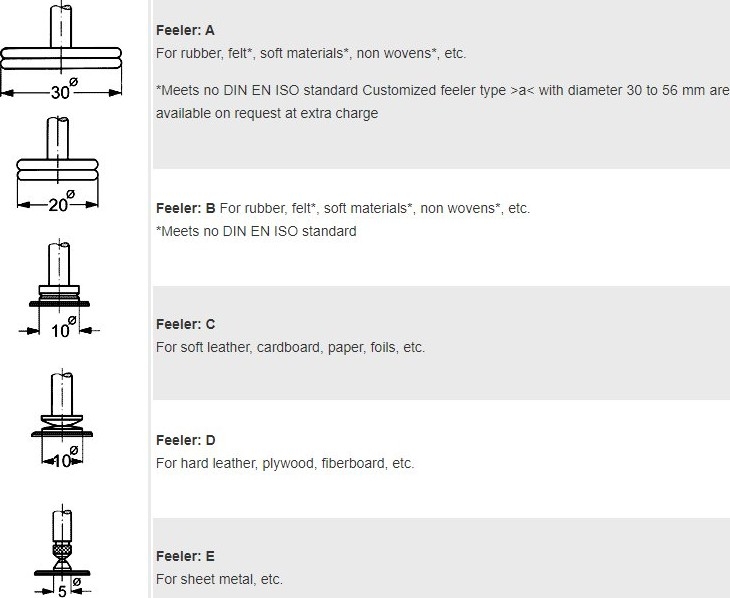

    Feeler Shape
    line

    Feeler: A For rubber, felt*, soft materials*, non wovens*, etc.

    *Meets no DIN EN ISO standard Customized feeler type > a with diameter 30 to 56 mm are available on request at extra charge

    Feeler: B For rubber, felt*, soft materials*, non wovens*, etc.

    *Meets no DIN EN ISO standard

    Feeler: C

    For soft leather, cardboard, paper, foils, etc.

    Feeler: D

    For hard leather, plywood, fiberboard, etc.

    Feeler: E

    For sheet metal, etc.
