Name: Checkline K-300 Analog Dial Thickness Gauge
Brand: Checkline
SKU: 708

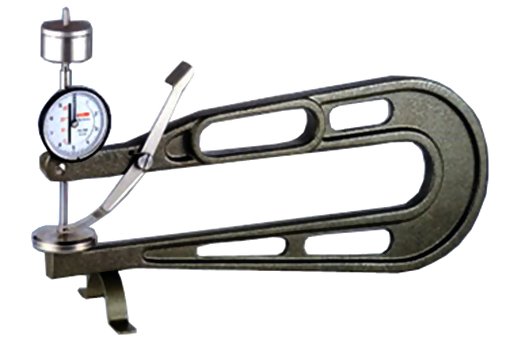

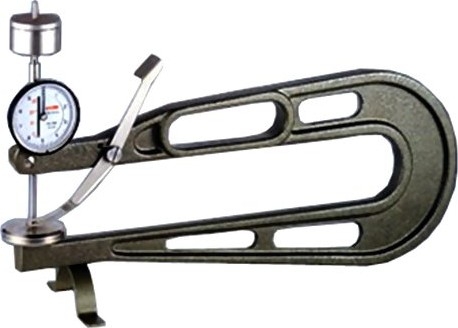

Checkline K-300 Analog Dial Thickness Gauge

See More Dial Thickness Gauges

Measuring Range: 0 - 30 mm / 0 - 1.00 inch

Resolution: 0.005 inch / 0.1 mm

11.80 inch (300 mm) Jaw Depth

The Checkline K-300 thickness gauge features an easy to read analog display along with the high accuracy.

The K-300 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.

line

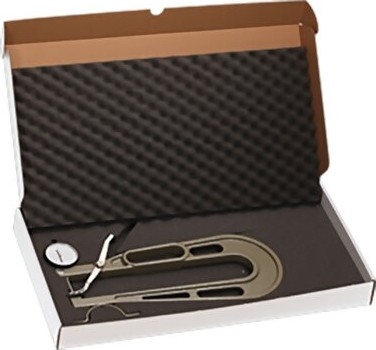

Kit Contents
line

K-300 Analog Dial Thickness Gauge
transport packing case

line
Specifications
line

Range	30 mm (K models) 1.00" (KZ models)
Resolution	0.1 mm (K models) 0.001" (KZ models)
Accuracy	± 0.2% Full Scale
Range per revolution	0.4" (10 mm)
Bezel-Ø	2.3" (58 mm)
Depth of Jaw	11.80" (300 mm)
Feeler Typees	Select Feeler "A", "B", "C", "D" or "E"
Test Pressure	2 N (Optional 1 N or 4 N)
Weight	2.2 Lbs (1 Kg)

line

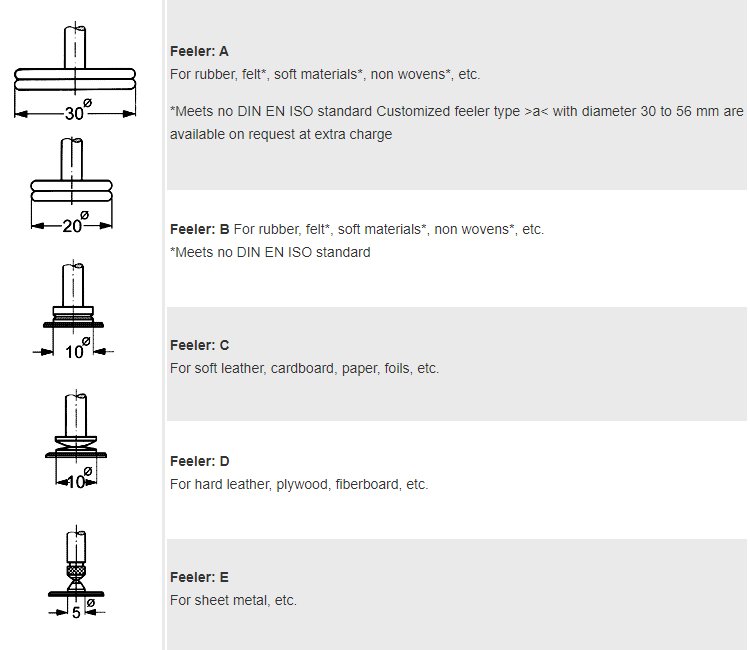

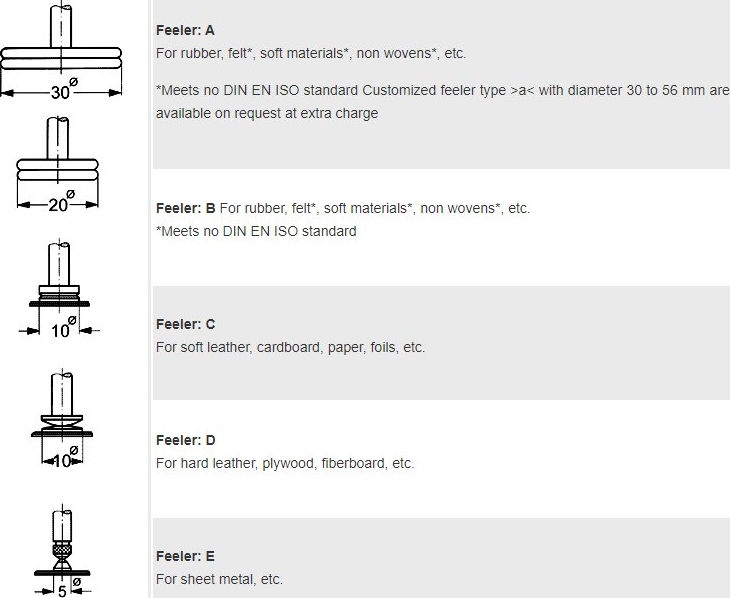

Feeler Shape
line

	Feeler: A For rubber, felt, soft materials, non wovens, etc. Meets no DIN EN ISO standard Customized feeler type >a< with diameter 30 to 56 mm are available on request at extra charge
	Feeler: B For rubber, felt, soft materials, non wovens, etc. Meets no DIN EN ISO standard
	Feeler: C For soft leather, cardboard, paper, foils, etc.
	Feeler: D For hard leather, plywood, fiberboard, etc.

line
Downloads
line

Checkline K-300 Analog Dial Thickness Gauge - Instruction Manual

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Checkline K-300-A Analog Metric Thickness Gauge, Range 0-30mm, Depth of Jaw 300mm, Feeler A for Rubber, Felt, Soft Materials, Non Wovens, etc View Model Details

$402.00

Checkline K-300-B Analog Metric Thickness Gauge, Range 0-30mm, Depth of Jaw 300mm, Feeler B for Rubber, Felt, Soft Materials, Non Wovens, etc. View Model Details

$402.00

Checkline K-300-C Analog Metric Thickness Gauge, Range 0-30mm, Depth of Jaw 300mm, Feeler C for Soft Leather, Cardboard, Paper, Foils, etc. View Model Details

$402.00

Checkline K-300-D Analog Metric Thickness Gauge, Range 0-30mm, Depth of Jaw 300 mm, Feeler D for Hard Leather, Plywood, Fiberboard, etc. View Model Details

$402.00

Checkline K-300-E Analog Metric Thickness Gauge, Range 0-30mm, Depth of Jaw 300 mm, Feeler E for Sheet Metal, etc. View Model Details

$402.00

Checkline K-Z300-A Analog Inch Thickness Gauge, Range 0-1.00", Depth of Jaw 11.80", Feeler A for Rubber, Felt, Soft Materials, Non Wovens, etc. View Model Details

$402.00

Checkline K-Z300-B Analog Inch Thickness Gauge, Range 0-1.00", Depth of Jaw 11.80", Feeler B for Rubber, Felt, Soft Materials, Non Wovens, etc. View Model Details

$402.00

Checkline K-Z300-C Analog Inch Thickness Gauge, Range 0-1.00", Depth of Jaw 11.80", Feeler C for Soft Leather, Cardboard, Paper, Foils, etc. View Model Details

$402.00

Checkline K-Z300-D Analog Inch Thickness Gauge, Range 0-1.00", Depth of Jaw 11.80", Feeler D for Hard Leather, Plywood, Fiberboard, etc. View Model Details

$402.00

Checkline K-Z300-E Analog Inch Thickness Gauge, Range 0-1.00", Depth of Jaw 11.80", Feeler E for Sheet Metal, etc. View Model Details

$402.00

Recommended Accessories

PRICE

NISTCAL Traceable Calibration Certificate

$120.00
