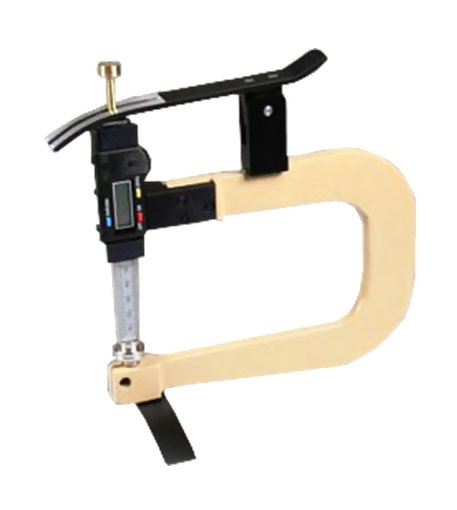

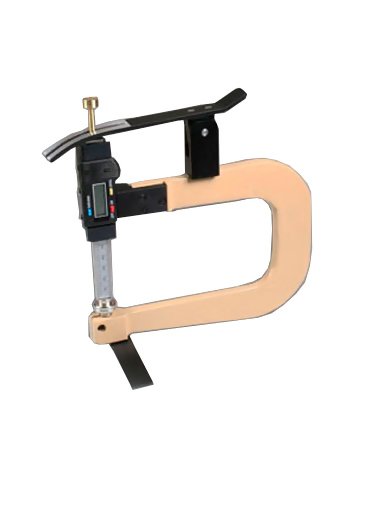

Checkline MDM-815-1 Digital Thickness Gauge

See More Dial Thickness Gauges

This product has been replaced by the MDM-820-1 Digital

The MDM-815-1 has been replaced by the MDM-820-1

For determining the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc

Measuring Range: 2" (50 mm)

Resolution: 0.005" (0.01 mm)

Jaw Depth: 5.90" (150 mm)

Measuring range: 0 - 2 inch (0 - 50 mm)
Resolution: 0.0005 inch (0.01 mm)

Thickness gauge to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc. Self closing thickness gauge with high accuracy and resolution.

line
Features
line

Thickness gauge with RS 232 output for data collection
Measuring by spring force
Opening by lifting device (lever) - self closing
LCD display with user selectable units (mm or inch)
Zero setting by pushing a button
Calibration certificate included

line
Available Models
line

Model	Measuring Range	Resolution	Depth of Jaw
MDM-815-1	2 in (50 mm)	0.005 in (0.01 mm)	5.90 in (150 mm)
MDM-820-1	2 in (50 mm)	0.005 in (0.01 mm)	7.87 in (200 mm)
MDM-830-1	2 in (50 mm)	0.005 in (0.01 mm)	11.81 in (300 mm)
MDM-835	3 in (75 mm)	0.005 in (0.01 mm)	13.78 in (350 mm)
MDM-840	4 in (100 mm)	0.005 in (0.01 mm)	15.75 in (400 mm)

line
Feeler Shape
line

To order, please indicate the desired feeler, e.g. DMD-3-B for gauge with feeler >B<. This means that NOT all feelers are included in the package!

	Feeler: A rigid leather, glass, sheet metal
	Feeler: B wood, rubber, soft leather, foil, etc.
	Feeler: C soft rubber, felt, fleece
	Feeler: D rubber rings, round material
	Feeler: E paper, cardboard, chipboard and fibreboard, plywood
	Feeler: F sheet metal, glass, round material
	Feeler: G very rigid material
	Feeler: H foams and insulating materials
	Feeler: I very soft foams and insulating materials
	Feeler: M rubber sheets, felt, soft materials

line
Complete kit
line

Complete kit includes gauge with transport packing case

complete kit

line
Specifications
line

Resolution	0.0005 in (0.01 mm)
Measuring range	2 in (50 mm)
Depth of jaw	5.90 in (150 mm)
Measuring pressure	2 N
Measuring principle	Self closing
Feeler shape	A/B/C/D/E
Display	LCD 7 mm high
Measuring system	Sylvac
Weight, net (gross)	600 g (650 g)

line

line

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Checkline MDM-815-1 Digital Thickness Gauge

Images & Videos

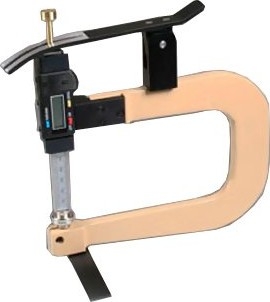

Checkline MDM-815-1 Digital Thickness Gauge
