Material Thickness Gauge
Conveniently performs thickness measurement on rubber, fabrics, foams, tapes/films and a wide assortment of other soft materials
Range: 0-1 inch (0-25 mm)

Range: 1" / 25mm - (Extend Range Using Gauge Blocks)
Resolution: 0.0001" / 0.002mm

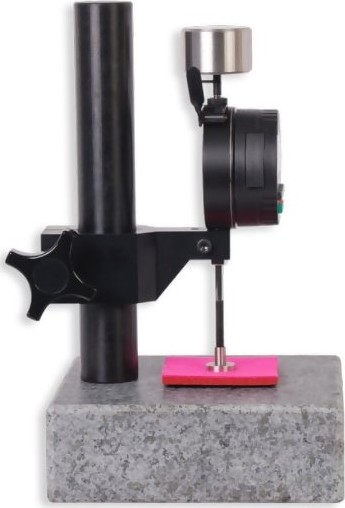

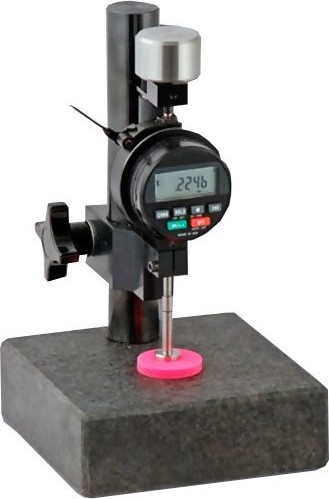

The MTG Material Thickness Gauge For Textiles, Non-Wovens, Fabrics & Soft Materials accurately measures thickness of textiles, non-wovens, technical fabrics and many other materials. Using specific diameter presser foot (feeler) and mass (weight) it can measure according to ASTM D1777, ISO 5084, D1621, D5199, D461, D751-06, D3652, ISO 9863-1, ISO 964-1 (2 kPa only) and many other international testing standards.

The MTG-DX2 System is supplied with a 9.5 mm diameter presser foot and 143 g mass. This configuration is designed to measure according to the ASTM D1777-2 and D751-06 specifications. Optional presser foot diameters and related weights are available and custom sizes can be supplied to accommodate your specifications. Refer to the details below.

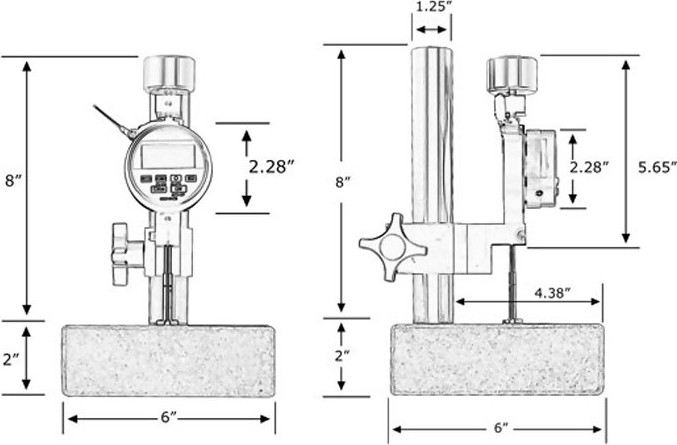

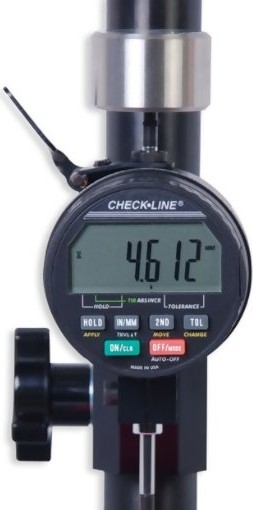

The certified digital indicator includes 3 SPC data output formats, English or Metric display, auto power-off, and a left-hand lifting lever. The indicator is fitted on an 8 inch (200 mm) tall column to allow the indicator to be raised or lowered to accommodate different size test specimens. The 6"x6"x 2" (150 x 160 x 50 mm) laboratory grade certified granite base offers a smooth and extremely hard reference plane for precise and repeatable measurements.

For those requiring data output for recording and quality documentation purposes, a serial output cable and windows-based software program is optionally available.

Custom Weights and Footers can be made to meet a wide range of specifications. Contact us for more info.


line
Features line

  • Includes NIST traceable calibration certification for Digital Indicator and Granite Base
  • Includes wireless feature. (Can be disabled at the factory upon request.)
  • User-selected units of inch or mm providing resolution of 0.0001" (0.002 mm)
  • Hi-Lo Setpoints indicate if sample is within tolerance
  • Custom diameter feet and weights can be supplied to apply the correct pressure (kPa) for your application
  • Optional "swivel" connectors insures optimal alignment with test sample for the highest possible accuracy & repeatability
  • Digital Indicator is battery-powered and Auto Power Off functions.
  • USB Data Output Cable Optionally Available
  • Made and assembled in the USA with 1-Year Warranty
  • Optional Air Dampening feature allows for a repeatable, controlled rate of descent on to sample
  • CE Marked, RoHS Compliant


line
Specifications
line

Measuring Range0-1 inch (0-25 mm), Custom ranges up to 4 inches / 100mm available, inquire
Jaw Depth1-3/4", 44.5mm
Resolution0.0001" (0.002 mm)
Accuracy*± 0.0002" (0.004 mm) *with radius tip, not a flat footer
Repeatability0.0000012"
Presser Foot Material303 Stainless Steel
Base MaterialLabratory Grade Granite
PowerCR2450 Lithium Coin Battery or Power Over USB with Optional Cable
RS232 Output9600 baud, no parity, 8 data bits, 1 stop bit (requires external power)
Operating Temperature40°F to 105°F (5 to 40°C)
Warranty1 Year
Country of OriginUSA
Spindle Thread#4-48 UNF
ToleranceWeight: ± 0.5 grams
Foot Diameter: ± .005"
Maximum Mass1000 grams (1 Kg), max can be added to create desired test pressure
Self-Weight of Spindle20 grams


line
Norms & Applications
line

Common NormsApplicationMTG Accessory
ASTM D1777-1Woven, Knitted and Textured FabricsMTG-D1777-1
ASTM D1777-2 & D751-06Fabrics, Webbings, Tapes, Ribbons, BraidsMTG-D1777-2
ASTM D1777-3Films, Glass Cloths, Glass TapesMTG-D1777-3
ASTM D1777-5Blankets, Pile Fabrics & Napped FabricMTG-D1777-5
ASTM D461FeltMTG-D461
ASTM D3767 Bradnick WarnerTest Fixture Set, for procedures A, A1, and A2MTG-D3767
ASTM D751-06 and D751-19Coated FabricsMTG-D751-06
ASTM D1813LeatherMTG-D1813
DIN EN ISO 5084TextilesMTG-ISO5084
ASTM D5199-AGeosynthetics, Geotextiles and GeomembranesMTG-D5199-A
DIN EN ISO 9073Non-WovensMTG-ISO9073


line
Portable Battery-Powered Printer for Hardcopy Documentation
line

Need a hard copy printout of your measurement results?

Our P-190 Printer with the G03-0086 Cable will allow you to print each reading as it's shown on the display. The user simply depresses the thumb switch each time they want a value transferred to the printer. Simple yet effective!

The battery-powered P-190 Printer uses standard rolls of adding machine paper, unlike thermal printers the printout will not fade over time. It is supplied with a battery charger for operation on all power worldwide.
P-190 Printer
G03-0086 Data Transfer Cable and Thumb Switch


line
Optional Presser Foot (Feeler/Anvil) Offered
line

Presser Foot"A" Dim. (mm)
MTG-01-110.0
MTG-01-28.0
MTG-01-36.3
MTG-01-46.0
MTG-01-55.0
MTG-01-64.0
MTG-01-73.2
MTG-01-816.0
MTG-01-925.0


line
Related Products
line

MTG-RINGS Stackable Ring Weight Set for MTG thickness gauge

  • Stackable Ring Weight Set for the MTG thickness gauge
related

line

DeFelsko Certified Polystyrene Test Block Kits

  • Used to verify the accuracy and operation of any Type 1 (mechanical) and Type 2 (electronic) magnetic, eddy-current or ultrasonic coating thickness gauge
related


line
Downloads
line

MTG Material Thickness Gauge - Data Transfer Specifications
MTG Material Thickness Gauge - Instruction Manual
MTG Material Thickness Gauge - Data Sheet
MTG Material Thickness Gauge - MTG Components
MTG Material Thickness Gauge - Granite Base Sample Calibration Cert
MTG Material Thickness Gauge - Dial Sample Calibration Cert
