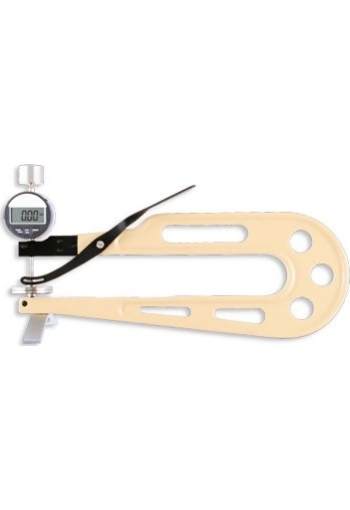

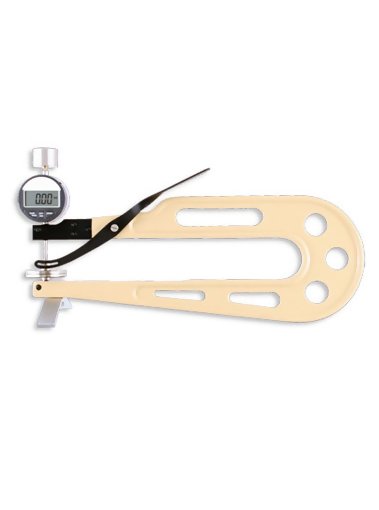

Name: Checkline MTT-10 Digital Textile / Leather Thickness Gauge
Brand: Checkline
SKU: 901

Checkline MTT-10 Digital Textile / Leather Thickness Gauge

See More Dial Thickness Gauges

Measuring Range: 0 - 10 mm (0 - 0.400") option 25MM: 0 - 25 mm (0 - 1.000")

Resolution: 0.01 mm (0.001")

Offered in either 300 mm (12") or 500 mm (20") Jaw Depth for measurement of wide samples

Measures material thickness of non-woven fabrics, textiles, felts, geomaterials, paper, floor coverings, leather, foils, etc.

300 Series for 300mm Jaw Depth (12")
500 Series for 500mm Jaw Depth (20")

Measuring Range: 0 - 10 mm (0 - 0.400") or 0 - 25 mm (0 - 1.000")

Resolution: 0.01 mm (0.001")

The MTT-10 Digital Textile / Leather Thickness Gauge is a digital dial thickness gauge designed for the accurate thickness measurement of non-woven fabrics, textiles, felts, geomaterials, paper, floor coverings, leather, foils, etc. It is offered with two different jaw depths providing clearance to measure wide samples. The combination of feeler diameter and load weight generates a specific pressure as required by many standardized test standards necessary in order to get reliable and repeatable measurements such as fabric, felt, textiles, and similar compressible materials.

The feeler shape and the pressure are corresponding to DIN EN ISO standards, however, this low-cost thickness gauge is suitable for quick comparison measurements and does not strictly conform to the standard.

line
Features
line

Swing-out foot for on-table operation
Digital display with selectable units inch or mm
Measuring feeler 20 cm²
Zero setting by pushing a button

line
Specifications
line

Measuring Range	0 - 10 mm (standard) or 0 - 25 mm (optional)
Resolution	0.01 mm
Accuracy	± 0.02 mm
Depth of Jaws	300 mm (300 Series) 500 mm (500 Series)
Display	LCD 4 Digit, 8 mm tall
Pressure	Refer to table below (gauge, feeler, weight)
Feeler shape	50.5 mm Ø = 20 cm² 56.42 mm Ø = 25 cm²

line
Available Models
line

Type	Standard	Application	Feeler Ø	Feeler shape cm²	Pressure
T	similar to DIN EN ISO 5084	Textiles and Non-woven textiles	50.42	20	1 kPA
V	similar to DIN EN ISO 9073-2	Standard fleece	56.42	25	0.5 kPA
L	similar to DIN EN ISO 2589 / 53326	Leather	10	0.785	50 kPA
G	similar to DIN EN ISO 964-	GeoMaterials	56.42	25	2 kPA

line
Downloads
line

Checkline MTT-10 Digital Textile / Leather Thickness Gauge - Instruction Manual

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Checkline MTT-10-300-T - Digital Thickness Gauge, 0-10mm for TEXTILES & NON-WOVENS with 300 mm Jaw Depth - 10mm Measuring Range, 300mm Jaw Depth, Test Pressure (refer to table above) View Model Details

$710.00

Checkline MTT-10-300-V - Digital Thickness Gauge, 0-10mm for FLEECE with 300 mm Jaw Depth - 10mm Measuring Range, 300mm Jaw Depth, Test Pressure (refer to table above) View Model Details

$710.00

Checkline MTT-10-300-L - Digital Thickness Gauge, 0-10mm for LEATHER with 300 mm Jaw Depth - 10mm Measuring Range, 300mm Jaw Depth, Test Pressure (refer to table above) View Model Details

$710.00

Checkline MTT-10-300-G - Digital Thickness Gauge, 0-10mm for GEO-TEXTILE with 300 mm Jaw Depth - 10mm Measuring Range, 300mm Jaw Depth, Test Pressure (refer to table above) View Model Details

$710.00

Checkline MTT-10-500-T - Digital Thickness Gauge, 0-10mm for TEXTILES NON-WOVENS with 500 mm Jaw Depth - 10mm Measuring Range, 500mm Jaw Depth, Test Pressure (refer to table above) View Model Details

$820.00

Checkline MTT-10-500-V - Digital Thickness Gauge, 0-10mm for FLEECE with 500 mm Jaw Depth - 10mm Measuring Range, 500mm Jaw Depth, Test Pressure (refer to table above) View Model Details

$820.00

Checkline MTT-10-500-L - Digital Thickness Gauge, 0-10mm for LEATHER with 500 mm Jaw Depth - 10mm Measuring Range, 500mm Jaw Depth, Test Pressure (refer to table above) View Model Details

$820.00

Checkline MTT-10-500-G - Digital Thickness Gauge, 0-10mm for GEO-TEXTILE with 500 mm Jaw Depth - 10mm Measuring Range, 500mm Jaw Depth, Test Pressure (refer to table above) View Model Details

$820.00

Checkline MTT-25-300-T - Digital Thickness Gauge, 0-25mm for TEXTILES & NON-WOVENS with 300 mm Jaw Depth - 25mm Measuring Range, 300mm Jaw Depth, Test Pressure (refer to table above) View Model Details

$798.00

Checkline MTT-25-300-V - Digital Thickness Gauge, 0-25mm for FLEECE with 300mm Jaw Depth - 25mm Measuring Range, 300mm Jaw Depth, Test Pressure (refer to table above) View Model Details

$798.00

Checkline MTT-25-300-L - Digital Thickness Gauge, 0-25mm for LEATHER with 300 mm Jaw Depth - 25mm Measuring Range, 300mm Jaw Depth, Test Pressure (refer to table above) View Model Details

$798.00

Checkline MTT-25-300-G - Digital Thickness Gauge, 0-25mm for GEO-TEXTILE with 300 mm Jaw Depth - 25mm Measuring Range, 300mm Jaw Depth, Test Pressure (refer to table above) View Model Details

$798.00

Checkline MTT-25-500-T - Digital Thickness Gauge, 0 - 25 mm for TEXTILES NON-WOVENS with 500 mm Jaw Depth - 25mm Measuring Range, 500mm Jaw Depth, Test Pressure (refer to table above) View Model Details

$875.00

Checkline MTT-25-500-V - Digital Thickness Gauge, 0-25mm for STANDARD FLEECE with 500 mm Jaw Depth - 25mm Measuring Range, 500mm Jaw Depth, Test Pressure (refer to table above) View Model Details

$875.00

Checkline MTT-25-500-L - Digital Thickness Gauge, 0-25mm for LEATHER with 500 mm Jaw Depth - 25mm Measuring Range, 500mm Jaw Depth, Test Pressure (refer to table above) View Model Details

$875.00

Checkline MTT-25-500-G - Digital Thickness Gauge, 0-25mm for GEO-TEXTILE with 500 mm Jaw Depth - 25mm Measuring Range, 500mm Jaw Depth, Test Pressure (refer to table above) View Model Details

$875.00
