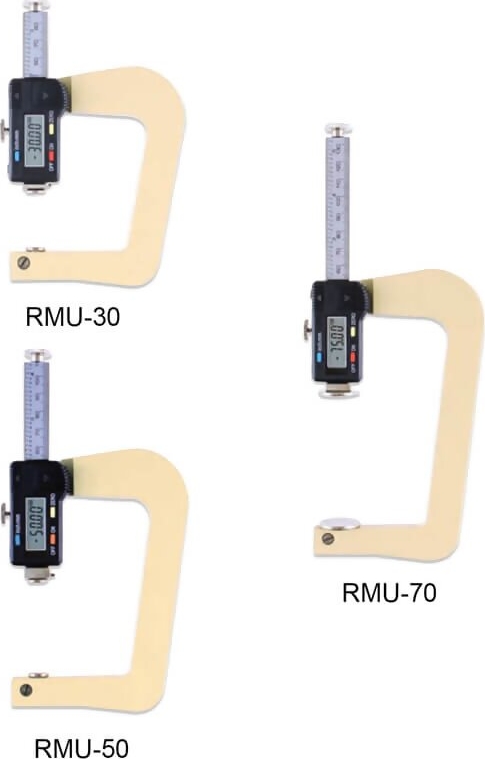

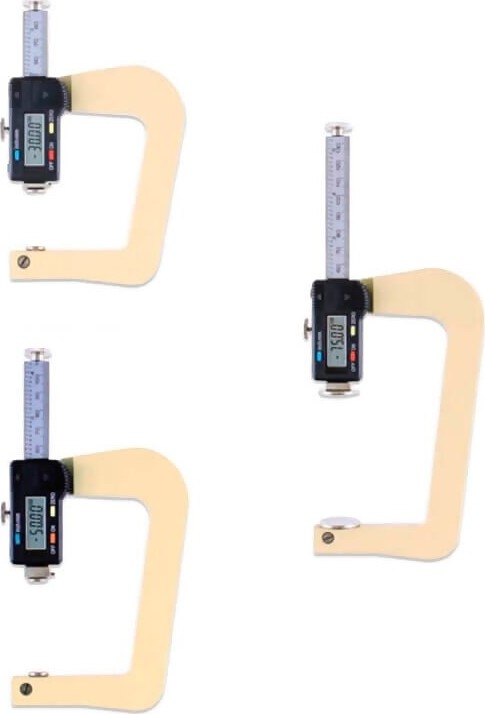

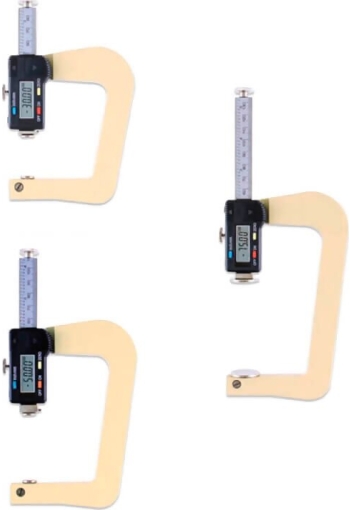

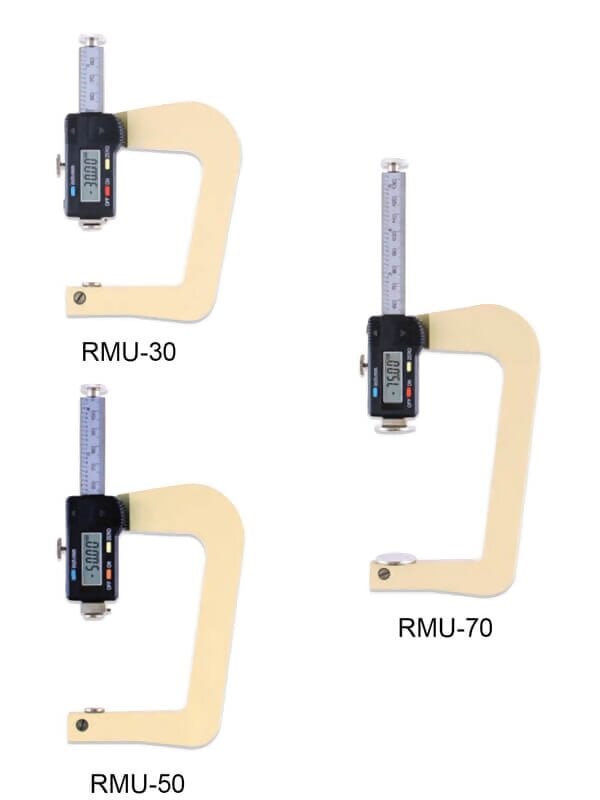

3 Ranges: 30 mm, 50 mm & 75 mm
Resolution: 0.01 mm / 0.001"
The Checkline RMU digital thickness gauge is ideal to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc.

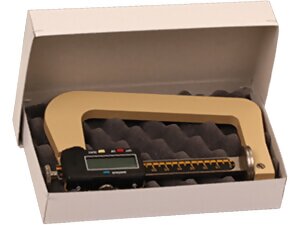

Kit Contents
- RMU Digital Thickness Gauge
- Battery
- Packing Case
Features
- Thickness gauges RMU features an easy to read digital display along with the high accuracy
- The RMU series is available with 5 different feelers, which can be found below
- Screw for fixing the probe
- Measuring by pressing the plunger rod
- Opening by spring force – self opening thickness gauge RMUAbhebevorrichtung Dickenmesser RM
- Output signal: USB
- LCD display with user selectable units of measurement (mm or inch)
- Zero setting by pushing a button
Specifications

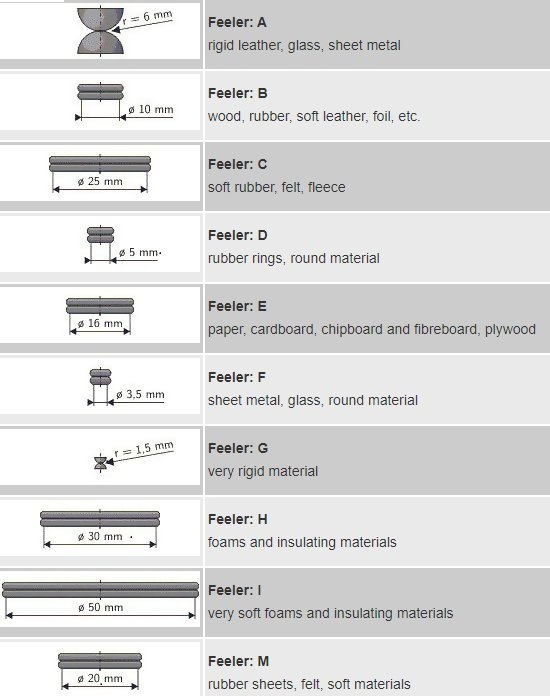

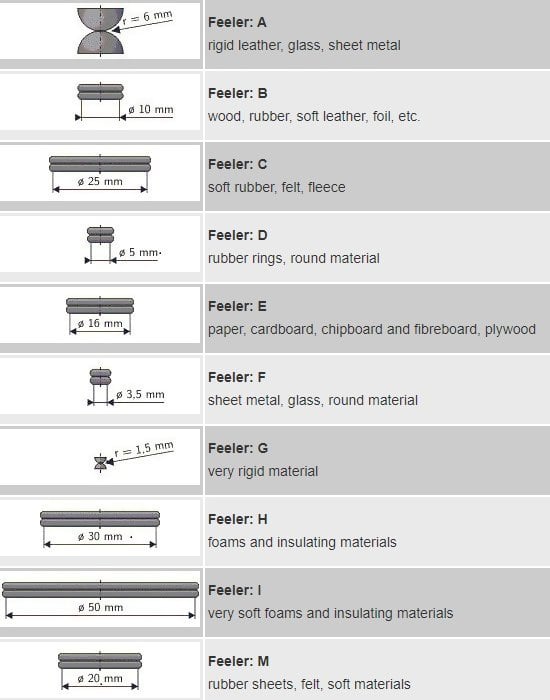

Feeler Shape
To order, please indicate the desired feeler, e.g. RMU-50-B for gauge with feeler >B<. this means that not all feelers are included in the package! < />>
 | Feeler: A
rigid leather, glass, sheet metal |
| Feeler: B
wood, rubber, soft leather, foil, etc. |
| Feeler: C
soft rubber, felt, fleece |
| Feeler: D
rubber rings, round material |
| Feeler: E
paper, cardboard, chipboard and fibreboard, plywood |
| Feeler: F
sheet metal, glass, round material |
| Feeler: G
very rigid material |
| Feeler: H
foams and insulating materials |
| Feeler: I
very soft foams and insulating materials |
| Feeler: M
rubber sheets, felt, soft materials |
