Product Description

This product has been replaced by the TMG Benchtop

The TTG-ISO-5084 has been discontinued

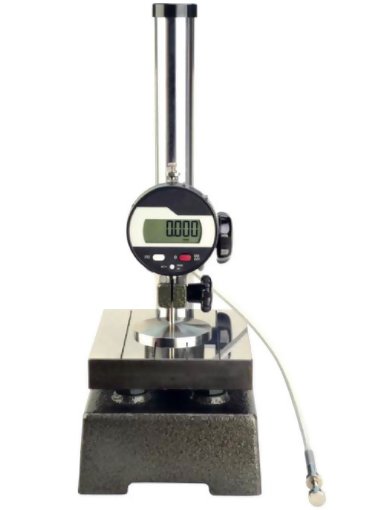

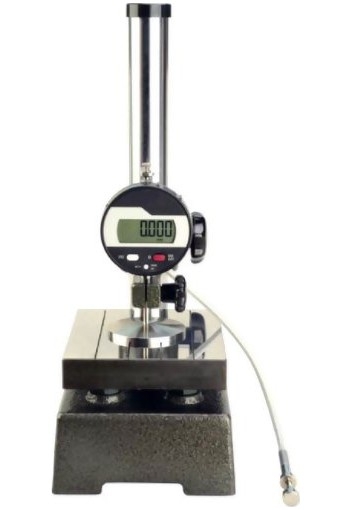

TTG-ISO-5084 Textile Thickness Gauge according to ISO 5084

Measures textile thickness according to to ISO 5084 specifications

The Barber-Colman TTG-ISO-5084 Textile Thickness Gauge according to ISO 5084 is designed to measure textile thickness according to to ISO 5084 specifications. Constant measuring pressure ensures highly accurate and repeatable measurements

line
Features
line

Includes Traceable Calibration Certificate
Easy-to-use foot lifting mechanism
Simple, rugged design
Displays in MM or Inches, user selectable

line
Specifications
line

Measuring Range	12.5mm / 0.5 Inches
Resolution	0.001 mm / 0.0001 Inches
Measuring Base	98mm x 115mm
Feeler Diameter	50.5mm
Measuring Pressure	1kPa +/-0.01kPa
Height	284mm
Weight	7.2 Kg

line

line
