Name: Hans-Schmidt J-200 Analog Dial Thickness Gauge
Brand: Hans-Schmidt
SKU: 2197

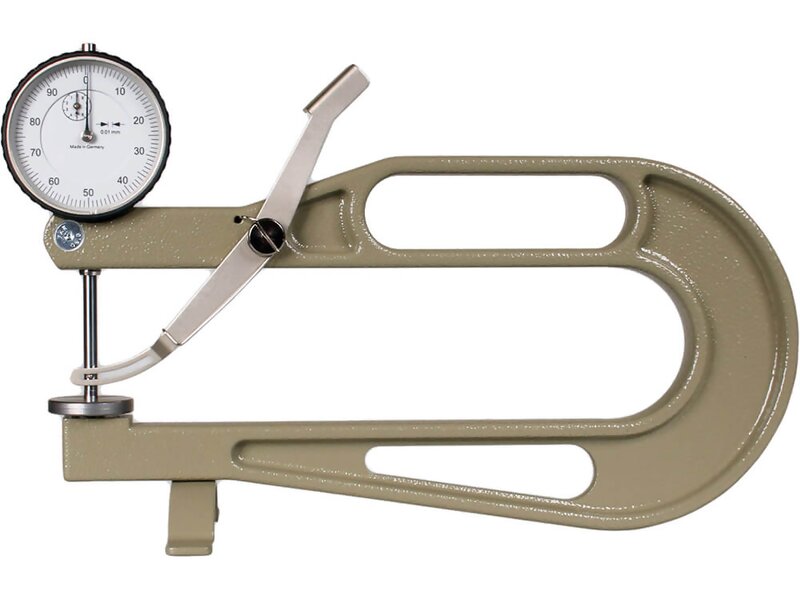

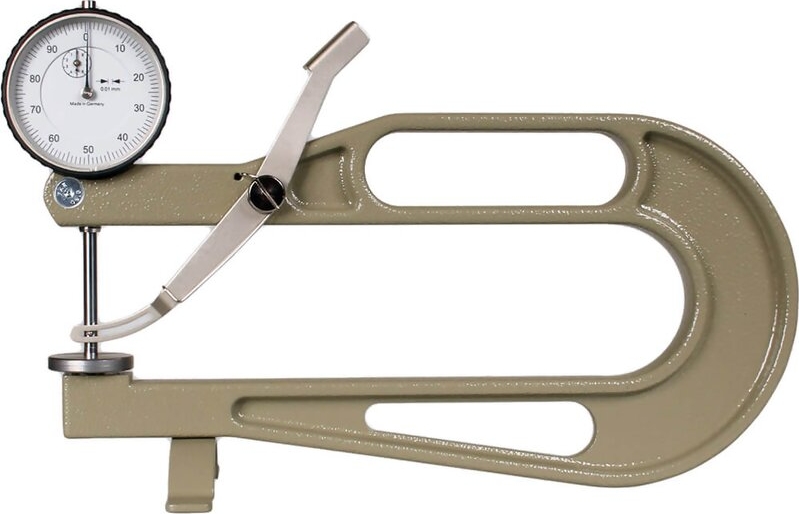

Hans-Schmidt J-200 Analog Dial Thickness Gauge

See More Dial Thickness Gauges

Measuring Range: 0 - 10 mm / 0 - 0.40 inch

Jaw Depth: 200 mm / 7.87 inch

Resolution: 0.01 mm / 0.0004 inch

The Hans-Schmidt J-200 Analog Dial Thickness Gauge features an easy to read analog display along with the high accuracy.

The Hans-Schmidt J-200 Analog Dial Thickness Gauge model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.

The Hans-Schmidt J-200 Analog Dial Thickness Gauge is ideal for determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc.

line

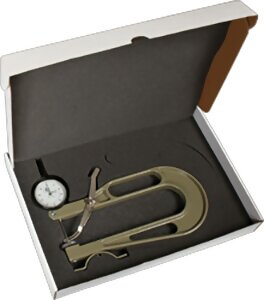

Kit Contents
line

Hans-Schmidt J-200 Analog Dial Thickness Gauge
Transport Packing Case

line
Specifications
line

Resolution	0.01 mm (0.0004 inch)
Measuring Range	10 mm (0.40 inch)
Depth Of Jaw	200 mm (7.87 inch)
Scale Diameter	54 mm (2.1 inch)
Measuring Pressure	1.5 N (Optional: 1.2 N or 3 N)
Feeler Shape	Select Feeler "A", "B", "C", "D" or "E"
Measuring Principle	Self closing
Weight, net (gross)	2.5 Lbs (1100 g)

line
Feeler Shape
line

To order, please indicate the desired feeler, e.g. J-200-B for gauge with feeler >B<. This means that NOT all feelers are included in the package!

	Feeler: A For rubber, felt, soft materials, non wovens, etc. Meets no DIN EN ISO standard
	Feeler: B For rubber, felt, soft materials, non wovens, etc. Meets no DIN EN ISO standard
	Feeler: C For soft leather, cardboard, paper, foils, etc.
	Feeler: D For hard leather, plywood, fiberboard, etc.
	Feeler: E For sheet metal, etc.

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Hans-Schmidt J-200-A Dial Thickness Gauge, 10mm Range, Depth of Jaw 200 mm (7.87 inch), Feeler A (30 mm) for Rubber, Felt, Soft Materials, Non Wovens View Model Details

$495.00

Hans-Schmidt J-200-B Dial Thickness Gauge, 10mm Range, Depth of Jaw 200 mm (7.87 inch), Feeler B (20 mm) for Rubber, Felt, Soft Materials, Non Wovens View Model Details

$495.00

Hans-Schmidt J-200-C Dial Thickness Gauge, 10mm Range, Depth of Jaw 200 mm (7.87 inch), Feeler C (10 mm) for Soft Leather, Cardboard, Paper, Foils View Model Details

$495.00

Hans-Schmidt J-200-D Dial Thickness Gauge, 10mm Range, Depth of Jaw 200 mm (7.87 inch), Feeler D (10 mm curved) for Hard Leather, Plywood, Fiberboard View Model Details

$495.00

Hans-Schmidt J-200-E Dial Thickness Gauge, 10mm Range, Depth of Jaw 200 mm (7.87 inch), Feeler E (5 mm curved) for Sheet Metal View Model Details

$495.00

Hans-Schmidt JZ-200-A Dial Thickness Gauge, 200mm Jaw Depth, 0.4 Inch range, Depth of Jaw 200 mm (7.87 inch), Feeler A (30 mm) for Rubber, Felt, Soft Materials, Non Wovens View Model Details

$495.00

Hans-Schmidt JZ-200-B Dial Thickness Gauge, 200mm Jaw Depth, 0.4 Inch range, Depth of Jaw 200 mm (7.87 inch), Feeler B (20 mm) for Rubber, Felt, Soft Materials, Non Wovens View Model Details

$495.00

Hans-Schmidt JZ-200-C Dial Thickness Gauge, 200mm Jaw Depth, 0.4 Inch range, Depth of Jaw 200 mm (7.87 inch), Feeler C (10 mm) for Soft Leather, Cardboard, Paper, Foils View Model Details

$495.00

Hans-Schmidt JZ-200-D Dial Thickness Gauge, 200mm Jaw Depth, 0.4 Inch range, Depth of Jaw 200 mm (7.87 inch), Feeler D (10 mm curved) for Hard Leather, Plywood, Fiberboard View Model Details

$495.00

Hans-Schmidt JZ-200-E Dial Thickness Gauge, 200mm Jaw Depth, 0.4 Inch range, Depth of Jaw 200 mm (7.87 inch), Feeler E (5 mm curved) for Sheet Metal View Model Details

$495.00

Recommended Accessories

PRICE

NISTCAL Traceable Calibration Certificate

+$210.00

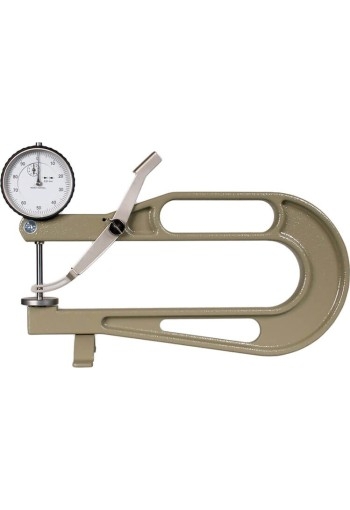

Hans-Schmidt J-200 Analog Dial Thickness Gauge

Images & Videos

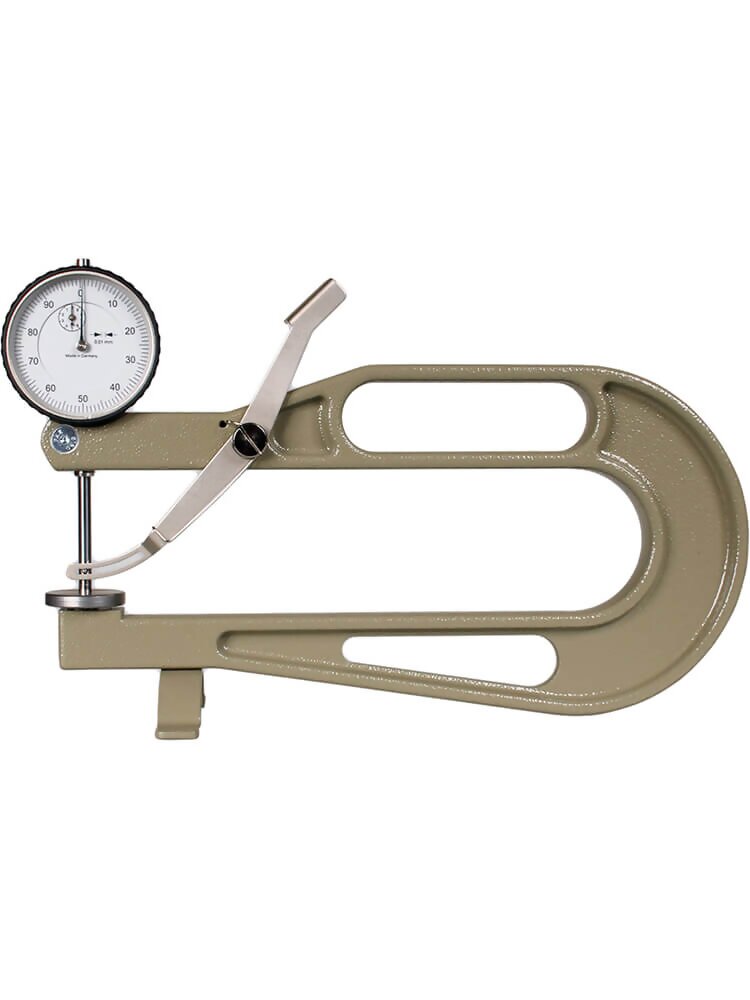

Hans-Schmidt J-200 Analog Dial Thickness Gauge
