Hans Schmidt JD-200 Dial Thickness Gauge

See More Dial Thickness Gauges

Hans Schmidt JD-200 Dial Thickness Gauge

See More Dial Thickness Gauges
Price:
$1,095.00
warrenty

Product Description
Range: 0-10mm / 0.400"
Resolution 0.01 mm / 0.001 Inch
Jaw Depth 200mm (8")
Selection of Feeler Type


Measuring range 0 - 10 mm / 0 - 0.4 Inch
Resolution 0.01 mm / 0.001 Inch

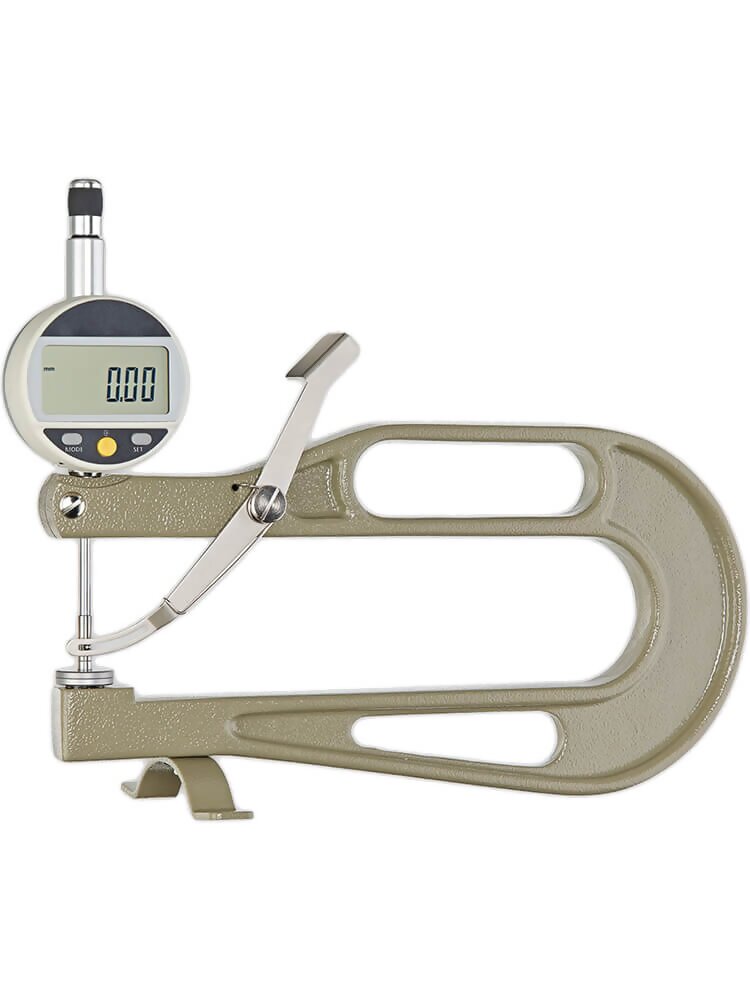

The Hans Schmidt JD-200 Dial Thickness Gauge is used to determine the thickness of leather, textiles, cardboard, felt, rubber, sheet metal, foil, plywood, plastic, etc.


line
Kit Contents
line

  • JD-200 Thickness Gauge
  • Battery


line
Features
line

  • Hans Schmidt JD-200 Dial Thickness Gauge features an easy-to-read digital display along with the high accuracy
  • The JD-200 dial thickness gauge is available with 5 different feelers, which can be found below
  • Measuring by spring force 1.9 N
  • Opening by lifting device (lever) – self closing thickness gauge JD-200
  • Output signals: – USB – RS 232
  • Includes swing-out foot for on-table operation
  • LCD display with user selectable units of measurement (mm or inch)
  • Thickness gauge JD-200 with Sylvac dial gauge
  • 1-Year Warranty


line
Specifications
line

Resolution 0.01 mm / 0.001 Inch
Measuring range 0 – 10 mm / 0 – 0.4 Inch
Depth of jaw 200 mm
Display LCD 6 digit, 8.5 mm high
Measuring principle Capacitive (Sylvac)
Measuring pressure 1.9 N ± 20 %
Feeler shape A/B/C/D/E (one per gauge)
Lifting device Operating by lifting device - self closing
Data output USB, RS 232, galvanic isolation
Battery 3 V Lithium, CR 2032
Temperature range 10 – 45 °C
Weight, net (gross) 700g (1150 g)


line
Available Models
line

Model Measuring Range Resolution Depth of jaw
JD-200 10 mm
0.4 Inch
0.01 mm
0.001 Inch
200 mm
JD-50 10 mm
0.4 Inch
0.01 mm
0.001 Inch
50 mm
JD-100 10 mm
0.4 Inch
0.01 mm
0.001 Inch
100 mm
JD-200-25 25 mm
1 Inch
0.01 mm
0.001 Inch
200 mm


line
Feeler Shape
line

Feeler: A For rubber, felt*, soft materials*, non wovens*, etc.

*Meets no DIN EN ISO standard

Feeler: B For rubber, felt*, soft materials*, non wovens*, etc.

*Meets no DIN EN ISO standard

Feeler: C

For soft leather, cardboard, paper, foils, etc.

Feeler: D

For hard leather, plywood, fiberboard, etc.

Feeler: E

For sheet metal, etc.


line
