Name: JD-50 Digital Thickness Gauge - 500-JD
Brand: Checkline
SKU: 547

JD-50 Digital Thickness Gauge - 500-JD

See More Dial Thickness Gauges

Measuring Range: 0.4 inch / 0 - 10 mm

Resolution: 0.001 inch / 0.01 mm

2" (50 mm) Jaw Depth

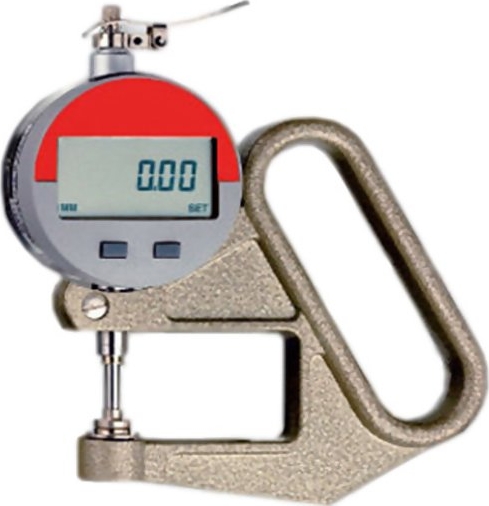

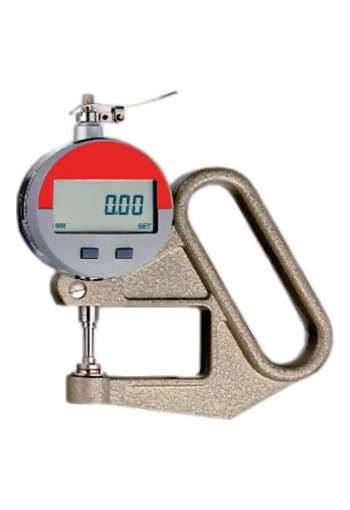

The Checkline JD-500 digital thickness gauge features an easy to read LCD display along with the high accuracy. The user can select to display thickness in inches or mm.

The JD-500 model is available with 5 different feelers, which can be found below. Measurement is done by a spring force. Opening by lifting device (lever) - self closing.

line
Features
line

Operating by lifting device - self closing
Resolution 0.001 inch(0.01 mm)
Easy to read LCD Display
User selectable units mm and inch
RS 232 output for data collection
Dial gauge model: Sylvac S 229

line
Specifications
line

Resolution	0.01 mm / 0.001 inch
Measuring range	0 - 10 mm / 0.4 inch
Depth of jaw	50 mm / 2 inch
Display	LCD 6 digit, 8.5 mm high
Measuring principle	Capacitive (Sylvac)
Measuring pressure	< 1.4 N
Feeler shape	a,b,c,d or e
Lifting device	Operating by lifting device - self closing
Data output	RS 232, optical coupling
Power supply	Battery, 3 V Lithium, CR 2032
Temperature range	10 - 45°C
Weight, net	300 g

line

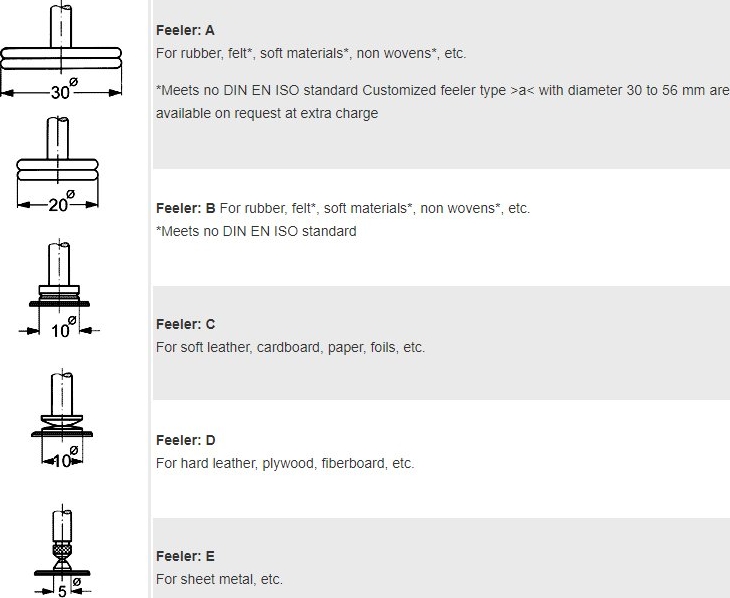

Feeler Shape
line

To order, please indicate the desired feeler, e.g. JD-500-B for gauge with feeler >b<. This means that NOT all feelers are included in the package!

	Feeler: A For rubber, felt, soft materials, non wovens, etc. Meets no DIN EN ISO standard
	Feeler: B For rubber, felt, soft materials, non wovens, etc. Meets no DIN EN ISO standard
	Feeler: C For soft leather, cardboard, paper, foils, etc.
	Feeler: D For hard leather, plywood, fiberboard, etc.
	Feeler: E For sheet metal, etc.
