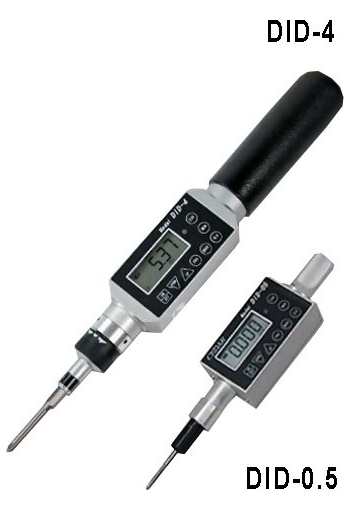

Imada Cedar DID Digital Torque Screwdriver

See More Torque Screwdrivers

Imada Cedar DID Digital Torque Screwdriver

35 lbf-in & 4.5 lbf-in Capacities

Units of measure: lb-in, oz-in, kg-cm, N-cm and N-m

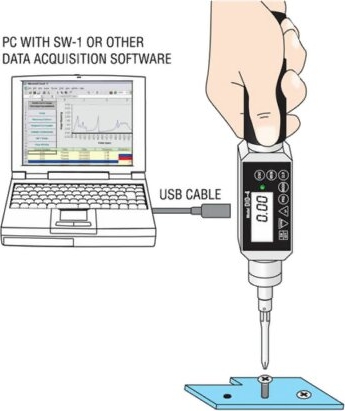

The Imada Cedar DID Digital Torque Screwdriver is a torque measuring manual screw driver designed for lab and production use. The large LCD display measures bi-directional torque in real-time or peak modes. USB data output allows the user to graph torque vs time with optional SW-1SD software.

The Imada Cedar DID Digital Torque Screwdriver has an accuracy of ± 0.5% F.S., ±1 LSD and has programmable setpoints that provide both an audible beep and green/red LED indicator for uniform tightening or GO/NO GO testing. In addition, it features a programmable counter that minimizes assembly errors by identifying mis-tightening and/or defective screws. Built-in ratcheting clutch allows for convenient tightening or loosening. Use the 800 internal memory for data recall or USB download for SPC.

The DID substantially reduces scrap and rework costs by eliminating over and undertightening and is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies.

line

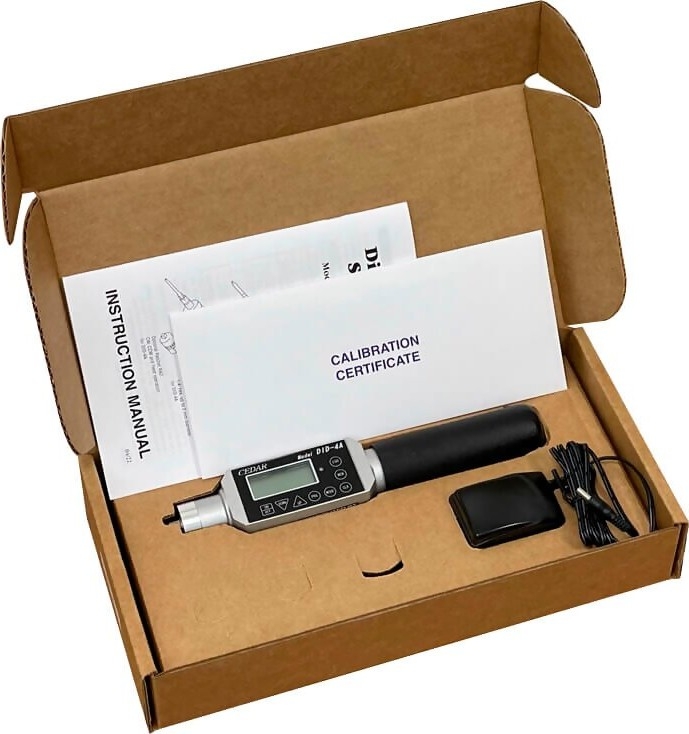

Kit Contents
line

Imada Cedar DID Digital Torque Screwdriver
Two (2) 1/4" Phillips tips
Universal (100-240V) AC adapter/charger
Operating Instructions

line
Features
line

Programmable High and Low set points with both audible beep and Green/Red LED indicator for uniform torque tightening or GO/NO GO testing
Peak, Real Time and Peak Down measuring mode (selectable)
Statistics: number of data, Max, Min, Avg
Programmable screw tightening counter
CW, CCW ratchet and fixed operation
Runs on internal NiCad batteries (8 hour use) Auto shut-off after 10 min. of non-use
Programmable High and Low set points with both audible beep and Green/Red LED indicator for uniform torque tightening or GO/NO GO testing
Selectable units ozf-in, lbf-in, kgf-cm, N-cm and N-m
USB data output for SPC capability
800 data memory for recall or for SPC download
Programmable Auto Zero function resets unit to zero for easy operation
Ergonomic and light weight, yet ruggedly constructed
1/4" Phillips tips, AC charger and carrying case included
2-Year Warranty

line
Specifications
line

Accuracy	+/- 0.5% F.S., +/- 1 LSD

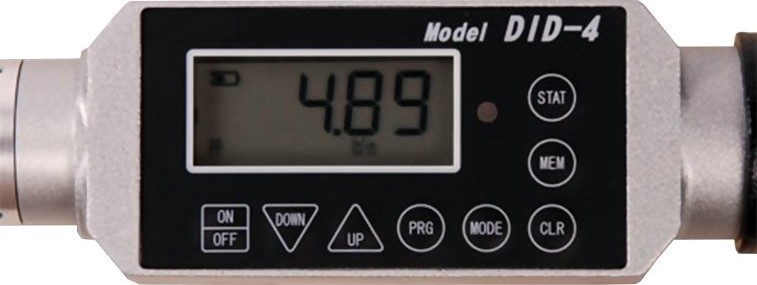

Display	4 digit LCD
Operation	CW, CCW and fixed position
Measuring Modes
PP	Peak Mode displays PEAK torque value that will not change until a higher value is measured
PD	Peak Down Mode Captures first peak down value above the PDLO
Real Time	Displays transient torque values
C	Real-time Output 180 data per second
GO/NO GO testing	Programmable High and Low setpoints with both audible beep and Green/Red LED indicator
Statistics	Number of data, maximum, minimum and average
Data Transfer	ASCII, 19200 bps, USB miniB cable
Data Memory	800 data
Batch Counter	1-99 (CW only)
Power Supply	Ni-Cad rechargeable batteries 1.2V×4cells 600mAh
Auto Power Save	Automatic switch off after 10 minutes of non-use
Charging Time	From empty - less than 5hours
Working Time	12 hours continuous use
Bit Size	6.35 mm
Weight	430g
Accessories	AC/DC Adapter / Charger, 100 ~ 230VAC, 2 Phillips bits, NIST certificate

line
Ranges
line

Model	Capacity	Resolution

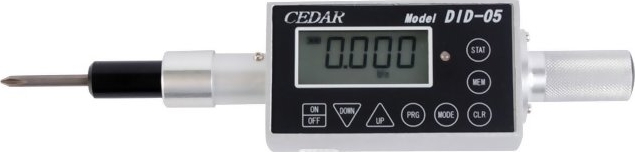

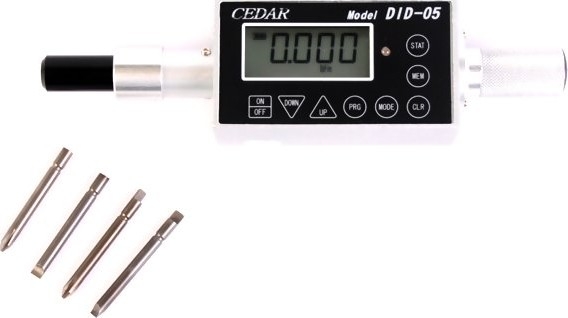

DID-05	69.50 in-oz	0.01 in-oz
	4.500 in-lb	0.001 in-lb
	5.000 kg-cm	0.001 Kg-cm
	50.00 N-cm	0.01 N-cm
DID-4A	560.0 in-oz	0.1 in-oz
	35.00 in-lb	0.01 in-lb
	40.00 kg-cm	0.01 Kg-cm
	400.0 N-cm	0.1 N-cm
	4.000 N-m	0.001 N-m

line
Related Products
line

Imada SW-1SV-USB
Data Acquisition Software for Torque

Data Acquisition Software for Torque
Full SPC and graphing capabilities

line

TSD
Torque Screwdriver

3 Ranges, Up to 35 lbf-in capacity

line

Imada GLK
Digital Torque Screwdriver

High accuracy ±1.5% F.S. both CW and CCW directions

line

Mark-10 TT03
Digital Torque Gauges Series

6 Ranges up to 100lb-in

line
Downloads
line

Imada Cedar DID Digital Torque Screwdriver - Data Sheet
