The BCS digital crane scale is a precision scale for industrial weighing applications for use up to 10,000 lb / 5,000 kg

---

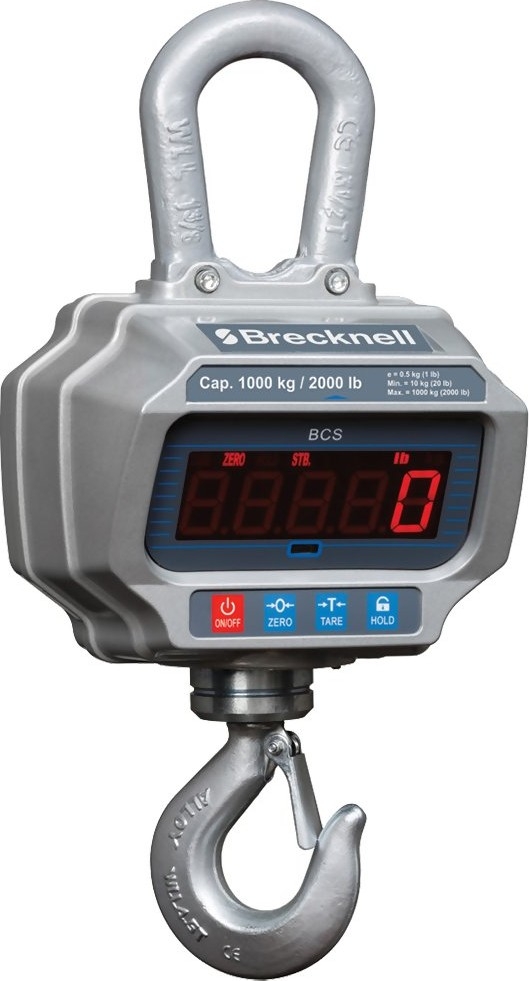

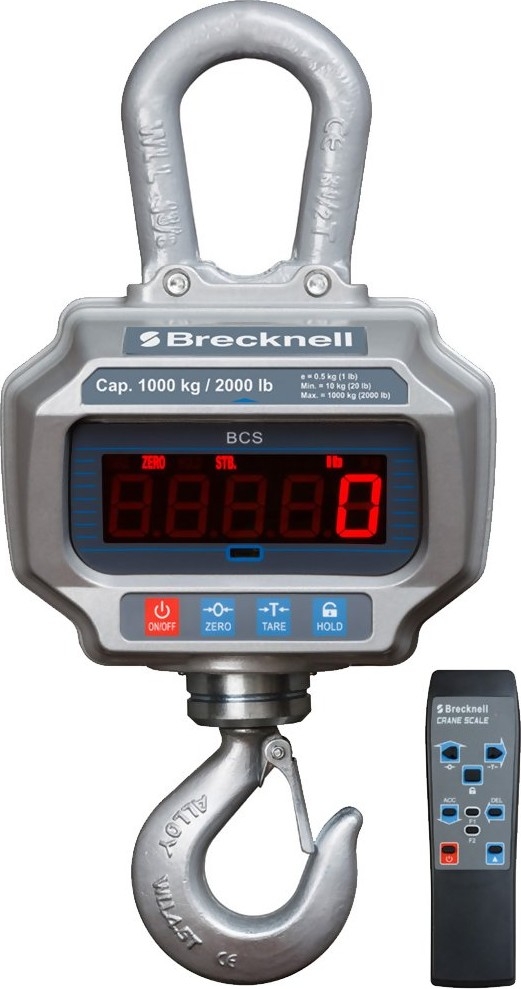

The Dillon BCS digital crane scale is a precision scale for a wide range of industrial weighing applications. The Dillon BCS is available in 3 ranges with capacities up to 10,000 lb / 5,000 kg. It features a swivel hook for easy and secure connections and an elongated upper shackle with space to accept large hooks.A large 1.4" (35mm) ultra-bright LCD display makes the BCS easy to read from far away. An optional remote control allows the operator to reset and change operating modes adding convenience and safety.

Features

• Real-Time and Peak Display Modes
• Calibration Certificate NOT included
• Rugged aluminium housing
• Dual Power, Runs off Internal rechargeable battery or AC power (optional)
• Large 1.4" (35mm) ultra-bright LCD display
• Built-in swivel hook with safety latch and elongated upper shackle
• Auto-Off can be set from 0 to 60 minutes

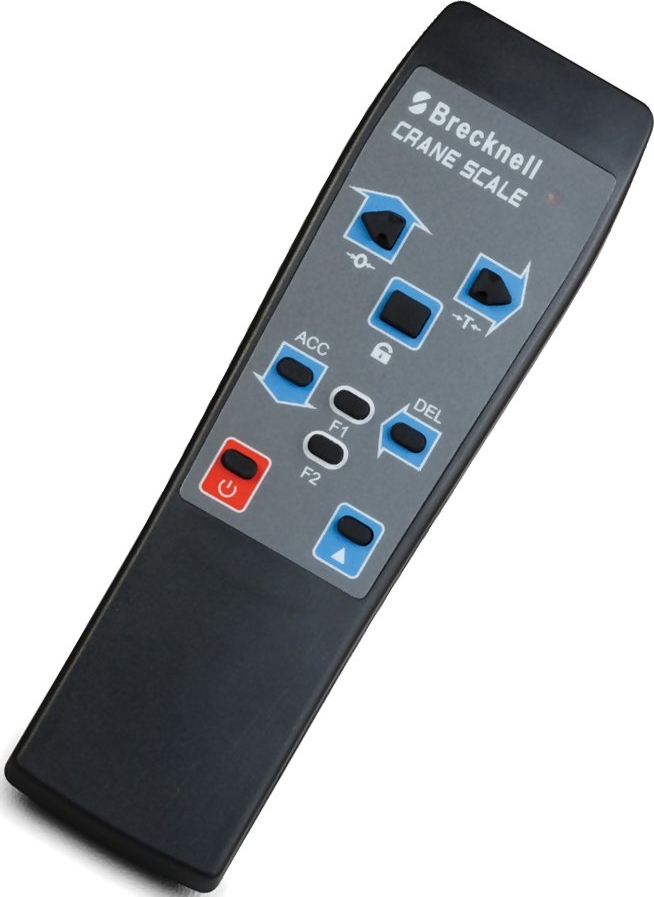

• Includes remote control

Specifications

Accuracy	+/- 0.1% of full scale
Factory Calibration	39° latitude optimized

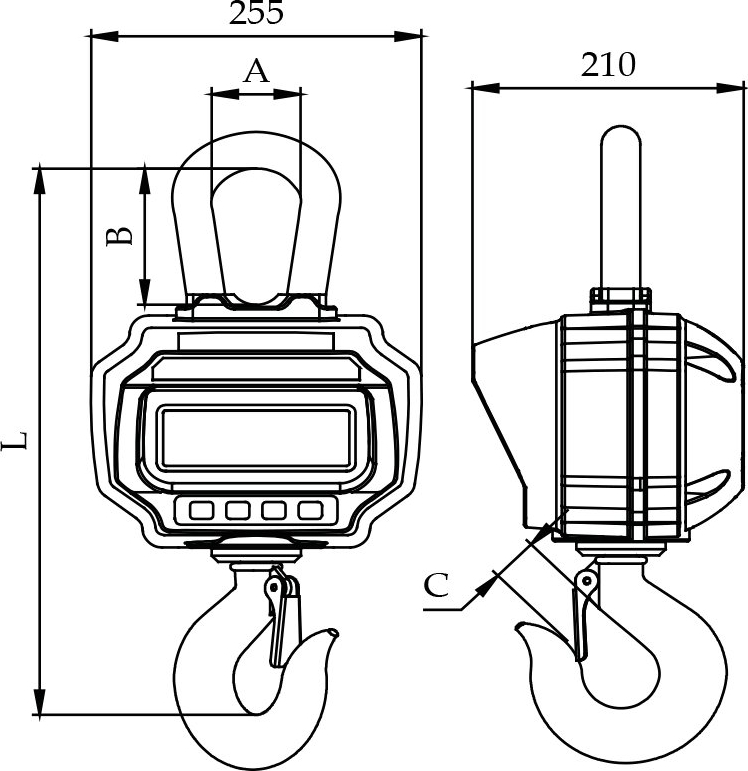

Dimensions	255 mm (L) x 210 mm (W) x 440 mm (D) 10" L x 8" W x 17" H
Power	Scale: 7.2VDC power adapter, 1000mA with central positive 6V/4.0Ah lead acid rechargeable battery (both included)
Typical Battery Life	Depending on LED brightness and idle mode setting, battery works from 60 hrs to 200 hrs
Charging Time	Approximately 12 hrs; red LED charging, green finished
Warranty	1 Year
Typical Battery Life	60 hrs to 200 hrs
Charging Time	Approximately 12 hours
Display	35 mm / 1.4" ultra-bright LED
Remote Distance	Maximum 10 m / 32'
Tare Range	100% F.S.
Zero Range	4% F.S.
Stable Time	≤10 sec
Overload	100% F.S. + 9 divisions
Overload Indication	Internal counter at +9 divisions F.S.
Ultimate Safety Factor	400% F.S.
Safety Load	150% F.S.
Operating Temperature	-10° C to 40° C / 14° F to 104° F
Operating Humidity	20° C ≤90%
Shipping Weight	12.65 kg / 27.88 lb
Packaging Dimension	600 mm (L) x 270 mm (W) x 310 mm (H) / 23" L x 10" W x 12" H
Accuracy Class	GB/T 11883-2002 Class III
Agency Approvals	CE, EC Machinery Directive

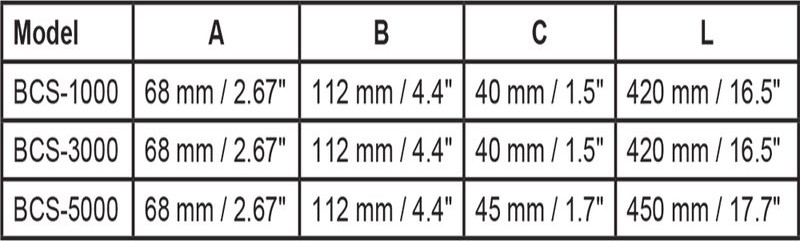

Ranges
