The BCS digital crane scale is a precision scale for industrial weighing applications for use up to 10,000 lb / 5,000 kg

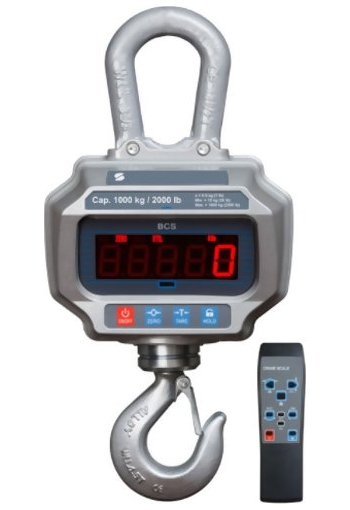

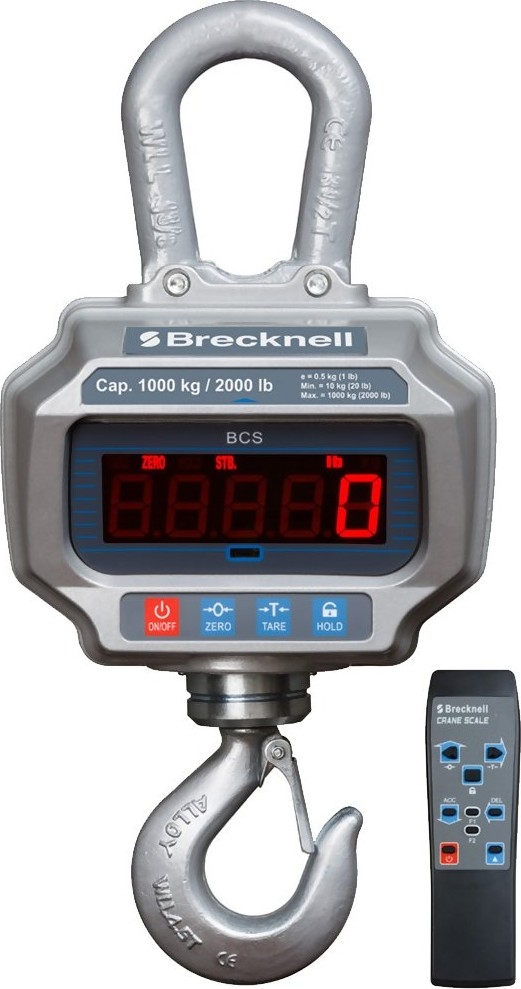

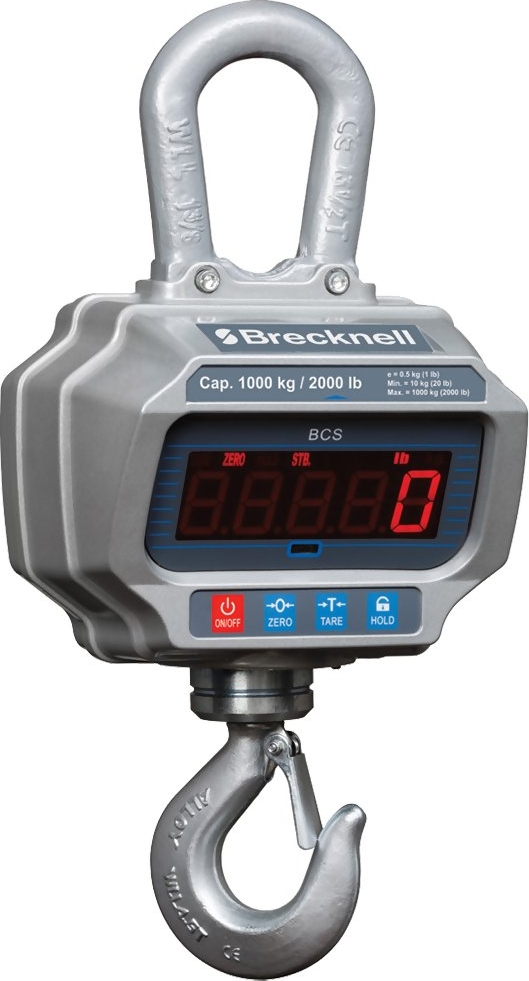

The Dillon BCS digital crane scale is a precision scale for a wide range of industrial weighing applications. The Dillon BCS is available in 3 ranges with capacities up to 10,000 lb / 5,000 kg. It features a swivel hook for easy and secure connections and an elongated upper shackle with space to accept large hooks.A large 1.4" (35mm) ultra-bright LCD display makes the BCS easy to read from far away. An optional remote control allows the operator to reset and change operating modes adding convenience and safety.
Features
- Real-Time and Peak Display Modes
- Calibration Certificate NOT included
- Rugged aluminium housing
- Dual Power, Runs off Internal rechargeable battery or AC power (optional)
- Large 1.4" (35mm) ultra-bright LCD display
- Built-in swivel hook with safety latch and elongated upper shackle
- Auto-Off can be set from 0 to 60 minutes

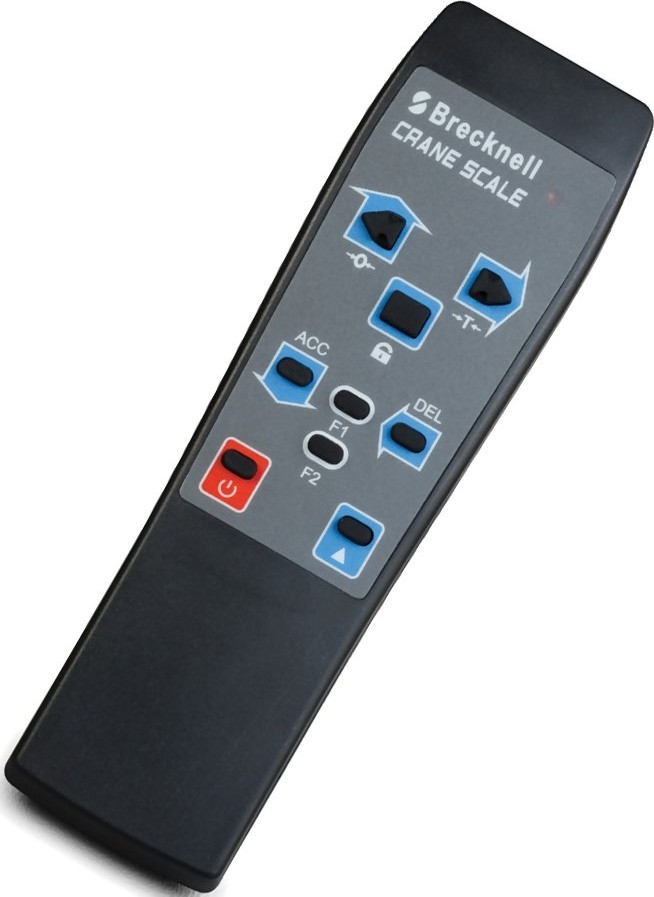

- Includes remote control
Specifications
| Accuracy | +/- 0.1% of full scale |
| Factory Calibration | 39° latitude optimized |

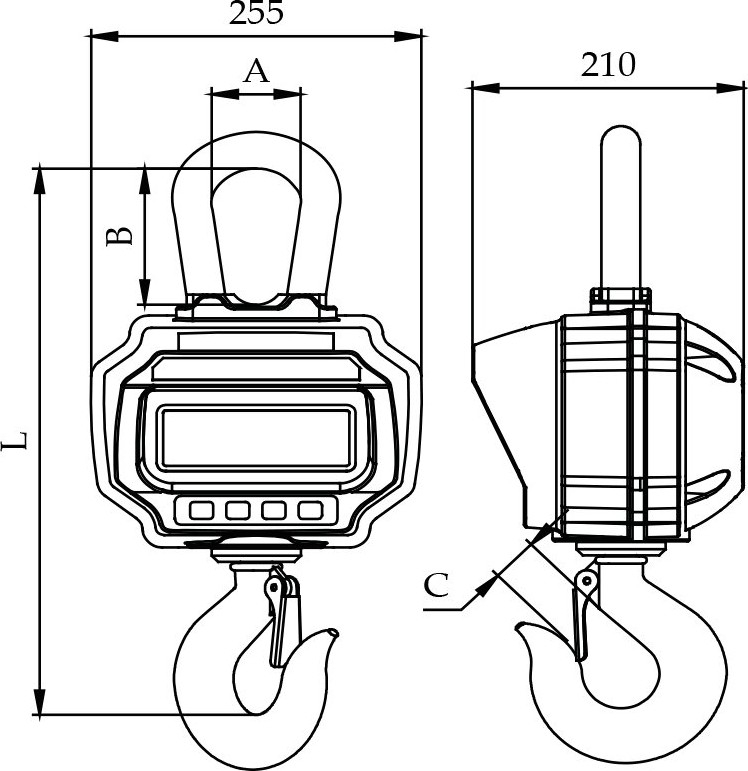

| Dimensions | 255 mm (L) x 210 mm (W) x 440 mm (D) 10" L x 8" W x 17" H |
| Power | Scale: 7.2VDC power adapter, 1000mA with central positive
6V/4.0Ah lead acid rechargeable battery (both included) |
| Typical Battery Life | Depending on LED brightness and idle mode setting, battery works from 60 hrs to 200 hrs |
| Charging Time | Approximately 12 hrs; red LED charging, green finished |
| Warranty | 1 Year |
| Typical Battery Life | 60 hrs to 200 hrs |
| Charging Time | Approximately 12 hours |
| Display | 35 mm / 1.4" ultra-bright LED |
| Remote Distance | Maximum 10 m / 32' |
| Tare Range | 100% F.S. |
| Zero Range | 4% F.S. |
| Stable Time | ≤10 sec |
| Overload | 100% F.S. + 9 divisions |
| Overload Indication | Internal counter at +9 divisions F.S. |
| Ultimate Safety Factor | 400% F.S. |
| Safety Load | 150% F.S. |
| Operating Temperature | -10° C to 40° C / 14° F to 104° F |
| Operating Humidity | 20° C ≤90% |
| Shipping Weight | 12.65 kg / 27.88 lb |
| Packaging Dimension | 600 mm (L) x 270 mm (W) x 310 mm (H) / 23" L x 10" W x 12" H |
| Accuracy Class | GB/T 11883-2002 Class III |
| Agency Approvals | CE, EC Machinery Directive |
