High Capacity Cable Tension Meter

---

26500 lb / 120 kN / 12000 kg Capacity

---

Measures cables from 3/4" - 1.-17/64" / 19-32mm

---

TTXL Capacity: 26500 lb / 120 kN / 12000 kg Cable Diameter Range: 3/4" - 1-17/64" / 19-32mm

TTXL-V2 Capacity: 33,000 lb / 150 kN / 15000 kg Cable Diameter Range: 1/2" - 1" / 11-25mm

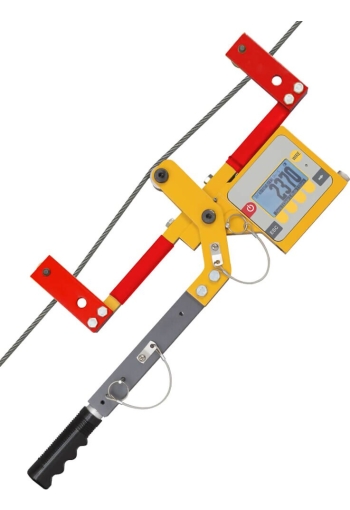

The Dillon TTXL High-Capacity Cable Tension Meter is designed to measure tension quickly and accurately on guy wires, zip lines, guardrails, utility lines, and other applications where wire rope is fixed between two points. It installs, measures, and removes in seconds. The TTXL features a precision loadcell for highly accurate measurements that do not require lookup or correction tables.

Kit Contents

---

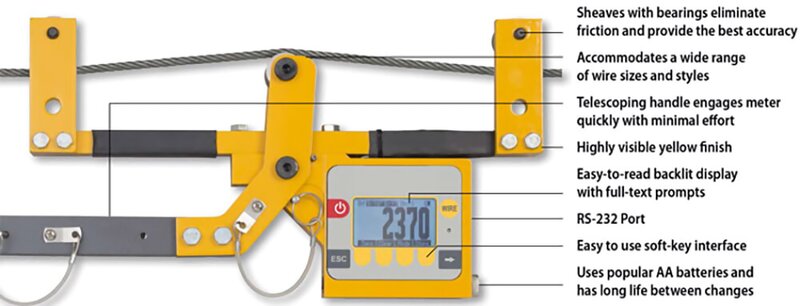

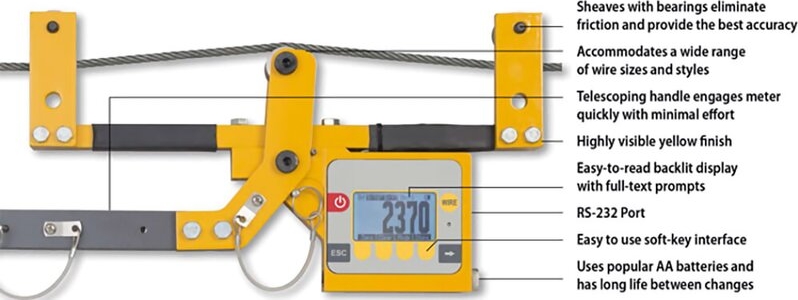

Features

---

• Includes Calibration Certificate
• 1 Year Warranty
• Stores calibrations for up to 20 unique wire sizes and types up to 1 inch max. (25 mm)
• CE Certified
• Portable and rugged – designed for outdoor use
• Telescoping handle engages meter quickly with minimal effort
• Uses stanadrd AA Batteries for up to 120 hours of use
• User-selected units of measure of Lbf, Kgf or Newtons
• Calibration available for Alumoweld Cables

Specifications

---

Capacity	TTXL 26500 lb / 120 kN / 12000 kg TTXL-V2 33,000 lb / 150 kN / 15000 kg
Resolution (Selectable)	Low 50lb/20Kg - Med 20lb/10Kg - High 10lb/5Kg *Default Setting is Medium
Wire sizes	TTXL 3/4" - 1-17/64" / 19-32mm TTXL-V2 1/2" - 1" / 11-25mm
Accuracy	±3% instrument capacity
Number of calibrations	Up to 20 can be stored independently
Operating Temperature	-4°F to 158°F (-20°C to 70°C)
Loading error	Cable elongation of only 0.08 inch (2mm)
Display	Informative Display: Shows Unit, Wire Type, Sheave & Battery;
Date and Time	Included
Calibration Reminder	Included (set by factory)
Backlight	Included (configurable intensity and timer)
Power	AA batteries x2
Battery Life	10 Hz = over 250 hours continuous 100Hz = over 100 hours continuous *Tested with blacklight off
AZT (Automatic Zero Tracking) & Filtering	Configurable AZT and Filtering

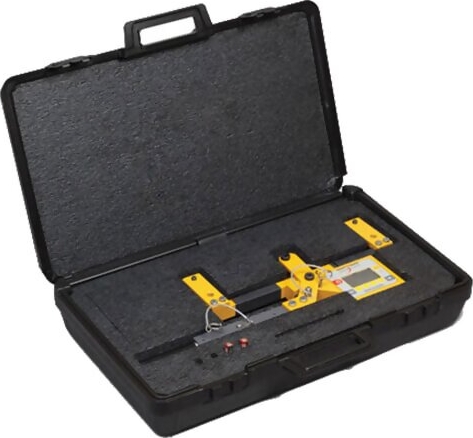

Carrying Case	Included
RS-232 Port	4-Pin Lemo RS-232 output
Units Of Measure	pound-force, kilogram force, Newtons
Environment protection	Suitable for continued outdoor use
Dimensions	10 x 23 x 3 inch (25 x 59 x 8 cm)
Weight	Approx 11 lb (5 kg)
Shipping Weight	30 lbs (14 kg)
Shipping Dimensions	28 x 16 x 7 inches (71 x 41 x 18 cm) with carrying case
Warranty	2 Years
