Product Description

Digital Panel Meter


LED-display with optional limiting value transmitter

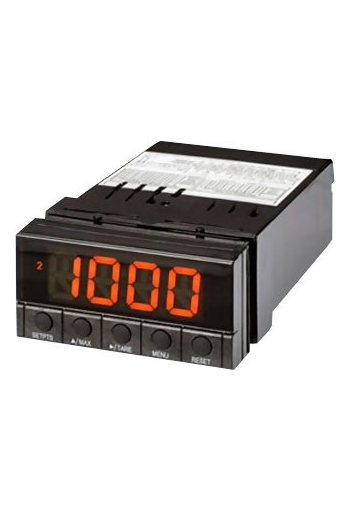

The Digital-Panel-Meter DPM-PCS-02 is a 4-digit meter with a bright, 21mm high LED-display

It offers good readability even from long distances. The optional limited value transducer is ideal for the monitoring of tension signals.

Adjustments for scale, decimal point, min-/max-limited values and display colour are done via the front-side pushbuttons


line
Features
line

  • Comfortably adjustable display, in the proper unit of measure
  • Programmable via front-side pushbuttons
  • MAX-value memory
  • Adjustable decimal point
  • Display range -1999 to 9999 digit
  • Multi-level programming interlock
  • Limited value transducer MIN / MAX (optional)
  • Programmable display colour: red, green or amber
  • Connection by removable screw terminal plug
  • Supply voltage AC: 230V AC or 115V AC
  • Supply voltage DC: 10 to 32V DC, galvanically isolated
  • DIN front dimensions 96 x 48mm
  • IP65 front side (optional)


line
Downloads
line

DPM-PCS-02 Digital Panel Meter - Data Sheet
