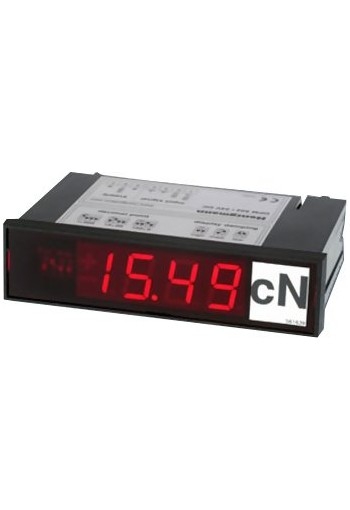

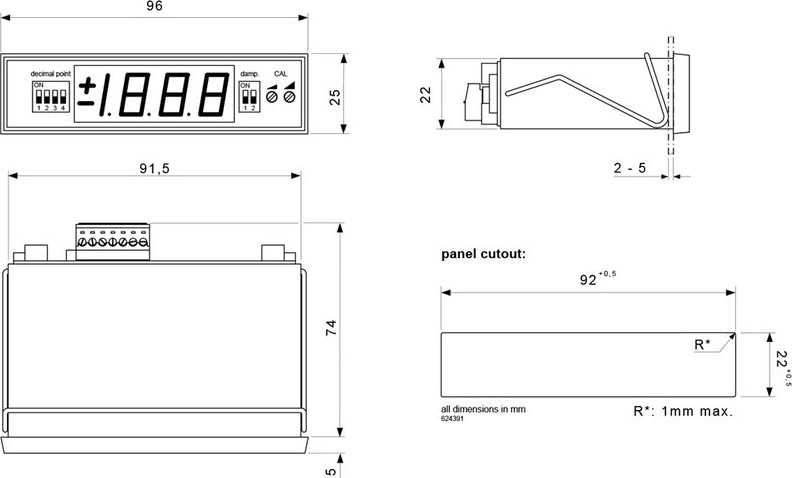

Digital Tension Indicator


Designed to connect to the TS621 or TS481 Strain Gauge Amplifier, as well as the RFSE Tension Sensor

The DPM502 is designed to connect to the TS621 or TS481 Strain Gauge Amplifier, as well as the RFSE Tension Sensor.

It incorporates built-in calibration adjustments to scale the tension values into display units. The 3-1/2 LED display has a user-set decimal point and will display values up to 1999. Faceplate is easily removed to make calibration adjustments


line
Features
line

  • Selectable “damping function” reduces display fluctuations
  • scaling by means of 2 multiturn trimmers (rough / coarse)
  • Easy snap-in installation
  • 24V DC power supply with galvanic isolation


line
Specifications
line

Display3 1 /2 - digit LED (1999 max.) 14mm height
Decimal PointUser-Selected
Damping Rate0.2 to 4 sec.
Display Update Rate0.5 sec.
Power Required24 VDC @ 50 mA (approx)

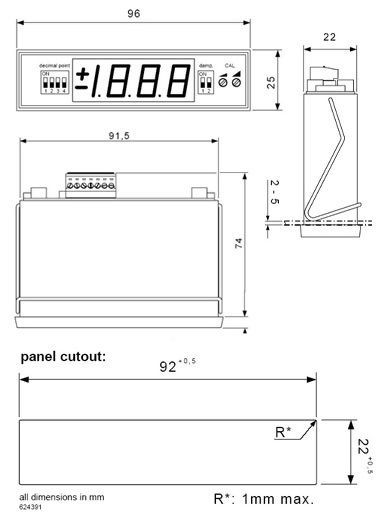

Panel Cutout92 x 22mm
Weight3.5 ounces (100 g)
Dimensions3.7" W x 3" D x 1" H (96 x 77 x 24mm)


line
User Controls
line

User control pots & dip switches are accessed behind display panel


line
