Name: Shimpo DT-105A-12CBL Tachometer for Elevator Cable Speed
Brand: Shimpo
SKU: 1196

Shimpo DT-105A-12CBL Tachometer for Elevator Cable Speed

See More Handheld Tachometers

Tachometer for Elevator Cable Speed, Belt Speed and other applications

Supplied with 12 inch circumference grooved wheel

Measures ft/min, ft/sec, m/min, m/sec, mph and more

The DT-105A-12CBL is designed to measure elevator cable speed in feet per minute, meters per minute and other measuring units. It is supplied with a rugged 12” circumference wheel with large flanges to keep the cable in contact with the surface. Delivering superior performance and accuracy over more conventional flat surface wheels

Employing a non slip rubber contact surface, the wheel adds safety and accuracy while measuring speeds on Elevator governor cables, wire and cable reels, extruded tubing and many other applications

line
Features
line

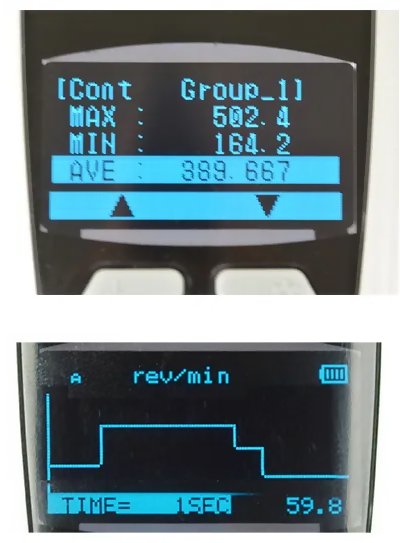

Built-in memory for last, maximum, minimum and 10 separate readings
Rugged cast aluminum housing
Includes Traceable calibration Certificate
LCD Version for use in sunlight and for longest battery life (DT-105A-12CBL)
LED version for use in poorly lit or dark environments (DT-107A-12CBL)

line
Specifications
line

Display Range	0.10 to 25,000 rpm with floating decimal
Accuracy	0.10 to 999.99 rpm: ±0.06 rpm 1,000.0 to 9,999.9 rpm: ±0.6 rpm 10,000 to 25,000 rpm: ±0.006% rpm
Display	DT-105A: (LCD MODEL) 5 digit 0.47" (12mm) high DT-107A: (LED MODEL) 5 digit 0.4" (10mm) high
Measurement Units	Per Second: Inches, Centimeters (optional, inquire) Per Minute: Revolutions, Inches, Feet, Yards, Meters Per Hour: Miles, Kilometers (optional, inquire) Total: Revolutions, Inches, Feet, Yards, Centimeter, Meters
Memory System	13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 measurements)
Detection	Optical coupler, 60 pulses/rev.
Update Time	1 second (typical)
Over-Range Indicator	Flashing numerals
Batteries	2 - 1.5 V AA
Battery Life	Approx. 65 hrs. (DT-105A) Life: Approx. 40 hrs. (DT-107A)
Operating Temp	32 to 113° F (0 to 45° C)

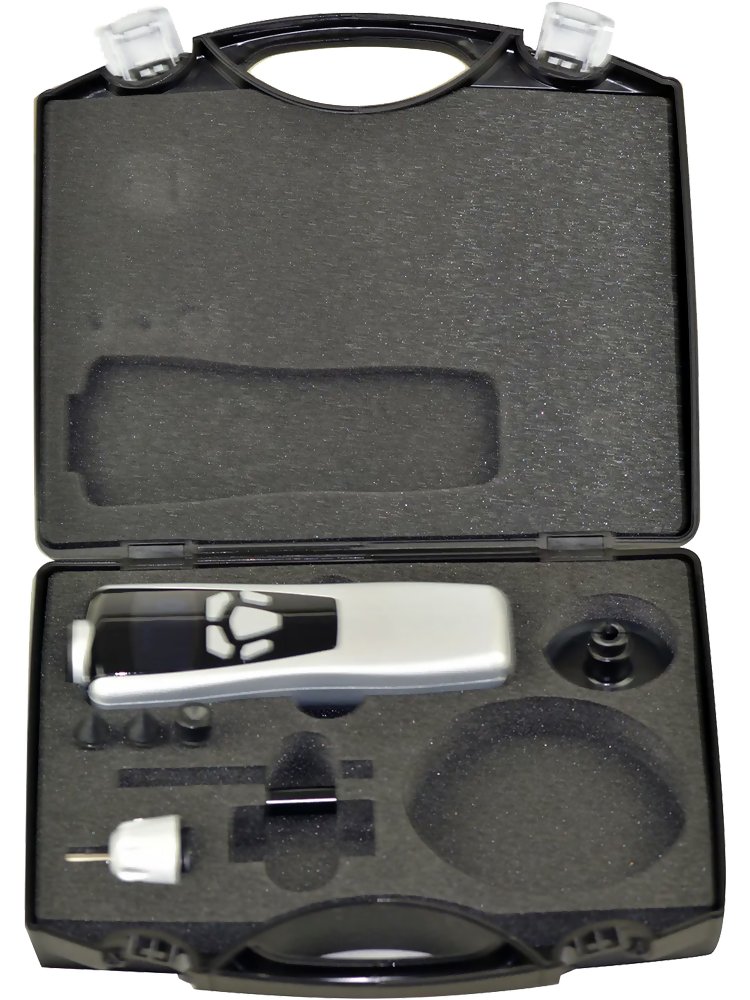

Accessories Included	2 cone adapters, 1 funnel adapter, 3-1/2" extension shaft, 1 surface speed wheel (6" circumference), carrying case, operating instructions
Product Weight	0.9 pounds (400 grams) (without wheel)
Dimensions	7.3" L x 2.4" W x 1.8" H
Warranty	1 year
Country of Origin	Taiwan

line
Related Products
line

FPM-12-CBL

12" Circumference Wheel for elevator cable, belts and other applications

line

DT-105A - DT-107A
Hand-Held Contact Tachometer

Built-in memory for last, maximum, minimum and 10 separate readings

line

line

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Shimpo DT-105A-12CBL Hand-Held Tachometer / Cable Speed Meter - LCD Display View Model Details

$515.00

Shimpo DT-107A-12CBL Hand-Held Tachometer / Cable Speed Meter - LED Display View Model Details

$515.00
