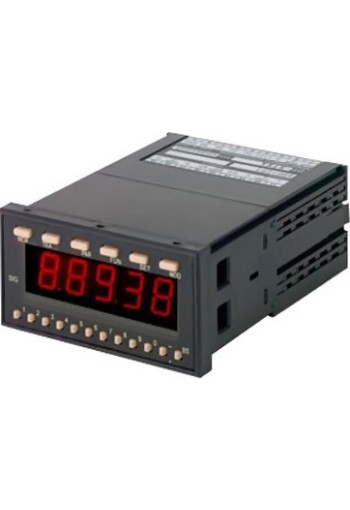

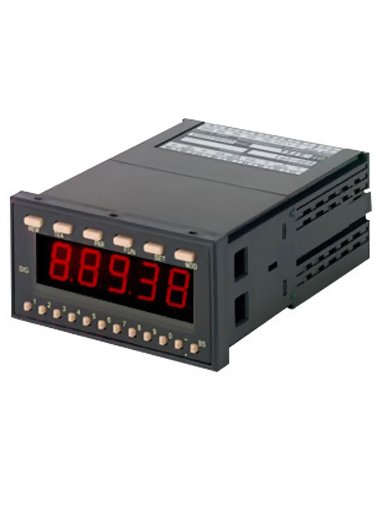

Shimpo DT-5TS Economical Panel Indicator

See More Handheld Tachometers

This product has been replaced by the DT-501X Panel

The DT-5TS has been replaced by the DT-501X

Economical Panel Tachometer

Highly accurate (± 0.008% ± 1 digit) makes ideal for process control and analysis

Measuring Range: 10 - 99,999 rpm (at 1p/r)
0.2 - 30,000 rpm (at 60 p/r)

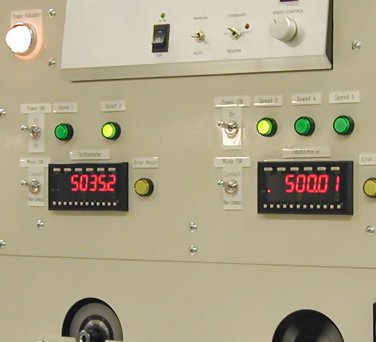

The DT-5TS economical panel indicator is ideal for speed and process time monitoring when combined with a compatible in-line sensor. Loaded with features found in more expensive units, the DT-5TS panel indicator is extremely versatile with selectable inputs. The DT-5TS is fully scalable and possesses three selectable modes allowing it to measure and display RPM/linear speed/rate, elapsed time and process time. Each panel indicator accepts a variety of signal inputs from any sensor providing an NPN, contact, sine wave, or square wave such as pulse generators, proximity sensors, photoelectric sensors, magnetic sensors and NPN OC transistors. Typical applications can range from machine operation timing, rate of change monitoring such as on a conveyor, elapsed time of oven curing etc. with any variety of compatible sensor inputs desired.

line
Features
line

Highly accurate (± 0.008% ± 1 digit) makes ideal for process control and analysis
Large 6 digit LED display plus two smaller 6 digit secondary displays allow easy viewing from greater distances
Scalable programming gives user the flexibility to set up and monitor virtually any process
Selectable update time allows operator to speed up/slow down display changes to facilitate process
Wide range power voltage (85 - 264VAC, 50/60Hz) eliminates need for having to purchase and wire an additional power transformer
Great versatility with multiple sensor input capability in one unit: NPN open collector, contact and square or sine wave sensor inputs.
Front cover protection eliminates accidental bumping of keypad to incorrect program
IP66 front cover protection keeps water out, enables usage in compatible plant wash-down operations
DC power source output to power compatible sensors saves money by eliminating need for separate power supply
Selectable decimal point enables higher resolution display potential
1/8 DIN size panel cut out permits easy, industry-standard mounting

line
Specifications
line

Measuring Range	10 - 99,999 rpm (at 1 p/r) 0.2 - 30,000 rpm (at 60 p/r)
Display Range	Tachometer/Rate Meter: 0 - 999999 with selectable decimal point Elapsed Time: 0:00:00 - 9:59:59 or 0.00 - 999.99 sec Process Time: 0:00:00 - 0:59:59 or 0.00 - 999.99 sec
Scalable	Yes (with outputs, see modules)
Accuracy	± 0.008 % ± 1 digit
Display Update Time	0.2, 0.5, 1, 2, 5, 10, 15, 30, 60 seconds (selectable)
Input No. of P/R	1 to 9,999 (programmable)
Input Signal Characteristics	NPN open collector input: max. frequency 100 kHz / Contact input: max. frequency 20 Hz / Square wave input: max. frequency 30 kHz - Sine wave input (magnetic pickup): max. frequency 10 kHz
Sensor Power Supply	12 VDC (150 mA)
Power Requirement	85 - 264 VAC (50/60 Hz) Optional (9 - 35 VDC at 1 W also available)
Ambient Temperature	32 to 113 °F (0 to 45 °C)
Dimensions	5.27" x 3.78" x 1.89" (134 x 96 x 48 mm)
Weight	0.66 lb (300 g)
Warranty	2 Years
Included Accessories	Mounting adapters and mounting screws, decal sheet
