Shimpo DT-725 Digital Stroboscope

Range: 40 - 12,500 RPM/FPM

Power: Internal Battery Powered

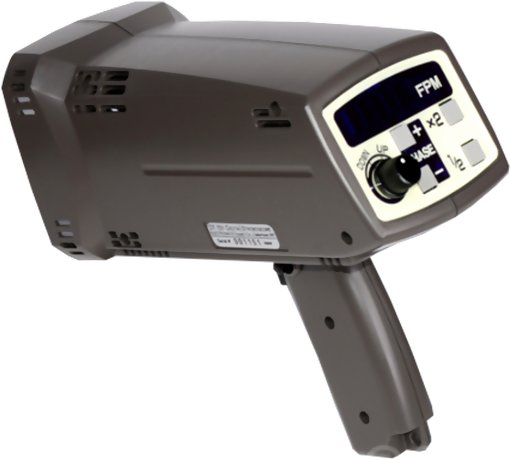

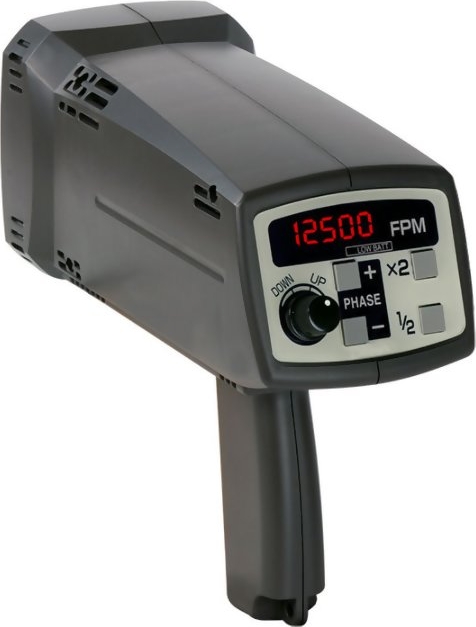

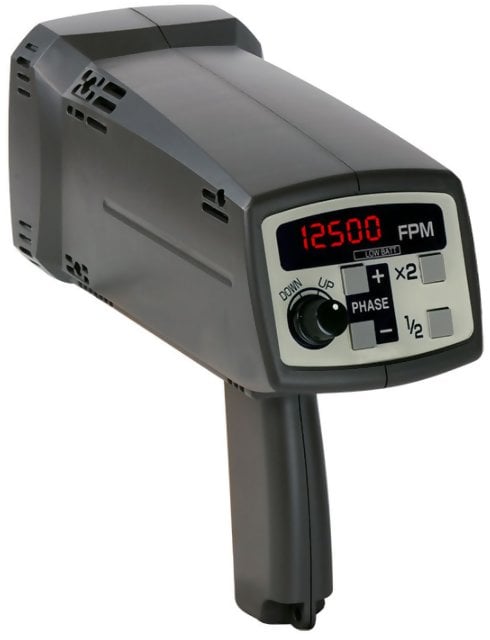

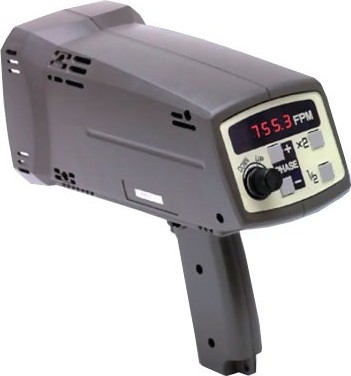

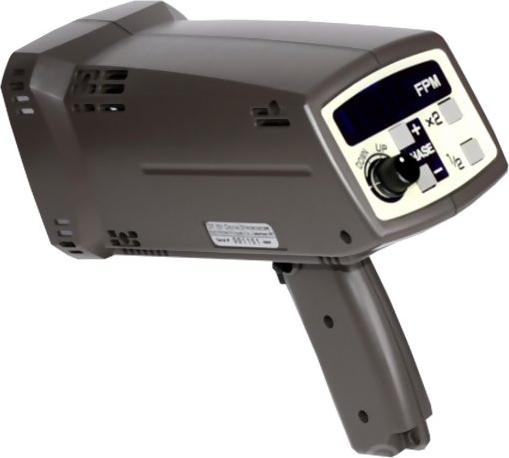

The Shimpo DT-725 Digital Stroboscope is a highly stable, industrial-quality instrument for non-contact RPM measurement as well as for inspection and observation of moving parts by "freezing" or "slowing down" the action.

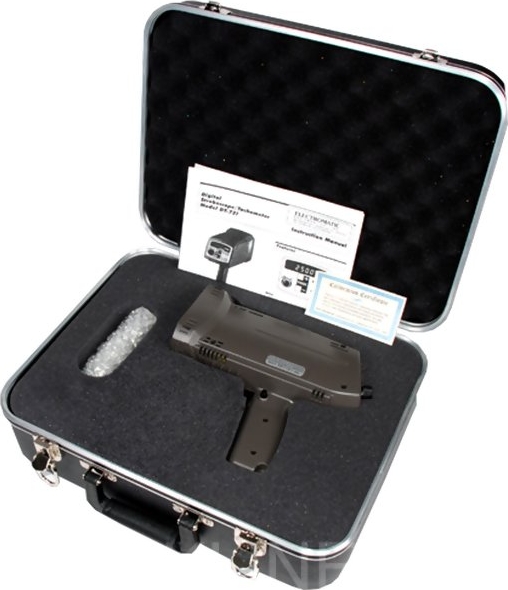

A "Kit" option is offered which also includes a carrying case and spare flash tube at minimal additional cost.

line

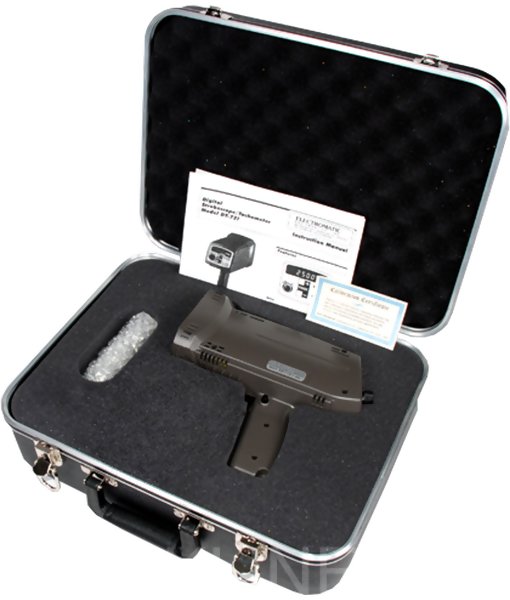

Kit Contents
line

Shimpo DT-725 Digital Stroboscope
Spare flash tube at minimal additional cost
Carrying case

line
Features
line

Highly accurate speed control with drift-free operation

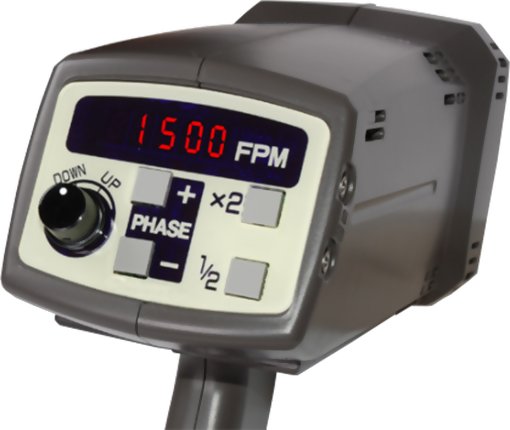

Easy-to-use controls with bright LED display
Instant double (2x) and half-rate (÷2) flash selection
Accepts input from sensor for external flash triggering
Phase shift adjustment permits movement of objects to desired position for convenient observation
Extremely lightweight and rugged

line
Specifications
line

Flash Range	40.0 - 12,500 FPM
Accuracy	± 0.02% of reading
Resolution	(0.1) 40.0 - 4,999.9 (0.2) 5,000.0 - 7,999.8 (0.5) 8,000.0 - 9,999.5 (1.0) 10,000.0 - 12,500.0
Display	5-Digit LED, 8 mm high

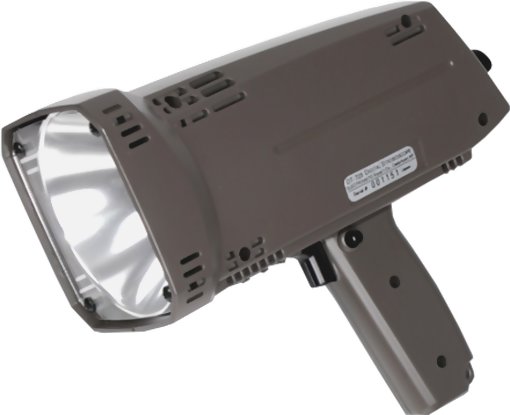

Flash Tube	Xenon, 10 watt
Tube Life	100 million flashes
Flash Duration	10 - 15 µs
Signal Output	NPN Open Collector, 24 VDC max.
Phase Shift	0 - 359° (Internal Mode)
Operating Time	1 hour
Charging Time	15 Hours
Low Batt Indicator	LED light on display
Operating Temp	32 to 105° F (0 to 40° C)
Weight	1.50 lbs. (680 g)
Warranty	1 years

line
External Trigger Input Signal
line

12 - 24 V DC through a 3-wire NPN sensor (requires external power supply)
12 V DC through a 2-wire proximity sensor(Leakage Current 1 mA max. Load current 8 mA min.)
Switch or Relay Contact

line
Dimensions
line

line
Downloads
line

Shimpo DT-725 Digital Stroboscope - Data Sheet

Shimpo DT-725 Digital Stroboscope - Instruction Manual

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE
Shimpo DT-725 Digital Stroboscope, 40 - 12,500 RPM / FPM, 115V View Model Details	Discontinued
Shimpo DT-725-KIT Digital Stroboscope Kit, Carrying Case and Spare Flash Tube, 40 - 12,500 RPM / FPM, 115V View Model Details	Discontinued
Shimpo DT-725-2 Digital Stroboscope, 40 - 12,500 RPM / FPM, 230V View Model Details	Discontinued
Shimpo DT-725-KIT-2 Digital Stroboscope Kit, Carrying Case and Spare Flash Tube, 40 - 12,500 RPM / FPM, 230V View Model Details	Discontinued

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Shimpo DT-725 Digital Stroboscope, 40 - 12,500 RPM / FPM, 115V View Model Details

Discontinued

Shimpo DT-725-KIT Digital Stroboscope Kit, Carrying Case and Spare Flash Tube, 40 - 12,500 RPM / FPM, 115V View Model Details

Discontinued

Shimpo DT-725-2 Digital Stroboscope, 40 - 12,500 RPM / FPM, 230V View Model Details

Discontinued

Shimpo DT-725-KIT-2 Digital Stroboscope Kit, Carrying Case and Spare Flash Tube, 40 - 12,500 RPM / FPM, 230V View Model Details

Discontinued
