Product Description
Data-Logging Digital Tension Meter
Small angle of contact minimizes twisting interference
For Yarns, Fibers, Wire, Cables, Optic Fibers, Tire Cord, Webs & Warps, Tapes & Bands, Tows, Ribbons & more

9 ranges, 0.1 - 200.0 g to 5 - 50 Kg

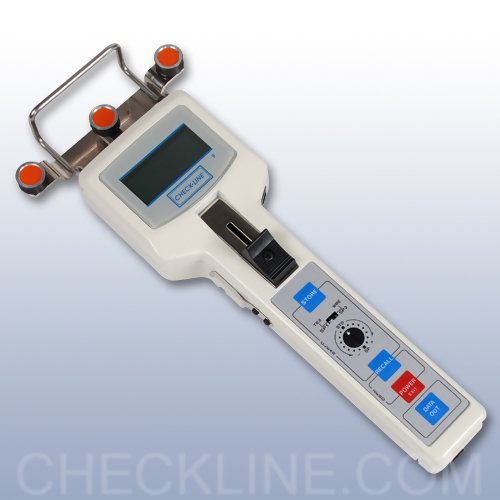

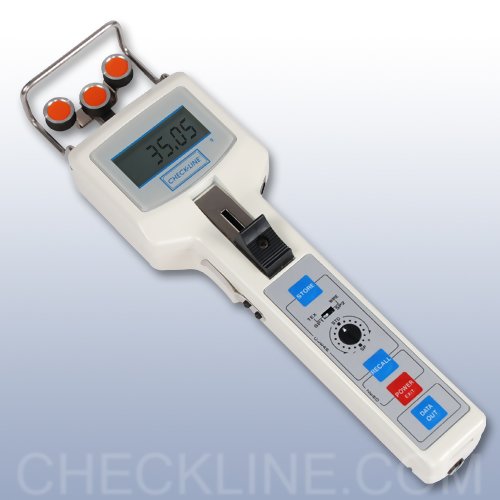

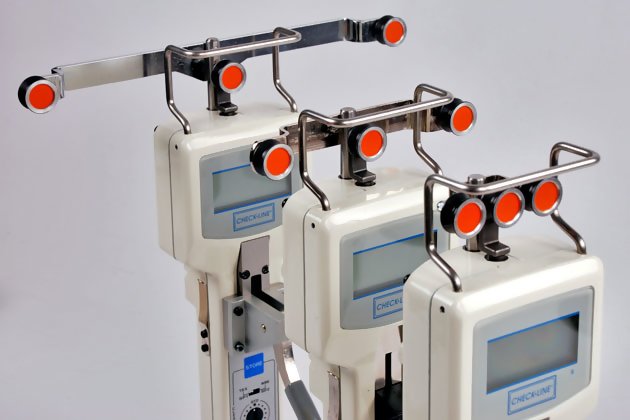

The new CHECK-LINE® DTMX Digital Tension Meters accurately measure the running line tensions of yarns, fibers, wires, cables, optic fibers and similar process materials.

It's unique design combines the latest microprocessor technology with the reliability, simplicity and ruggedness found in CHECK-LINE mechanical tension meters.

The DTMX provides the critical process information required to meet today's strict quality reporting systems mandated under ISO 9000 guidelines.

  • A built-in memory for 100 data values and statistics
  • Download capability of stored data and statistics to printers, computers or chart recorders

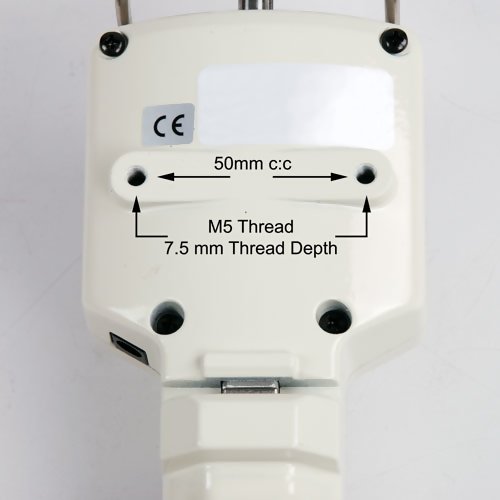

  • Hand-held or continuous on-line use


line

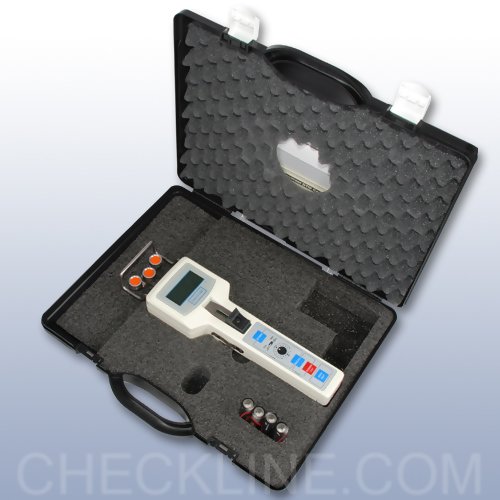

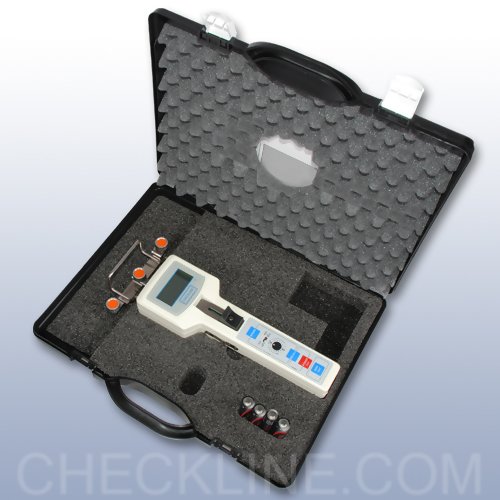

Kit Contents
line

  • DTMX Data-logging Digital Tension Meter
  • Four (4) AA batteries
  • Output connector
  • Operating instruction manual
  • Carrying case


line
Features
line

  • Precision Strain Gauge Sensing for Highest Accuracy
    A precision strain-gauge sensing system accurately measures the force on the middle sensing roller. This is converted into a highly accurate tension measurement using proprietary calibration formulas which correct for material diameters, rigidities, gravity and other critical parameters.
  • Thickness Compensator Automatically Adjusts Calibration
    The microprocessor automatically fine-tunes the calibration to correct for different material diameters permitting a single DTMB or DTMX to be used on a wide range of process materials without sacrificing precision or accuracy.
  • Field Adjustment for Fine Tuning of the Calibration
    Increase or decrease the displayed readings in 1.5% increments or select Special Calibration (SP).
  • User-Selected Calibration Formulas For Highest Accuracy
    Select "Textile", "Wire", or "Special" calibration (SP1 or SP2). Special calibration is performed by the factory or by the end user with a specific sample of the process material.
  • High-Speed Measurement Captures Max, Min & Peak Tension Values
    Tensions are sampled 62 times per second and averaged over a user selected interval of 0.5, 1, 2 or 4 seconds. The maximum, minimum and peak values are stored for recall to the display.

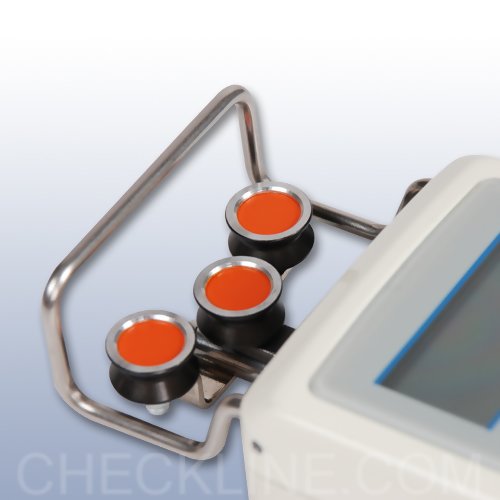

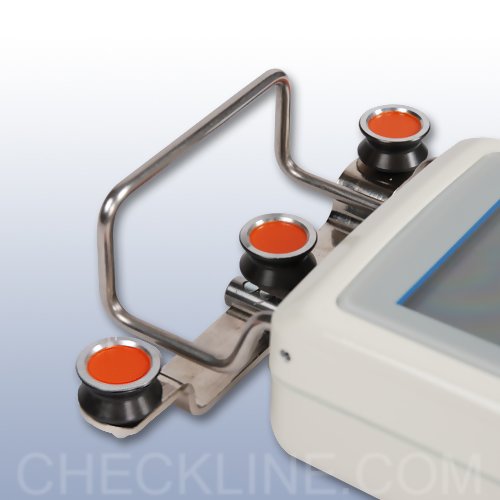

  • Precision V-Grooved Rollers for Line Speeds Up to 5,000 m/min
    Ball-bearing mounted, V-grooved rollers are hard coated aluminum for speeds up to 2,000 m/min. Optional High-Speed Rollers (U) are offered for 5,000 m/min. Hardened steel, ceramic and plastic rollers are also available
  • Rugged Aluminum Housing For Long-Term Durability
    Die-cast aluminum housing and surface-mount electronics insure trouble free operation in the toughest environments.
  • Store Tension Data & Output to Printers & Computers
    Store tension data on-demand or continuously with the DTMX built-in datalogger. Stored data and statistics can be output to printers, computers or chart recorders.

Advanced Features

  • Built-in Datalogger: The DTMX built-in datalogger stores up to 100 tension values and automatically calculates maximum, minimum, peak, average and standard deviation values. The data values and summary statistics can be recalled to the display for viewing or downloaded to a printer or Personal Computer.

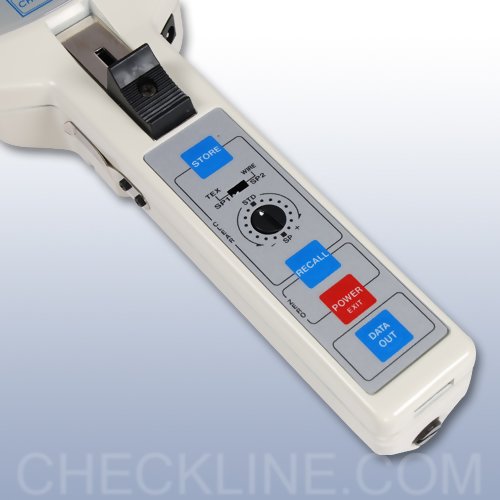

  • The datalogger can be set to store in two different modes. In the On-Demand Mode, a tension value is stored, each time the STORE key is pressed. In the Continuous Mode, the STORE key is pressedto start continuous datalogging. Each displayed value will be stored until the memory is filled or until the STORE key is pressed again to stop the datalogging. The stored data is retained in memory for the life of the batteries.

Applications

  • Yarns
  • Fibers
  • Wire
  • Cables
  • Optic Fibers
  • Tire Cord
  • Webs & Warps
  • Tapes & Bands
  • Tows
  • Ribbons


line
Specifications
line

*Accuracy± 0.5% Full Scale, ± 1 digit
(10 - 90% of Full Scale)
± 3.0% Full Scale, ± 1 digit
(Remaining portion of range)
Measuring Frequency62 measurements/second
Deflection of Sensing Roller0.2 mm (maximum)
Overload Capacity200% of Full Scale
Display4-Digit LCD, 12 mm high
Display Update Rate0.5, 1.0, 2.0 or 4.0 seconds, dip-switch selectable
Standard MemoryLast, maximum, minimum and peak
Field Calibration Adjustment± 7 steps, 1.5% per step
Battery TypeFour (4) 1.5 V AA (included)
Battery Life20 hours, continuous use
Auto Power OffAfter 2 minutes of non-use
Roller MaterialHard Coated (Standard)
Hardened Steel (ST) (optional)
Ceramic (CE) (optional)
Plastic (PL) (optional)
Maximum Speed2000 m/min (standard)
2500 m/min (U)
Housing MaterialDie-cast Aluminum
Weight1.43 lbs. (650 g)
Operating Temperature32 to 132 °F (0 to 45 °C)
WarrantyOne year
Memory Capacity100 values plus maximum, minimum, average, peak, standard deviation and memory location
Memory OperationContinuous Mode: Automatic storage of each displayed value until memory is full
On-Demand Mode: Displayed value is stored when STORE key is pressed
Serial OutputRS-232C (4800 baud, 8 bit word length, no parity, 2 stop bits)
Analog Output0-1 VDC, proportional to tension range
AC Adapter (optional)6 VDC @ 300 mA, for continuos in-line use

* Quoted accuracy can only be gauranteed on standard factory calibration materials. Because of the wide variety of customer samples, accuracy may exceed standard tolerances.


line
Ranges
line

ModelRangeOuter Roller Spacing c:cTextilesWire
DTMX-2000.1 - 200.0 g38 mm1000 Denier0.15 mm (max)
DTMX-5000.1 - 500.0 g38 mm0.05-0.25mm0.05-0.25 mm
DTMX-1K50 - 1000 g38 mm0.10 - 0.40 mm.10 - 0.25 mm
DTMX-2K200 - 2000 g38 mm0.30 - 0.70 mm0.30 - 0.70 mm
DTMX-2.5KB250 - 2500 g100 mm0.30 - 0.70 mm0.30 - 0.70 mm
DTMX-5KB500 - 5000 g100 mm0.50 - 1.20 mm0.40 - 1.00 mm
DTMX-10KB1.00 - 10.00 Kg100 mm0.70 - 1.40 mm0.70 - 1.20 mm
DTMXL-20KB*2.00 - 20.00 Kg200 mm1.00 - 2.00 mm1.50 - 1.70 mm
DTMXL-50KB*5.00 - 50.00 Kg200 mm1.50 - 3.00 mm1.70 - 3.00 mm

Notes

  1. Application Guidelines for Textiles refer specifically to nylon monofilament.
  2. Application Guidelines for Wire refer to soft annealed copper wire
  3. DTMB models are calibrated with monofilaments only.
    If customer sample varies greatly in diameter or rigidity,
    special calibration with customer sample is recommended.

*These models require customer supplied samples for calibration.


line
Special Purpose Models
line

Optic Fibers - FTMX

Uses low-inertia, 32 mm dia. rollers for fragile materials sensitive to bending over a small radius. Rollers are available in plastic or aluminum.

Tension Ranges (g): 0-200, 0-500, 50-1000, 200-2000

line

Limited Access - DTFX

Long, flat fingers and miniature V-grooved rollers permit measurement in areas with limited space or tightly grouped filaments.

Tension Ranges (g): 0-200, 0-500, 50-1000, 200-2000

line

Tapes and Bands - RTMX BTMX

Cylindrical rollers are available in 10, 15, 20 and 30 mm widths with single or dual flanges.

Tension Ranges (g): Refer to Application Guide

line

Lever Model - DTMXL

The Lever is used instead of the thumb-piece for high tension applications. The lever is optional on the 10 Kg and 20 Kg model
