Hand-Held Plus Wireless Load Cell Instrumentation

---

Overload counter

---

User settable 90db audible overload alarm

---

Wireless Range 700 metres

---

Multiple display units – tonnes, lbs, kg and kN

---

Hand-Held Plus Wireless Load Cell Indicator

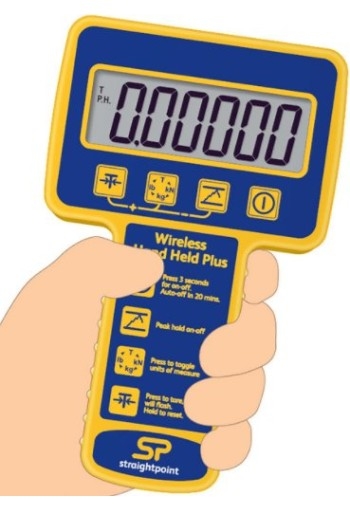

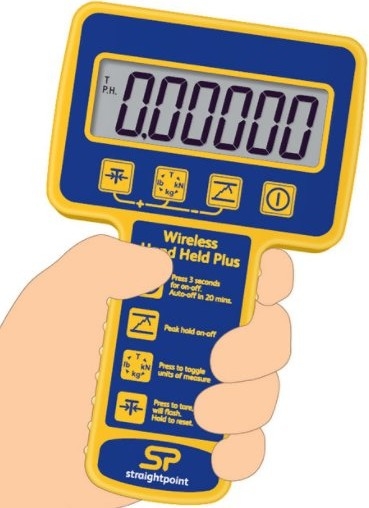

The Straighpoint SW-HHP Hand-Held Display is our rugged and versatile digital handheld display with a broad range of features and suitable for all Straightpoint loadcell products.

At the heart of the ergonomically designed Handheld Plus is a powerful PCB providing industry leading features such as user selectable units of measure (tonnes, lbs, kg and kN), programmable audible overload alarm, peak hold, pre-set tare and a user resettable overload counter.

This crucial overload alarm counter is a requirement for many safety and quality control departments as it keeps track of overload events allowing the load cell in question to be removed from service immediately following the calibration voiding overload event.

The load cell in question can then be sent out for proper testing and, if necessary, recalibration before re-entering service.

Features

• Overload counter
• User settable 90db audible overload alarm
• Multiple display units – tonnes, lbs, kg and kN
• Peak hold
• Preset Tare
• Wireless Range 700 metres

Specifications

Battery Type	2 x AA
Battery life	60 hours continuous
Operating Temp	-10°C to 50°C or 14°F to 122°F
Display type	6 digit 25mm or 1" LCD
Display rate	3 Hz
Protection	IP65 or NEMA 4X
Max Resolution	1:999999
Connectivity	Wireless 2.4 GHz
