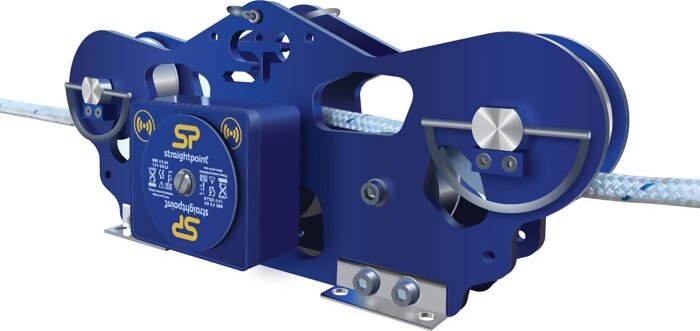

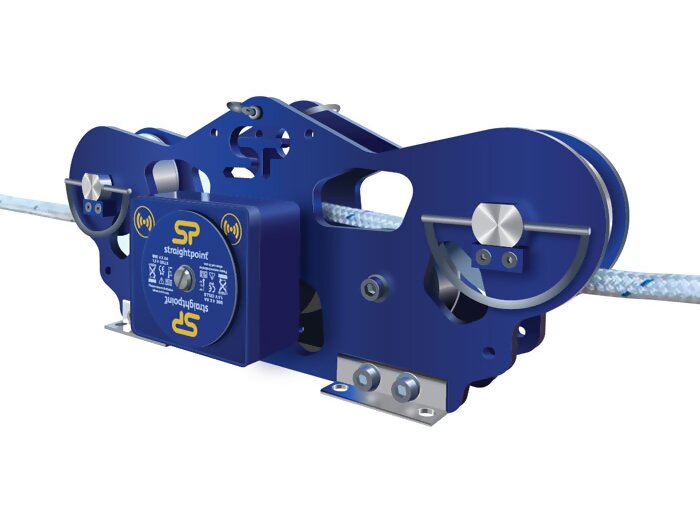

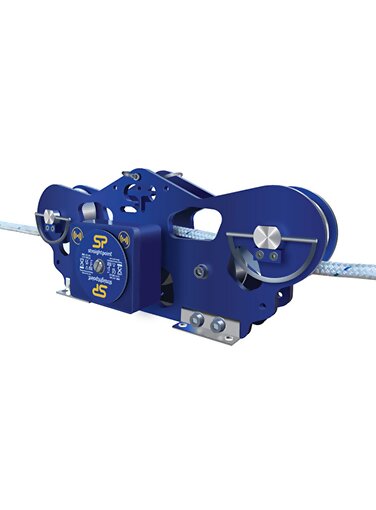

Straightpoint CableSafe Rope Tension Meter
Remote monitoring & recording using FREE smart phone App via Bluetooth
HHP App offers realtime display of data (with user-selected units of Te, Kg, kN, and Lb)
HHP App also offers continuous datalogging into a user-named file

The Straightpoint CableSafe Rope Tension Meter is the continued evolution of SP’s running line tensiometers. Compatible with a wide range of rope and electrical cable diameters – 4-30mm.

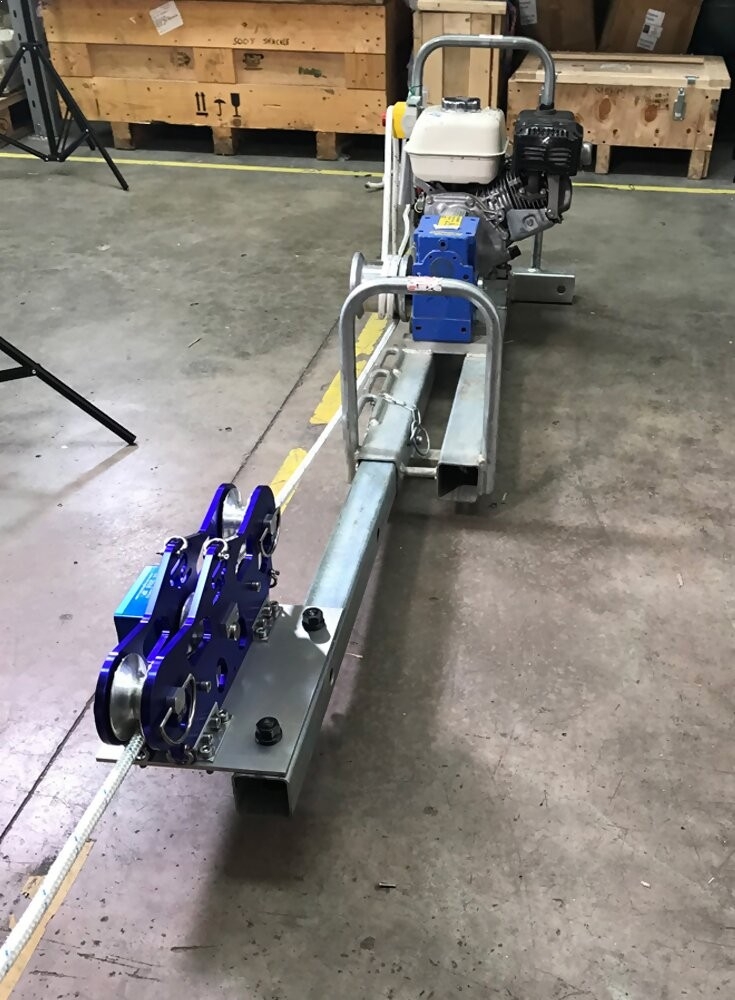

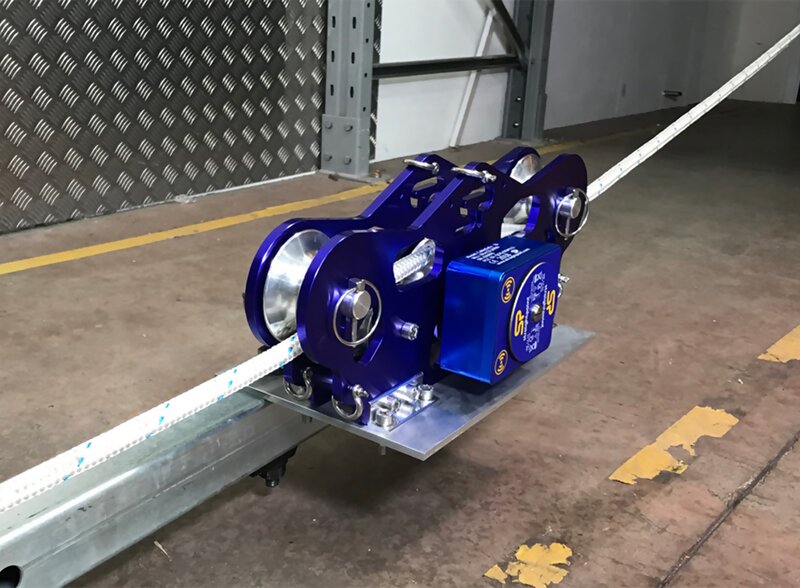

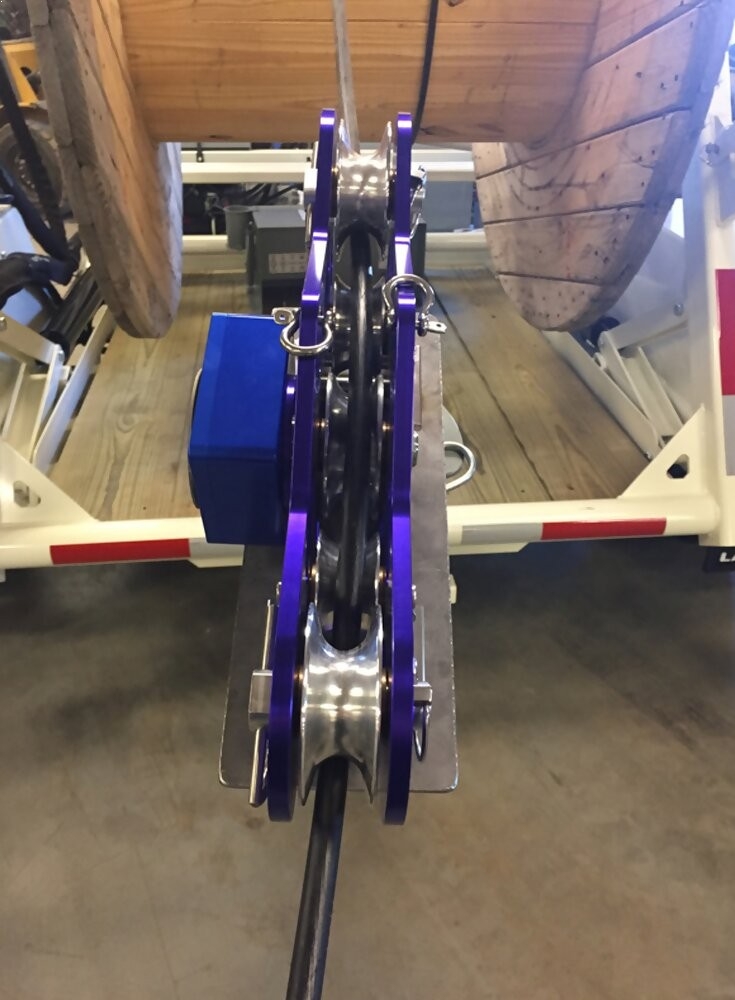

When using a capstan winch to unwind electrical cable from a reel/spool, you will be able to integrate the CableSafe within this setup to ensure that it is being pulled at a safe tension level. This helps the line maintain its transmissions capability, prevent it from becoming a fire hazard risk, and it also stops the need for furthering work in order to remove and replace it. The contractor is gifted with decreased liability and dramatically increased peace of mind. Ideal for the following applications:

  • Measure tension when pulling electrical cables – protect against fractures or elongation
  • Measuring tension on synthetic rope when erecting delicate structures using gin poles and capstan winch

Another example of best use is during the installation of cell phone towers or similar delicate structures. You will be able to use the product to help ensure structure-to-ground ropes, connected to a gin pole and pully system, do not exceed maximum tension whilst lifting sections of the tower to the top. There can be the possibility of the rope becoming snagged and cause greater tension to be loaded upon the system. With heavy materials being lifted to great heights; this would create a major safety hazard leading to a catastrophic failure with the endangerment of lives. Avoid the unknown through accurate monitoring, especially when risks are high.

What distinguishes it apart from previous versions of this type is the developed lightweight design that allows for easy transportation and usage. It also provides up to 500 hours battery life so that you can be assured that it won’t lose power before your work day has ended. The high level IP67/NEMA 6 ingress protection allows the product to be used in a variety of heavy weather conditions and dusty environments. These features, as a collective, means that it will be an invaluable and reliable tool in your work related armoury.

The five wheel design and gravity catches with top sheave pins allows for fast and simple rope attachment setup that also eliminates errors normally caused by changes in the same diameter and sample rigidity. The accuracy is also improved over three wheel alternatives.

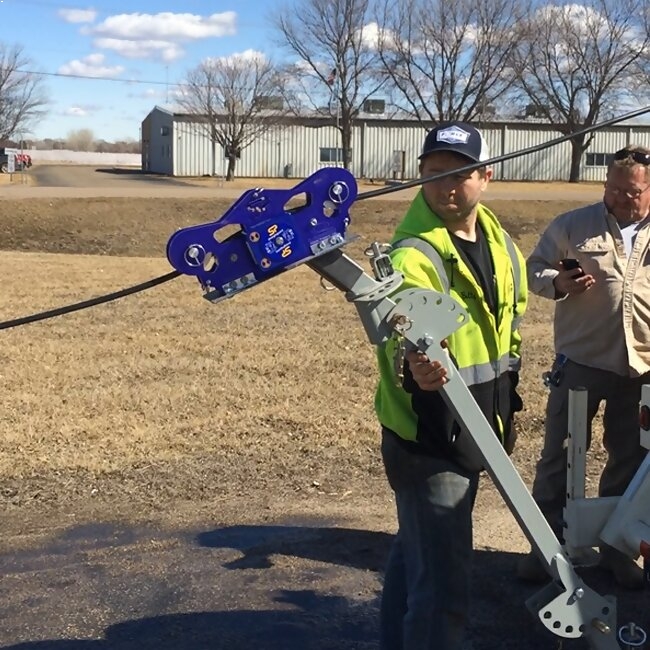

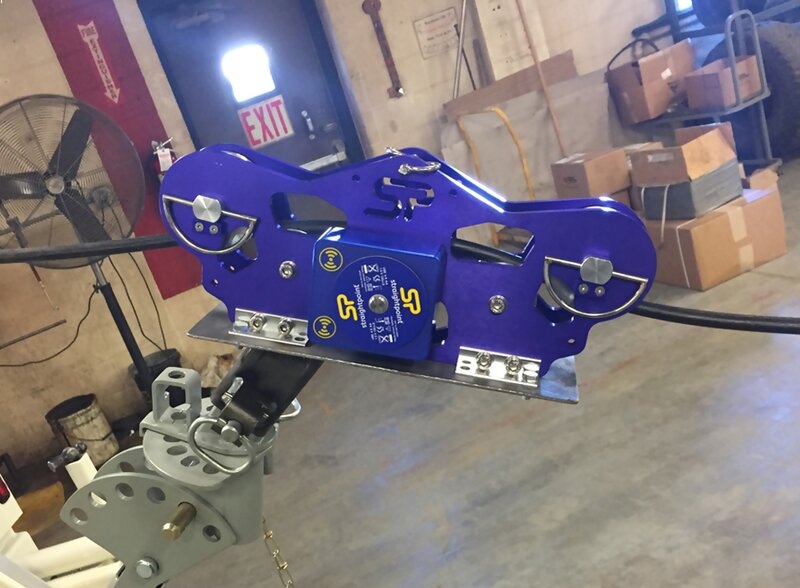

When used with a cable/rope pulling device you can remotely monitor the tension on the line using your smart handheld device via a Bluetooth connection*. You will be able to locate yourself up to 50m/164ft away from the Cable Safe to allow you to survey job progress from a distance.


line
Kit Contents
line

  • Straightpoint CableSafe Rope Tension Meter
  • Proof test certificate
  • Operator Manual
  • Carry / Storage Crate


line

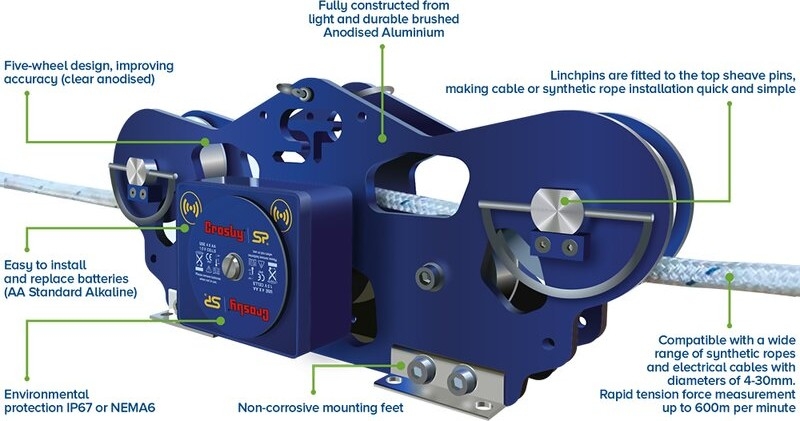

Features
line

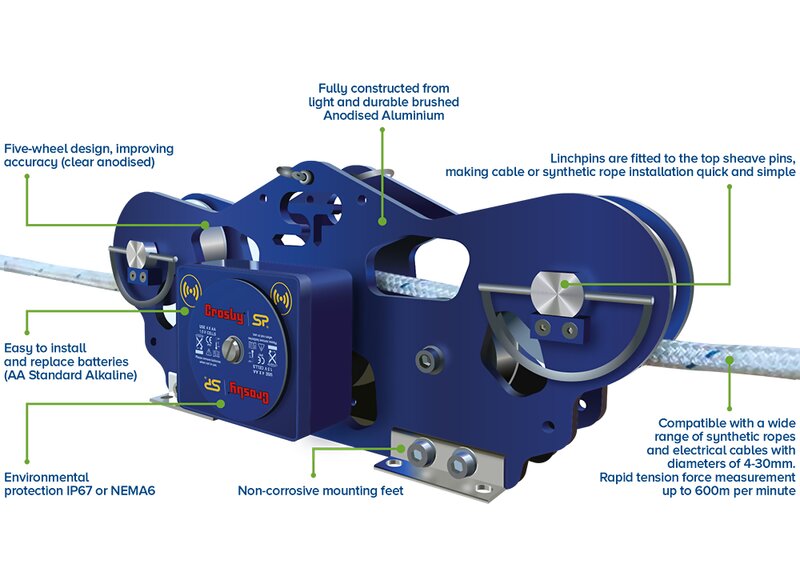

  • Compatible with a wide range of rope diameters – 4-30mm
  • Rapid tension force measurement - Up to 600m per minute
  • Able to use in all weather and air quality conditions
  • Easy to install and replace batteries (4 x AA standard Alkaline)
  • Fully constructed from light and durable brushed Anodised Aluminium
  • Five wheel design improving accuracy (clear anodised)
  • Linchpins are fitted to the top sheave pins make wire rope installation quick and simple
  • IP67 ingress protection / NEMA 6 – heavy protection against dust and rain
  • Simple to use and setup
  • Remote monitoring option using smartphone via Bluetooth
  • Maintenance-free heavy duty needle bearings
  • Water weight Testing
  • Overhead Weighing
  • Loadcell Rental
  • Bollard PullingTug Testing
  • Stevedoring
  • Heavy Lift
  • Load sense on jib winches
  • Ship to ship transfers (STS)
  • Figure 8ing
  • Warranty 1-Year (FREE Extension to 2-Years with Product Registration)


line
Specifications
line

Accuracy+/- 2% of Full Scale
Part NumberRefer to Ranges Table
CapacityRefer to Ranges Table
Resolution0.01t | 20lb
Rope DiameterRefer to Ranges Table
Weight4.5kg | 10lb
Battery Type4 x AA Alkaline
Battery Life500hrs
Operating Temp-10°C to +50°C / 14°F to 122°F
RangeBluetooth 100m / 328ft
ProtectionIP67 / NEMA 6
Maximum Fiber Speed2000 ft/min (600 m/min)
