Bluetooth wireless range of 100m/328ft

---

Designed to work along the length of 10mm chain

---

Lightweight load cell easily attaches to the length of chain

---

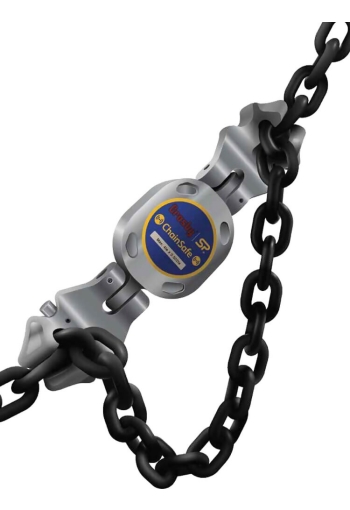

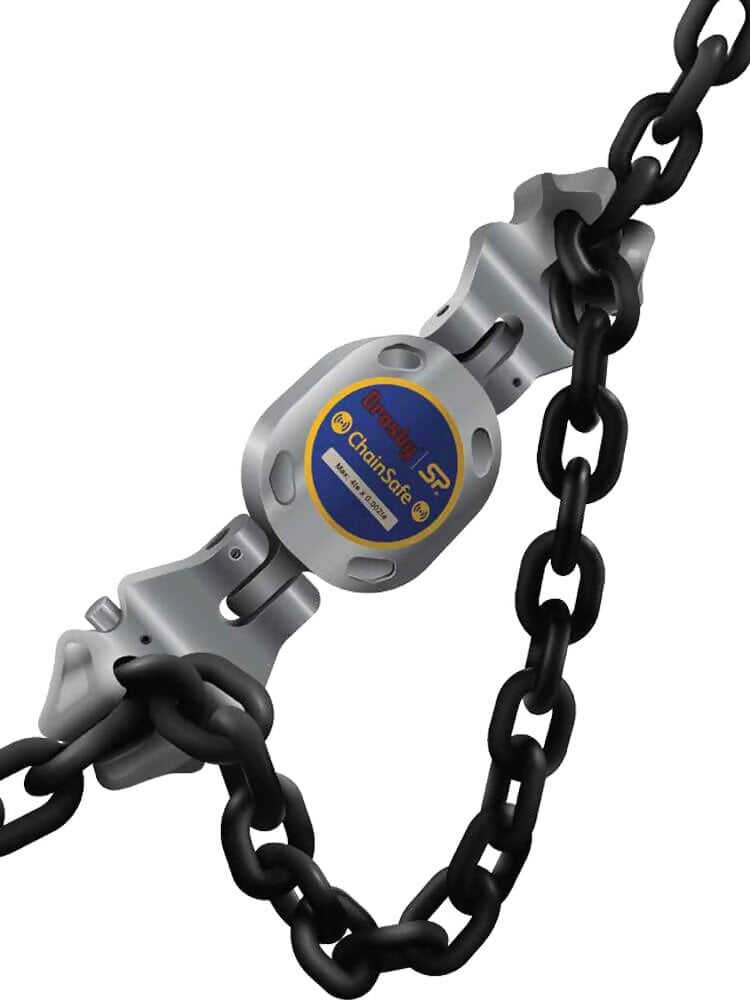

The Straightpoint ChainSafe Chain Load Monitoring Bluetooth Tension Load Cell is a Bluetooth wireless tension load cell capable of load monitoring of capacities up to 4te. Specifically designed for use along the length of the chain with an array of The Crosby Group chain fittings for applications where chain slings, chain lashing and tie-downs are used in industries such as transportation and construction to secure loads and precious cargo.

The ChainSafe design has an unrivalled strength to weight ratio with a completely sealed stainless steel enclosure providing IP67 or NEMA6 environmental protection, making this industry-leading dynamometer even more suitable for use in the harshest environments.

The versatile chain load monitoring device has an update rate of 1Hz and the Bluetooth signal effortlessly connects to any iOS or Android smartphone that has our free HHP app installed. This will provide the operator with a wireless range of up to 328ft or 100m – measuring the load from a safe distance. The app will also allow the operator to log data versus time or on events such as over or underload and the adjustable alarm will alert the operator on their smartphone if any overload is occurring.

Kit Contents

Straightpoint ChainSafe Chain Load Monitoring Bluetooth Tension Load Cell Lithium Thionyl Chloride (non-replaceable) Calibration & proof test certificate Multi-lingual user manual (HHP App) Carry / transit case RFID Tagged 2-year warranty Design validated by F.E.A.

Features

• Designed to work along the length of 10mm chain.
• Bluetooth wireless range of 100m/328ft.
• Lightweight load cell easily attached to the length of chain.
• No battery change required - Battery life 5 years based on 3hrs use per day
• Environmentally protected to IP67/NEMA6.
• Internal Antennae.
• Conforms to EN1677:2008
• Fatigue tested to 30000 cycles to 1.5x WLL.

Specifications

Part Number:	CS4T-CROSBY
Crosby Part number	2789536
Capacity MET	4te
Capacity IMP	8800lb
Resolution MET	0.002te
Resolution IMP	4lb
Weight MET	2.5kg
Weight IMP	5.5lb
Safety Factor	4:1
Battery Type	Lithium Thionyl Chloride (non-replaceable)
Battery Life	5 years based on 3hrs use per day.
Operating Temp	-10°c to +50°c / 14˚ to 122˚F
Accuracy	+/- 0.2% of full scale
Range	100 metres / 328 feet
Data Rate	1Hz
Protection	IP67/NEMA6
Recommended fittings	3/8" (10mm) G100 Chain fittings

Applications

• Lashing
• Load Securement
• Tie Downs
• Transportation
• Small cranes, chain sling legs
• Towing chains
• Tension in sling legs
