StraightPoint Handheld Plus Wireless and Wired Load Cell

See More Dynamometers Tension Load Cells
Price:
$2,184.00 - $2,923.00
warrenty

Product Description
Displays up to 4 load cells simultaneously
Wireless range 1000m or 3280ft (ATEX 500m or 1640ft)
Low battery warning

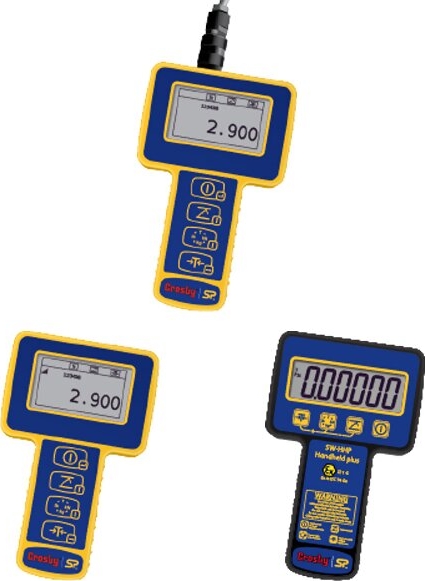

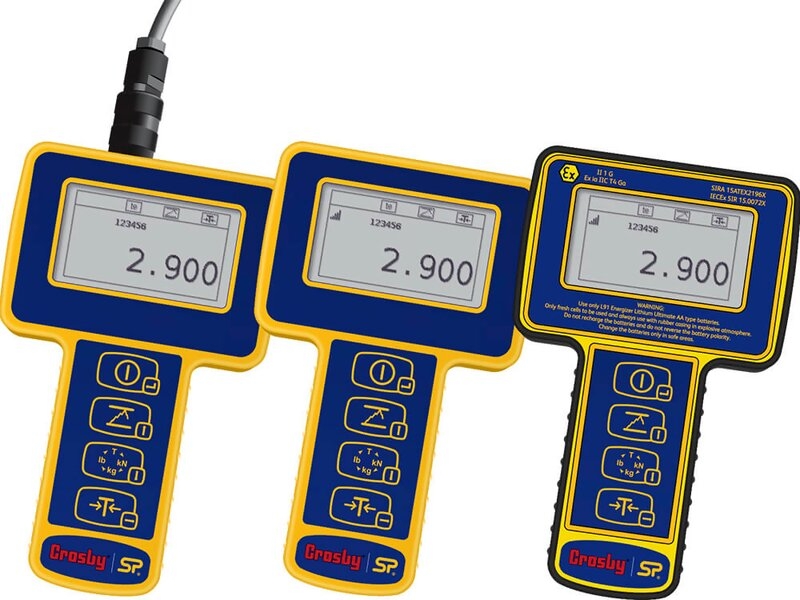

The StraightPoint Handheld Plus Wireless and Wired Load Cell Instrumentation is a rugged and versatile digital handheld display with a broad range of features and suitable for all Straightpoint load cell products.

At the heart of the ergonomically designed Handheld plus is a powerful PCB providing industry leading features such as user selectable units of measure (tonnes, lbs, kg and kN), programmable audible overload alarm (HHP & SW-HHP), peak hold, pre-set tare and a user resettable (HHP & SW-HHP) overload counter.

This crucial overload alarm counter is a requirement for many safety and quality control departments, as it keeps track of overload events, allowing the load cell in question to be removed from service immediately, following the calibration voiding overload event. The load cell in question can then be sent out for proper testing and, if necessary, recalibration before re-entering service.

The HHP is suitable for connection via cable to any Straightpoint cabled load cell product and easily adapted to any other manufacturers’ load cell product with a mv/v output.

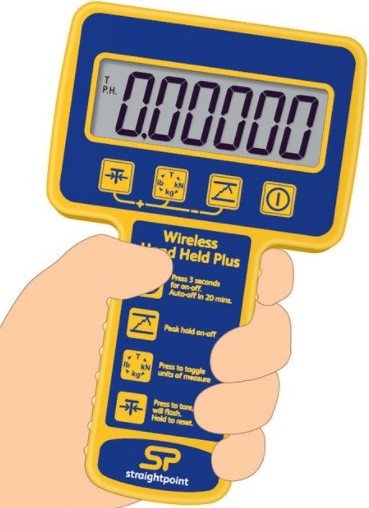

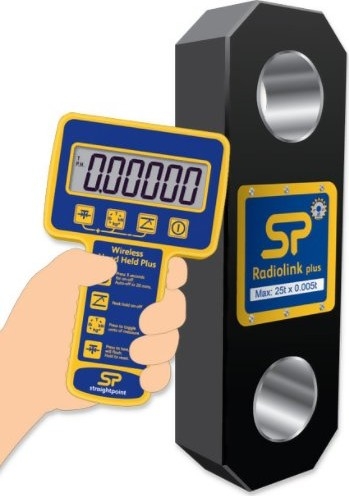

In addition to the standard HHP the SW-HHP is suitable for connection to any Straightpoint wireless load cell, has a range of up to 1000m/3280ft (ATEX 700m/2300ft) and is supplied as standard with the Radiolink plus load cell.


line
Kit Contents
line

  • StraightPoint Handheld Plus Wireless and Wired Load Cell Instrumentation
  • AA Batteries
  • Operator Manual


line
Features
line

  • Overload counter
  • User settable 90db audible overload alarm (not ATEX)

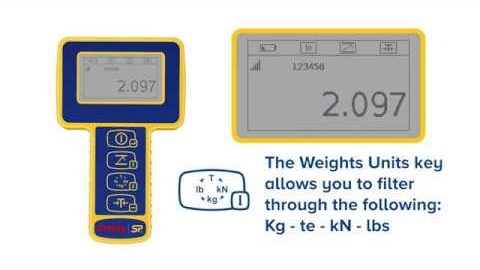

  • Multiple display units – tonnes, lbs, kg and kN
  • 100Hz Peak hold
  • Pre-set tare
  • Unrivalled Wireless range 1000m/3280ft
  • 2 year warranty

Ideal for

  • Radiolink Plus
  • Wireless Load Shackle
  • Wireless Compression
  • Wirelink Plus
  • Miniweigher Plus
  • Compression Loadcell
  • Shackle Loadcell
  • TIMH
  • ATEX/IECEX


line
Specifications
line

Part Number HHP SW-HHP SW-HHP ATEX
Battery Type 2 x AA 2 x AA 2 X AA Energizer L91
Battery Life 100 hrs continuous 40 hrs continuous 60 Hours Continous
Display Type  240 x 128 Multi line dot matrix with backlight  240 x 128 Multi line dot matrix with backlight 6 Digit 25mm / 1" LCD
Operating Temp -10 to +50 °C / 14 to 122 ˚F -20 to +70 °C / -4 to 158 ˚F -10 to +50 °C / 14 to 122 ˚F
Display Rate 3Hz 3Hz 3Hz
Protection IP65 or NEMA 4X IP65 or NEMA 4X IP65 or NEMA 4X
Excitation 5v N / A N / A
Max Sensitivity 3 mv / v N / A N / A
Max resolution 1 : 999999 (Normal Mode) 1 : 999999 (Normal Mode) 1 : 999999 (Normal Mode)
Connectivity 6-way Female Binder 723 Socket Wireless 2.4 GHz Wireless 2.4 GHz


line
Accessories
line

Wall or Cab Mount Bracket Part Nºs SP SU3282 Crosby 2789228

Constructed from stainless steel and fitted with a viewing angle adjusting mechanism, the SU3282 bracket fits either the HHP or SW-HHP handheld displays. Ideal for wall or cab mounting, leaving the operators to work safely, hands free.

line

External Amplifier Part Nºs SP SA-3420 Crosby 2789096

The SA-3420 external amplifier allows the operator to convert the output of any of the SP cabled load cell products into a three wire 4-20mA analogue output. The weatherproof enclosure is fitted with stainless steel glands and is suitable for connection to a PLC, data logger or other instrumentation.

line

Handheld Rubber Boot Part Nºs SP SU4045 Crosby 2789232

Drop tested to one metre at –30°C, this 70SHA rubber boot is purpose moulded to fit and protect the HHP and SW-HHP handheld display against impact, especially when it is used in the harshest industrial environments.


line
Downloads
line

StraightPoint Handheld Plus Wireless and Wired Load Cell Instrumentation - Data Sheet
StraightPoint Handheld Plus Wireless and Wired Load Cell Instrumentation - HHP Quick Guide
StraightPoint Handheld Plus Wireless and Wired Load Cell Instrumentation - HHP Instruction Manual
StraightPoint Handheld Plus Wireless and Wired Load Cell Instrumentation - SW-HHP Instruction Manual
StraightPoint Handheld Plus Wireless and Wired Load Cell Instrumentation - SW-HHP Quick Guide
