StraightPoint INSIGHT Software

---

Logging at timed intervals, manual or on overload/underload

---

Visual and audible alarms indicate overload, underload, low battery and communications error

---

Zoom in to individual load cell to see data trends and history

---

The StraightPoint INSIGHT Software is supplied with an SW-D USB wireless dongle, allows connection of up to 126 Straightpoint wireless load cells simultaneously onto any Windows tablet or laptop.

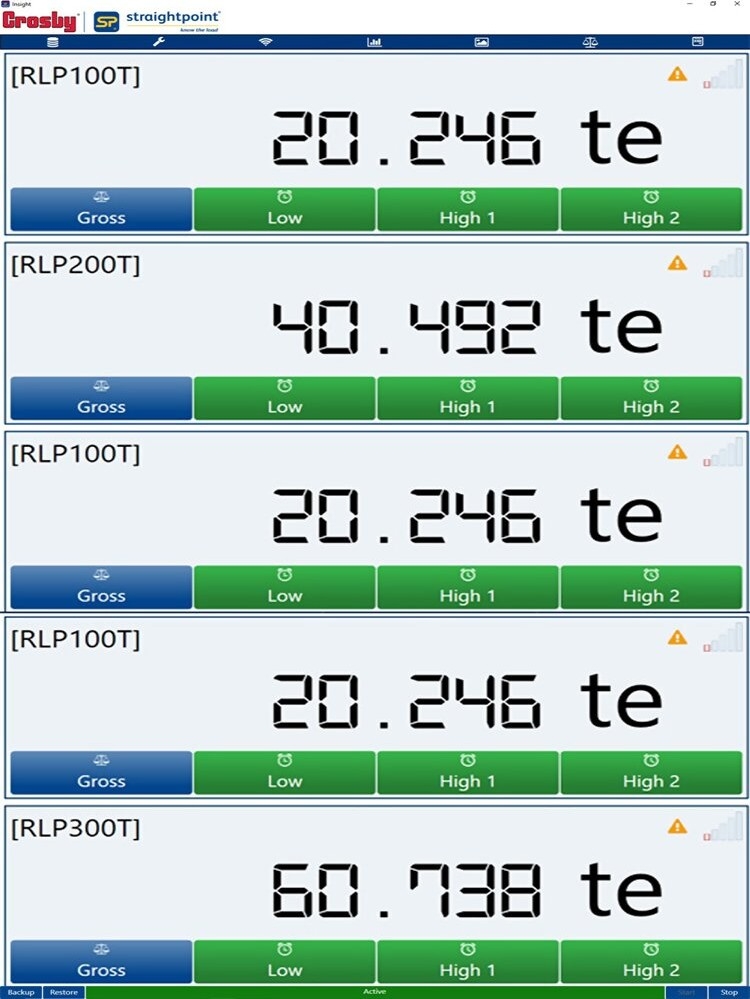

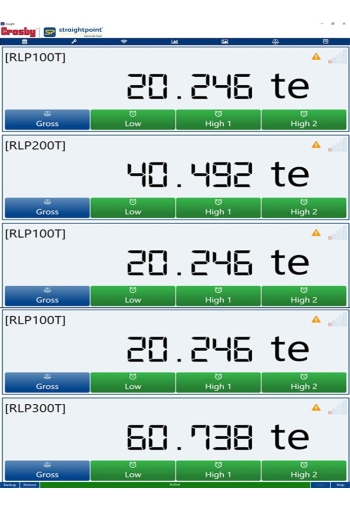

1. Multi-channel display and data logging mode – view and log load data from connected load cells plus totals loads live on screen and directly into a .csv file for later analysis at speeds of up to 200Hz.

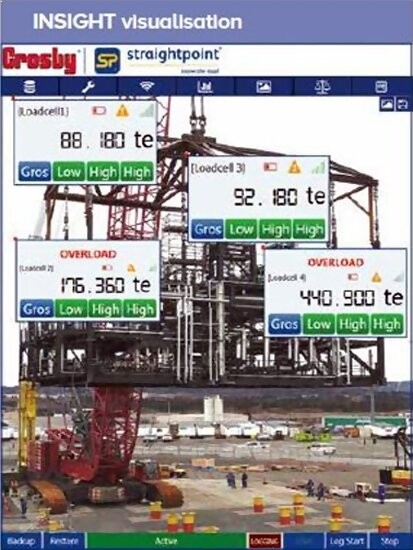

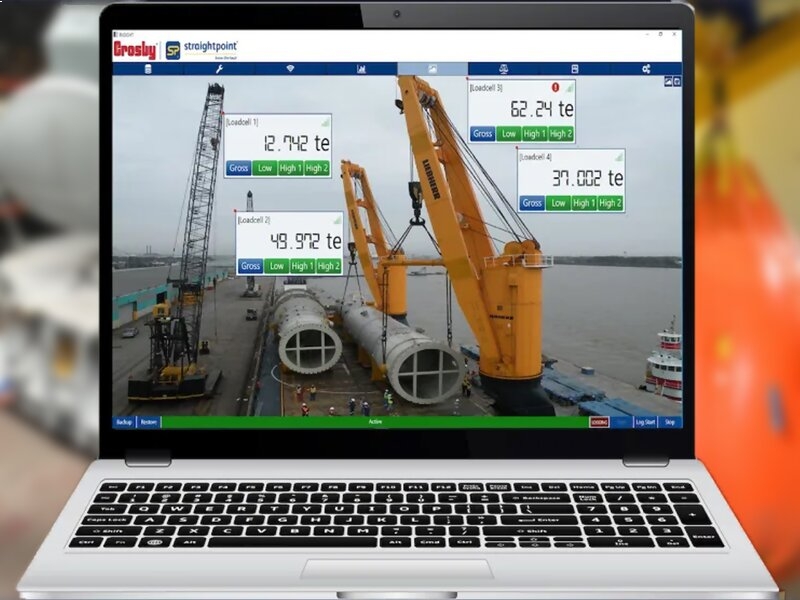

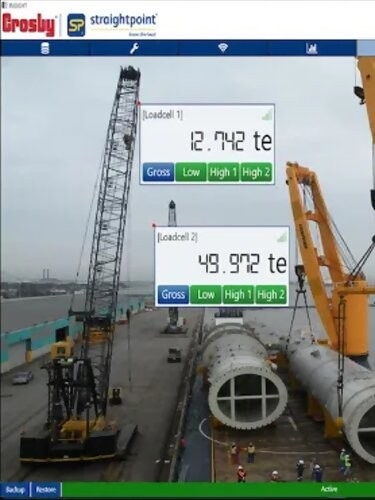

2. Visualisation mode – For complicated lifts import a photo of the lift and drag and drop load cell displays – make the screen look like the lift.
3. Centre of gravity mode – Connect to SP’s range of wireless compression load cells and use this feature to weigh and calculate the centre of gravity of large items and structures.
4. Proof Load Testing - Real time graphing of load test and auto generated test certificates.

Features

• Logging at timed intervals, manual or on overload/underload
• Visual and audible alarms indicate overload, underload, low battery and communications error
• Zoom in to individual load cell to see data trends and history
• 100% wireless, no easily damaged cables
• 700m or 2300ft range

Benefits

• Displays and logs data up to 126 Straightpoint wireless load cells simultaneously
• Three weighing’s per C of G report with averages and statistical analysis to ISO19901
• Plot load cell positioning using measurements or GPS co-ordinates
• Extra fields for operator, client, wind speed and temperature available for reporting

Appications

• Tandem Lifting and Lowering
• Water weight Testing
• Overhead Weighing
• Bollard Pulling
• Tug Testing
• Stevedoring
• Entertainment rigging
• Dynamic load monitoring
• Weighing large industrial items - absorbers, jackets, transformers, generators and modules

Specifications

USB Dongle Operating Tem	-20°C to +70° / -4°F to 158°F
License	License Free
Frequency	2.4 GHz
Range	700 meters / 2300 ft
Load Cell Inputs	Up 126
Operating System	Windows 7, 8 or 10
Max Data Throughput	4000 samples/sec | 20 Loadcells at 200Hz each or max of 126 Loadcells at low sample rate

Downloads

StraightPoint INSIGHT Software - Data Sheet

StraightPoint INSIGHT Software - Instruction Manual

StraightPoint INSIGHT Software - Guide
