StraightPoint LBP Compression Load Cell Loadblock Plus

---

Large LCD Display

---

Pre-lift weight and centre of gravity calculations for large plant and equipment

---

Hydraulic ram testing

---

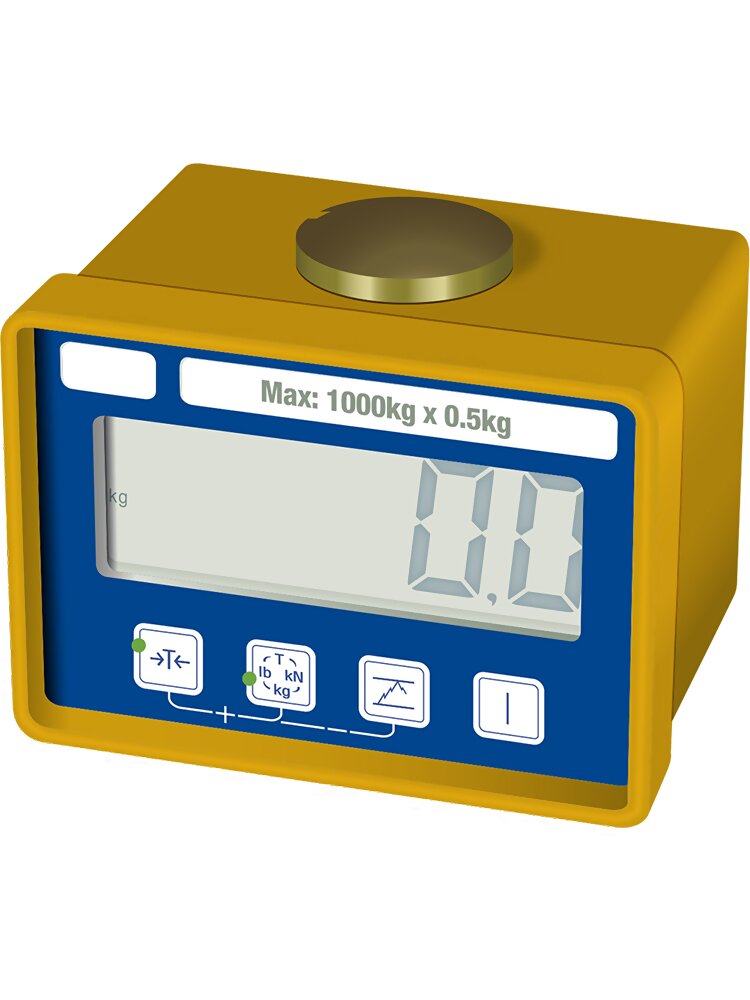

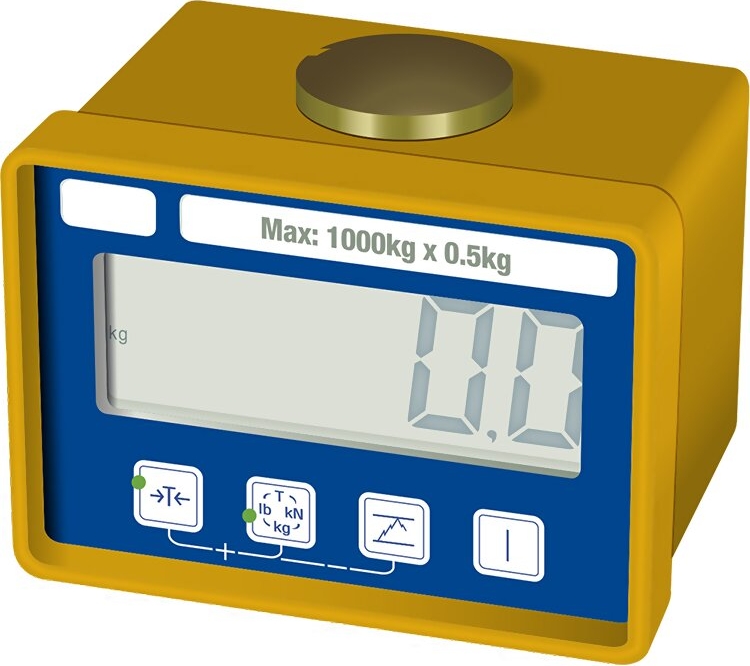

The StraightPoint LBP Compression Load Cell Loadblock Plus is a low capacity, self-indicating compression loadcell, used in many testing and load monitoring applications worldwide. The integral display eliminates the need for a separate display or cable assemble that can be easily damaged. Applications include the measurement of loads associated with the testing of hydraulic presses, cylinders or jacks.

This latest version of our Loadblock has advanced features and benefits providing solutions for today’s complicated load test and force monitoring needs. Features include full function push button controls for tare, units of measure (lbs, kg, kN, and tonnes), peak hold, pre-set tare, audible set-point alarm and an overload counter.

This crucial overload alarm counter is a requirement for many safety and quality control departments as it keeps track of overload events allowing the load cell in question to be removed from service immediately following a calibration voiding overload event. The load cell in question can then be sent out for proper testing and if necessary, recalibration before re-entering service.

The advanced microprocessor based electronics provide the Loadblock Plus with high speed read rates (500 / sec), extreme resistance to industrial level noise and unprecedented stability.
This high stability provides the Loadblock Plus with 5000 + divisions and the highest standard resolution of any self-indicating compression load cell on the market today.

The unit also features a RS-485 serial output port allowing for remote viewing with either the handheld Plus Digital Display / Controller or Windows PC Desktop controller data logging software.

Kit Contents

StraightPoint LBP Compression Load Cell Loadblock Plus Proof test certificate Operator Manual Carry / Storage Case Warranty 1-Year (FREE Extension to 2-Years with Product Registration)

Features

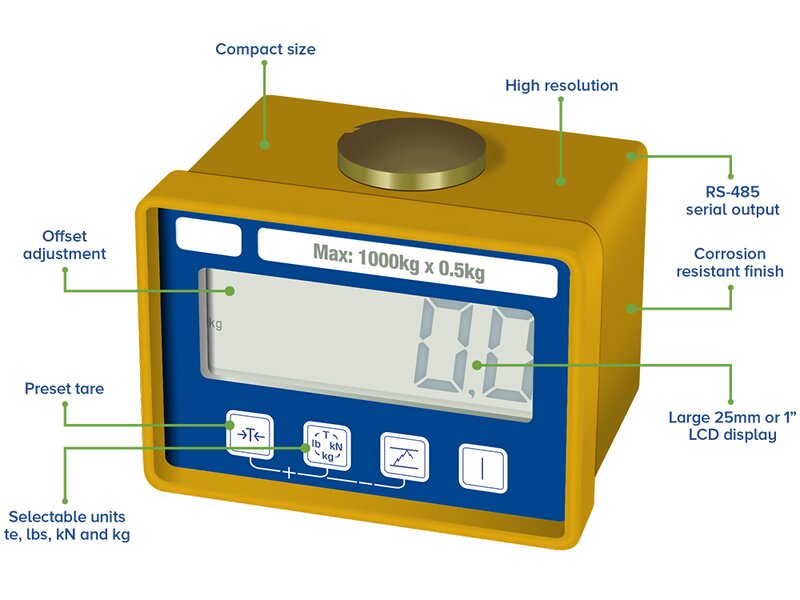

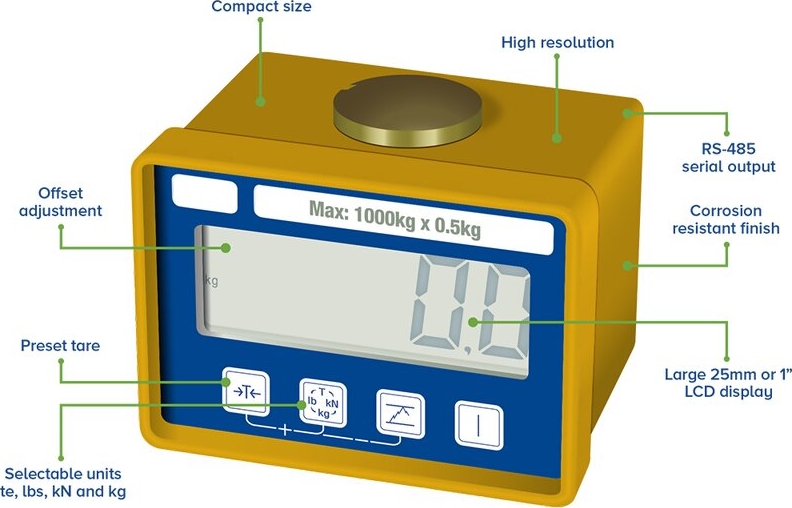

Large LCD Display High Resolution Peak Hold Compact Size

Tare Preset Tare Offset Adjustment

Applications

• Pre-lift weight and centre of gravity calculations for large plant and equipment
• Hydraulic ram testing

Specifications

Protection	IP65 / NEMA4x
Battery Type	9v PP3
Battery Life	80 hrs continuous
Display Type	6 digit 25 mm LCD | 6 digit 1" LCD
Operating Temp	-10 to +50 °C | 14 to 122 ˚F
Accuracy	± 0.1% full scale

Ranges

Part Number	Capacity	Resolution	Weight	Safety Factor
LBP250KG 2789035	250 kg 550 lb	0.1kg 0.2lb	900 g 2 lb	04 : 01
LBP500KG 2789037	500 kg 1100 lb	0.2kg 0.5lb	900 g 2 lb	05 : 01
LBP1T 2789034	1 te 2200 lb	0.0005 te 1lb	900 g 2 lb	05 : 01
LBP2T 2789036	2 te 4400 lb	0.001 te 2 lb	1.5 kg 3.3 lb	05 : 01
LBP5T 2789038	5 te 11000 lb	0.001 te 2 lb	3.1 kg 6.8 lb	05 : 01

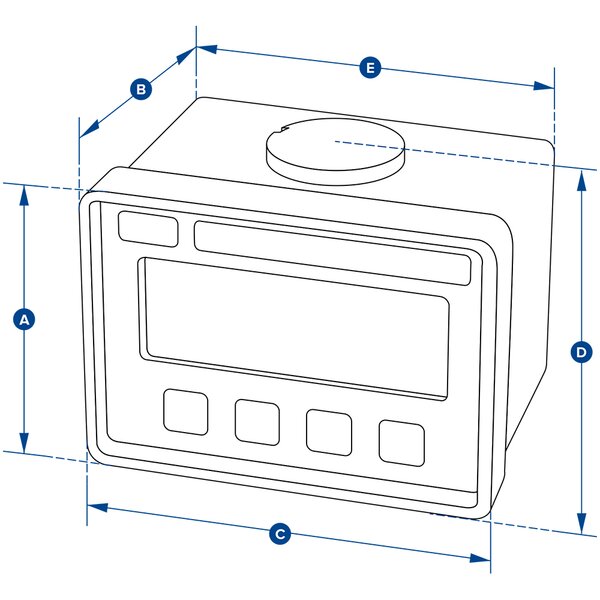

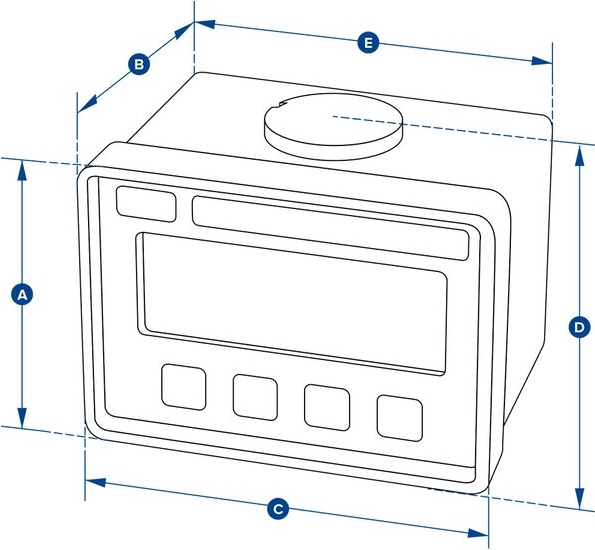

Dimensions

Part Number	A	B	C	D	E
LBP250KG 2789035	81 3.19	81 3.19	113 4.45	90 3.54	104 4.09
LBP500KG 2789037	81 3.19	81 3.19	113 4.45	90 3.54	104 4.09
LBP1T 2789034	81 3.19	81 3.19	113 4.45	90 3.54	104 4.09
LBP2T 2789036	92 3.62	117 4.61	112 4.41	104 4.09	Not Available
LBP5T 2789038	92 3.62	136 5.35	112 4.41	115 4.53	Not Available

Downloads

StraightPoint LBP Compression Load Cell Loadblock Plus - Data Sheet

StraightPoint LBP Compression Load Cell Loadblock Plus - Instruction Manual
