StraightPoint MWP Compact Small Crane Scale Mini Weigher Plus

See More Dynamometers Tension Load Cells

StraightPoint MWP Compact Small Crane Scale Mini Weigher Plus

See More Dynamometers Tension Load Cells
Price:
$3,368.00 - $4,771.00
    warrenty

    Product Description
    StraightPoint MWP Compact Small Crane Scale Mini Weigher Plus
    Selectable Units te, lbs, kN & kg
    High Resolution
    Compact Size

    The StraightPoint MWP Compact Small Crane Scale Mini Weigher Plus is small and compact mini crane weigher scale will suit most lifting applications. Available in capacities from 100kg to 5t. Worldwide, it’s Straightpoint’s most popular product and has been manufactured since 1987. The Miniweigher plus crane scale offers robust construction, high accuracy, compact size and extreme portability. Utilised by utility companies on every continent, the Miniweigher plus crane scale is quite often mounted between a winch and a tripod, allowing the load monitoring and safe lowering and raising of equipment and personnel, and has proven itself to be an indispensable tool for underground sewer, water, gas, and utility vault access.

    The StraightPoint MWP Compact Small Crane Scale Mini Weigher Plus features full function push button controls for tare, choice of units (lbs, kg, kN and tonnes), peak hold, preset tare, audible set-point alarm and an overload counter. Straightpoint’s advanced microprocessor based electronics provide the Miniweigher plus with high speed read rates, extreme resistance to industrial level noise and unprecedented stability. This high stability allows 5,000 + divisions and the highest standard resolution of any compact digital crane scale on the market today. The unit also features a RS-485 serial output providing added functionality and versatility.

    In all, the lightweight design, corrosion resistant finish, advanced electronics and full feature display have made the Miniweigher plus crane scale the only choice when looking for a compact, safe and accurate, crane scale.


    line
    Kit Contents
    line

    • StraightPoint MWP Compact Small Crane Scale Mini Weigher Plus
    • High quality Crosby hook and lifting eye
    • Proof test certificate
    • Operator Manual
    • Carry / Storage Case
    • Warranty 1-Year (FREE Extension to 2-Years with Product Registration)
    • Complies with ASME B30.26


    line

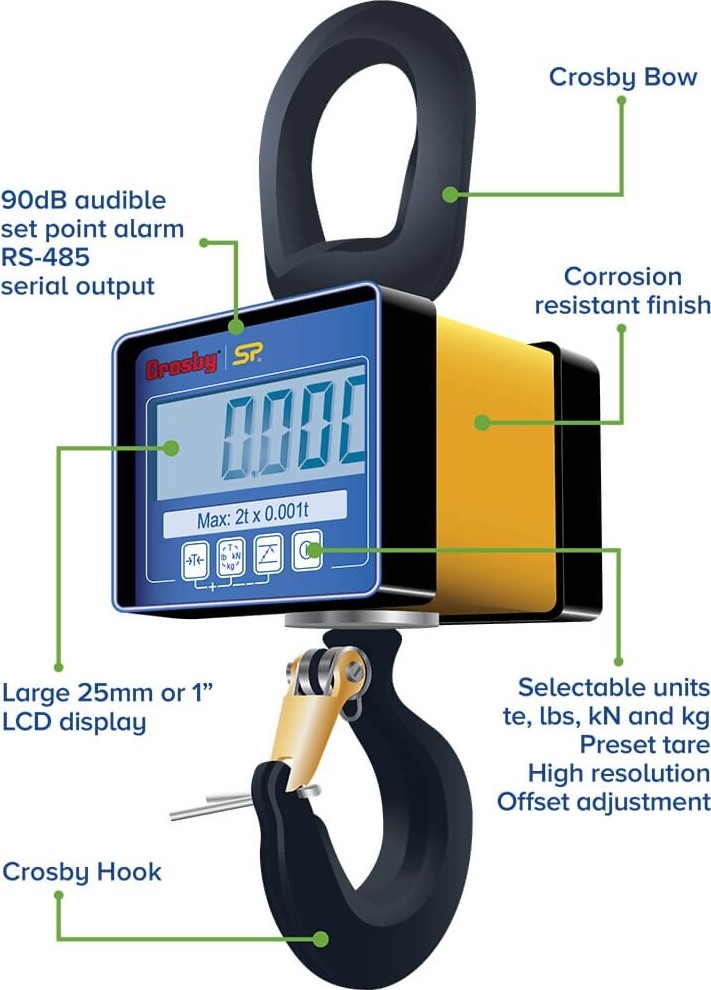

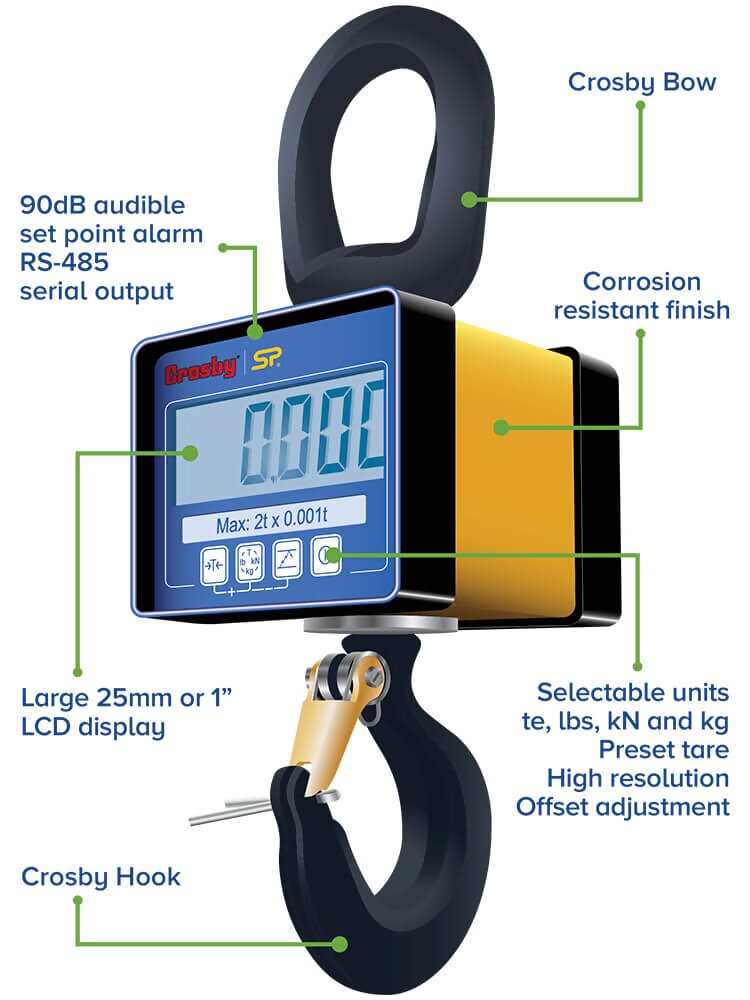

    Features
    line

    • Selectable Units te, lbs, kN & kg
    • High Resolution
    • Compact Size
    • Tare
    • Preset Tare
    • 90dB Audible Set Point Alarm
    • RS-485 Serial Output
    • Corrosion Resistant Finish

    Benefits

    • High Accuracy
    • Lightweight
    • Large 25mm/1” LCD Display

    Applications

    • Under Hook Crane Weighing
    • Under Tripod Load Monitoring
    • Light Duty Structural Load Testing
    • Pipe and Fastener High Torque Load Application
    • Wire Rope and Cable Tension Monitoring
    • Shipping and Receiving Weighing
    • Escalator Comb Impact Load Testing


    line
    Specifications
    line

    ProtectionIP65
    Battery Type9v PP3
    Battery Life80hrs continuous
    Display Type 6 digit 25mm LCD | 6 digit 1" LCD
    Operating Temp -10 to + 50 ° C | 14 to 122 ° F
    Accuracy±0.1% full scale
    Units t, kg, kN & lbs | lbs, t, kg, & kN


    line
    Ranges
    line

    Part NumberCapacityResolution Weight Safety Factor
    MWP100KG100 kg
    220 lb
    0.05 kg
    0.1lb
    1.5 kg
    3.3 lb
    10 : 01
    MWP250KG250 kg
    550 lb
    0.1 kg
    0.2lb
    1.5 kg
    3.3 lb
    05 : 01
    MWP500KG500 kg
    1100 lb
    0.2 kg
    0.5lb
    1.5 kg
    3.3 lb
    05 : 01
    MWP1T1000 kg
    2200 lb
    0.5 kg
    1 lb
    1.5 kg
    3.3 lb
    05 : 01
    MWP2T2 te
    4400 lb
    0.001 te
    2 lb
    3.1 kg
    6.8 lb
    05 : 01
    MWP5T5 te
    11000 lb
    0.001 te
    2 lb
    8.7 kg
    19.2 lb
    05 : 01


    line

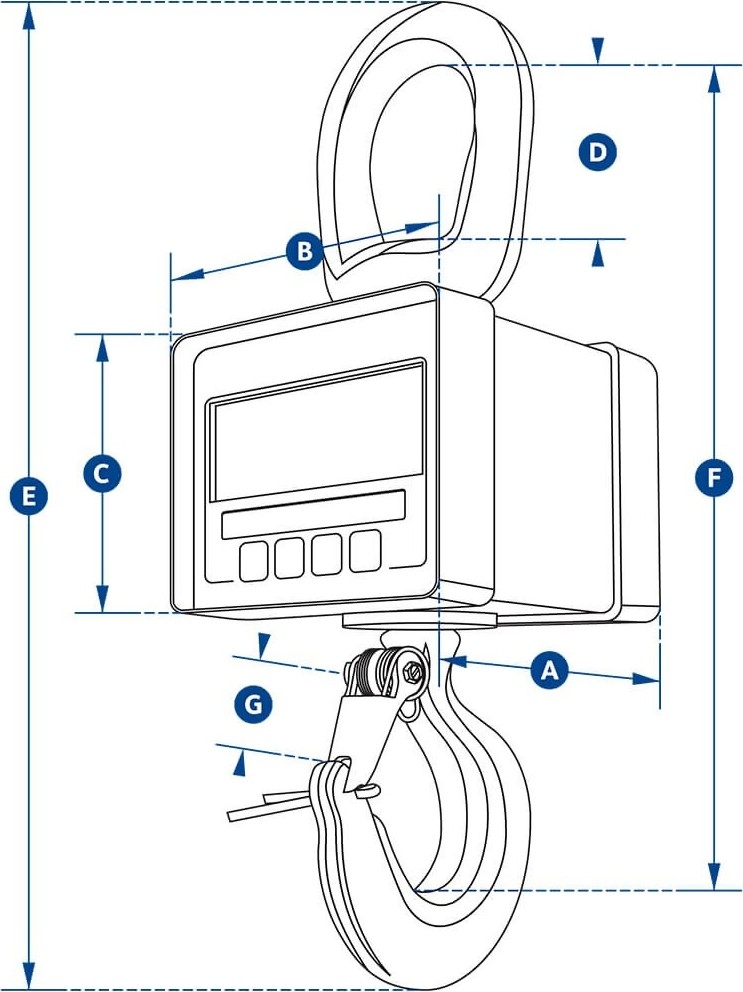

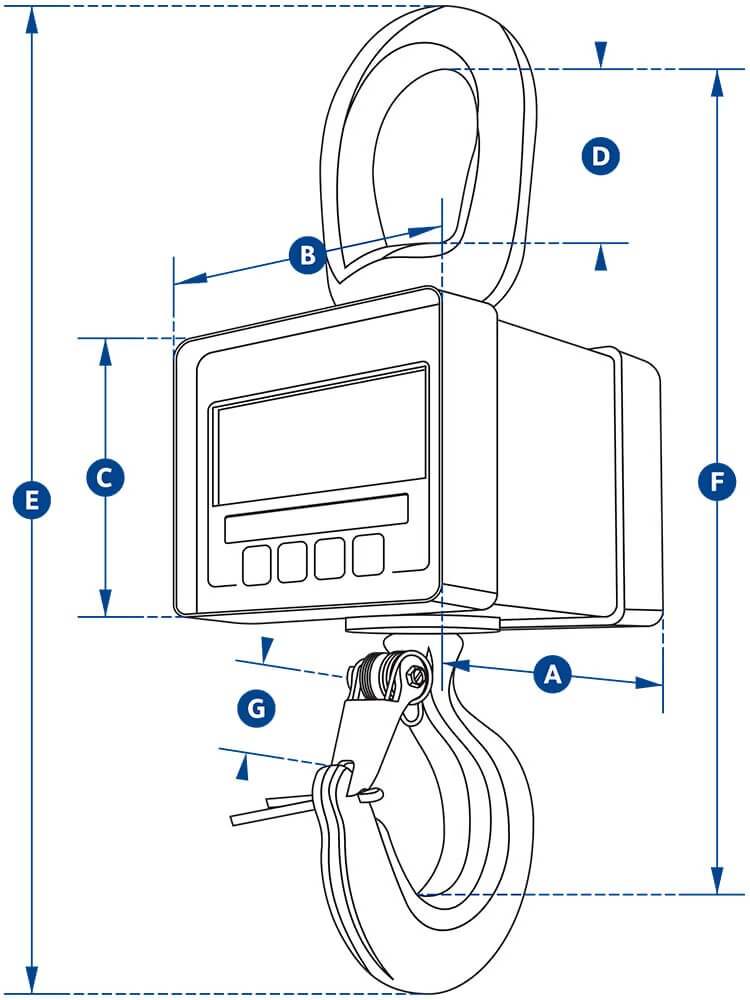

    Dimensions
    line

    Part NumberABCDEFG
    MWP100KG82
    3.23
    113
    4.45
    81
    3.19
    50
    1.97
    240
    9.45
    208
    8.19
    22
    0.87
    MWP250KG82
    3.23
    113
    4.45
    81
    3.19
    50
    1.97
    240
    9.45
    208
    8.19
    22
    0.87
    MWP500KG82
    3.23
    113
    4.45
    81
    3.19
    50
    1.97
    240
    9.45
    208
    8.19
    22
    0.87
    MWP1T82
    3.23
    113
    4.45
    81
    3.19
    50
    1.97
    240
    9.45
    208
    8.19
    22
    0.87
    MWP2T117
    4.61
    112
    4.41
    92
    3.62
    64
    2.52
    320
    12.60
    271
    10.67
    28
    1.10
    MWP5T136
    5.35
    112
    4.41
    92
    3.62
    98
    3.86
    444
    17.48
    365
    14.37
    42
    1.65


    line
    Downloads
    line

    StraightPoint MWP Compact Small Crane Scale Mini Weigher Plus - Data Sheet
    StraightPoint MWP Compact Small Crane Scale Mini Weigher Plus - Instruction Manual
