    Product Description
    StraightPoint StageSafe Load Cell for Entertainment Rigging - SSDB3T Built-in Wireless for Entertainment Rigging
    Display Sold Separately
    3te / 3000 Kg / 6600 lb Capacity
    Wireless or Wired Operation

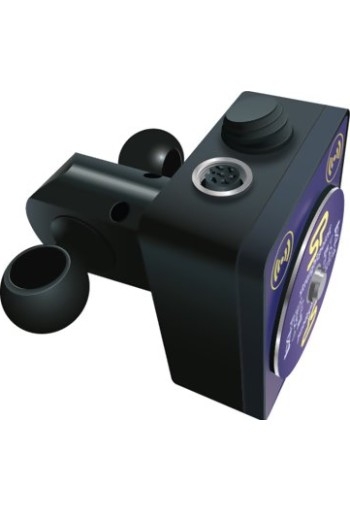

    Straightpoint StageSafe Load Cell for Entertainment Rigging - SSDB3T Built-in Wireless is a 3 tonne capacity load cell designed exclusively for the entertainment industry. A matte black finish ensures there are no visual distractions. High accuracy and low headroom make it ideal for a wide range of rigging applications.

    Wireless mode allows simple, cable-free load monitoring and overload protection across the entire rigging setup and up to 100 StageSafe loadcells may be monitored and logged real time on a tablet or laptop using our SW-MWLC software.

    Wired mode gives the reassurance and dependability of a cabled load cell meaning it is suitable for show-critical events. The data can then be relayed to a single handheld display or to a PLC or external controller via our range of accessories.


    line
    Features
    line

    • Compact and light - Perfect for stage riggers dealing with limited space
    • Matte black finish - Disappears into stage rigging for zero audience distraction
    • Unique wired and wireless capability via a simple toggle switch - One load cell for both show-critical events (wired) and more general weighing/monitoring (wireless)
    • Lighter, more compact cabling - Eliminates overly heavy and chunky cabling and gives stage riggers a more portable solution
    • User configurable overload alarms in both wired and wireless modes - Easy to set on site for simple overload protection
    • Constructed from high strength alloy steel - For best strength to size ratio
    • Accepts standard shackles
    • 1200 hour battery life
    • 700 m / 2300 ft wireless range
    • Warranty 1-Year (FREE Extension to 2-Years with Product Registration)


    line
    Specifications
    line

    Capacity3te / 3000 Kg / 6600 lb
    Resolution0.001 te / 1 Kg / 2lb
    Weight1.5 Kg / 3.3 lb
    Accuracy+/- 0.3% of applied load
    Safety Factor5:1
    Battery Type4x AA
    Battery Life1200 hours continuous
    Operating Temp-10 to +50°C / 14 to 122°F
    Wireless Range700 meters / 2300 ft
    ProtectionIP65 (IP67 available as option) / NEMA 4x (NEMA 6 optional)
    Crosby ShackleG2130-3.25T


    lineRelated Products
    line

    StraightPoint INSIGHT Software

    related


    line
    Downloads
    line

    Straightpoint StageSafe Load Cell for Entertainment Rigging - SSDB3T Built-in Wireless - Dimensional Drawing
