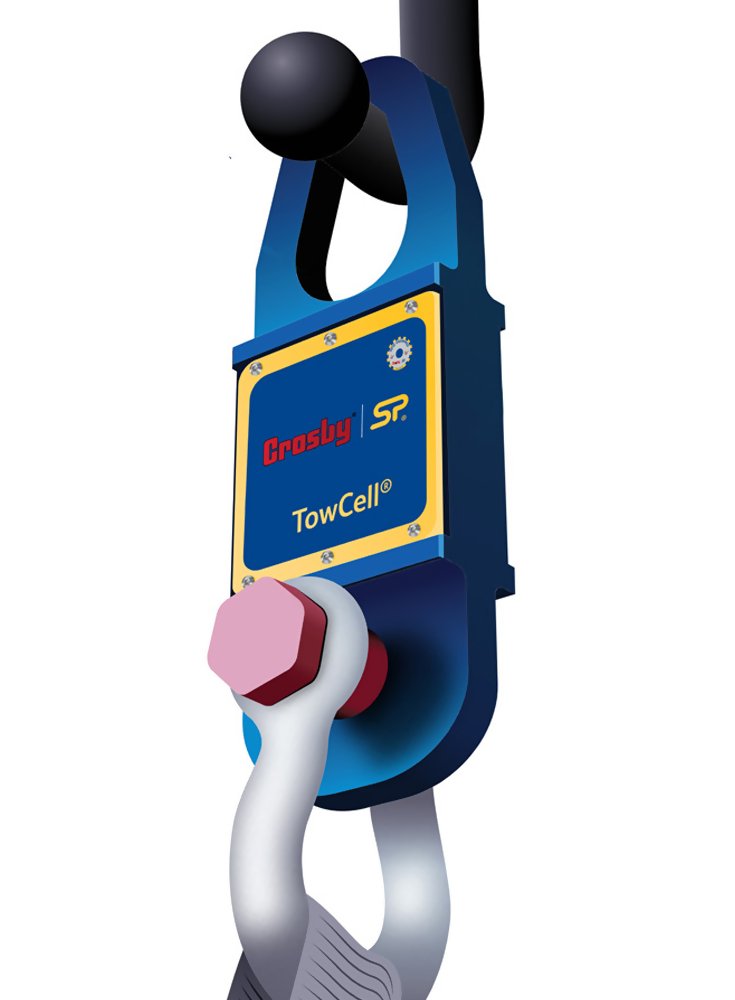

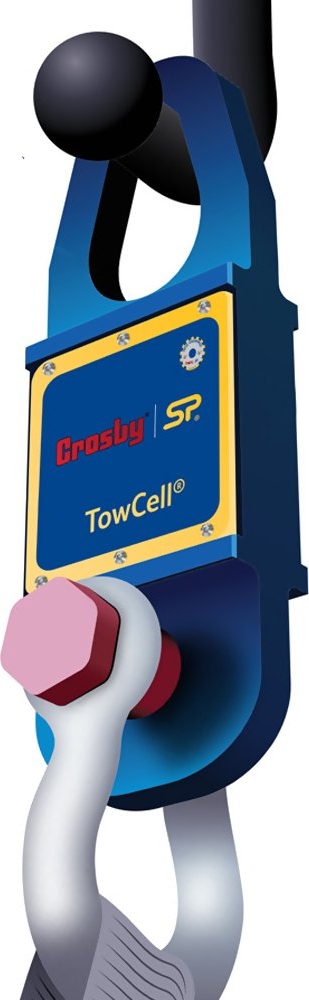

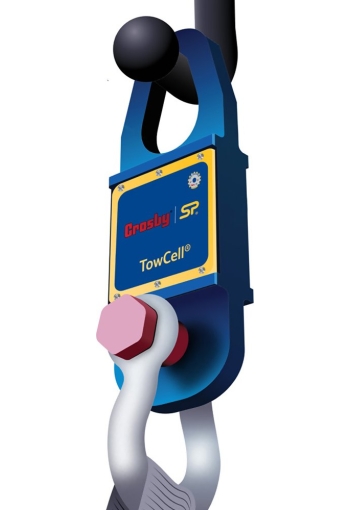

Straightpoint Towcell-Bluetooth Towbar Load Cell, Tow Hitch Dynamometer

---

Wireless Load Cell for Monitoring Towed Loads up to 25 kN / 2.8 tonnes

---

Bluetooth Output with 100m or 328ft Wireless Range

---

5:1 Safety Factor

---

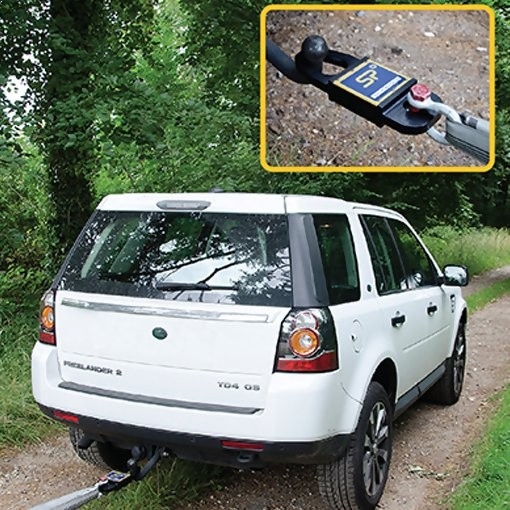

The Straightpoint Towcell® wireless load cell is designed to monitor a vehicle's towed load up to 25 kN / 2.8 tonnes. Typical applications include emergency services, salvage, off-road and much more. The Towcell® allows for increased safety and the avoidance of costly overloads by providing real-time monitoring of tensile towing forces during recovery, clearance and salvage efforts. The Straightpoint Towcell® is rugged, lightweight, compact and can be installed, with ease, onto any tow bar, whether it’s a standard 52mm or 2” ball or pin assembly and is ready to use in seconds.

Modeled after Straightpoint’s best-selling Radiolink plus, the Towcell® is constructed of high-quality aircraft-grade aluminum, featuring an advanced internal design structure providing the product with an unrivaled strength to weight ratio, and allowing for the use of a separate internal sealed enclosure. This internal sealed enclosure provides the internal electronic components with IP67/NEMA6 waterproof environmental protection even with the battery cover plate missing.

Easily sourced AA alkaline batteries offer a massive battery life of 500 hours, the Towcell® utilizes an unbreakable internal antenna. Towcell® loads are displayed via Bluetooth SW-HHP App for Android and iOS devices.

Kit Contents

Straightpoint Towcell-Bluetooth Towbar Load Cell Proof test certificate Operator Manual Carry/Storage Case AA Alkaline Batteries RFID Tagged

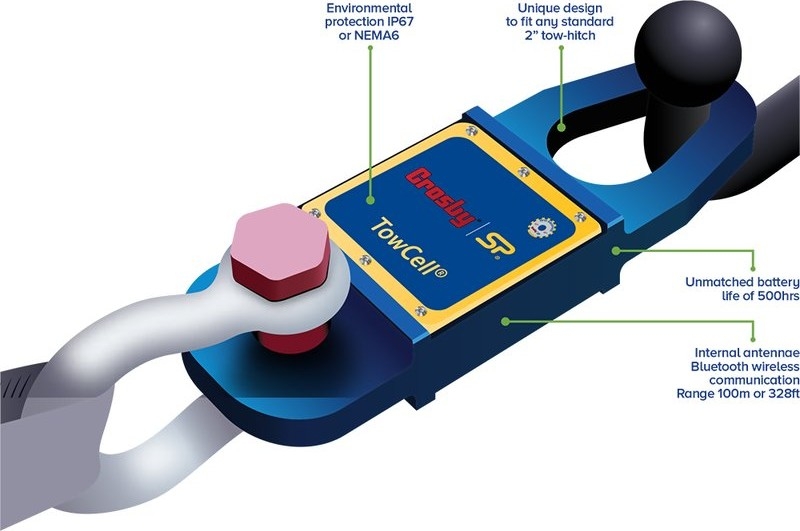

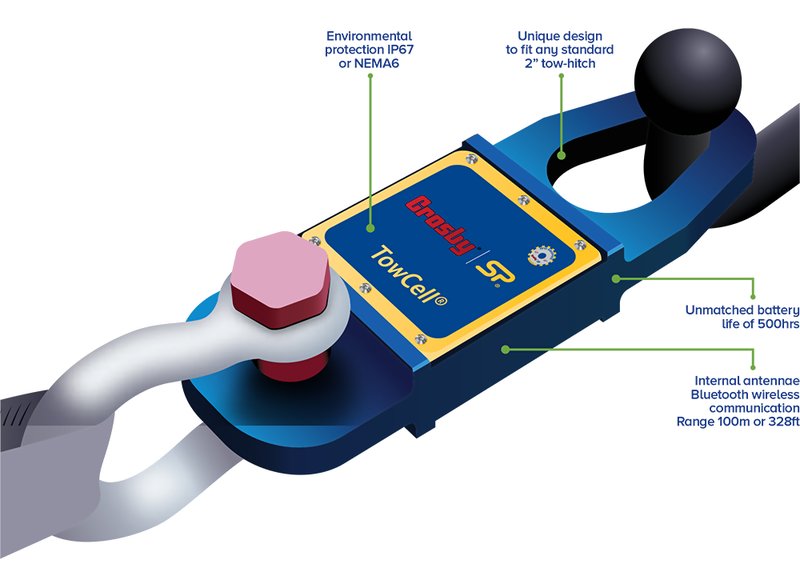

Features

• Unique design to fit any standard 2” tow-hitch
• Lightweight Internal antennae
• Compact size
• Bluetooth wireless communication
• Range 100m or 328ft
• Waterproof to IP67/NEMA6
• Unmatched battery life of 500hrs
• Vehicle load monitoring
• Emergency services
• Rescue & Salvage
• 4 x 4 Events
• Design validated by F.E.A.
• Warranty 1-Year (FREE Extension to 2-Years with Product Registration)

Specifications

Capacity	25 kN / 2.8 Tonnes
Resolution	0.01 kN / 0.001 Tonnes
Accuracy	+/- 0.1% FS
Weight	1.4 Kg / 3lbs
Safety Factor	5:1
Battery Type	4x AA
Battery Life	500 Hours
Operating Temp	-10°c to +50°c / 14˚ to 122˚F
Wireless Range	100 metres / 328 feet
Data Rate	50Hz

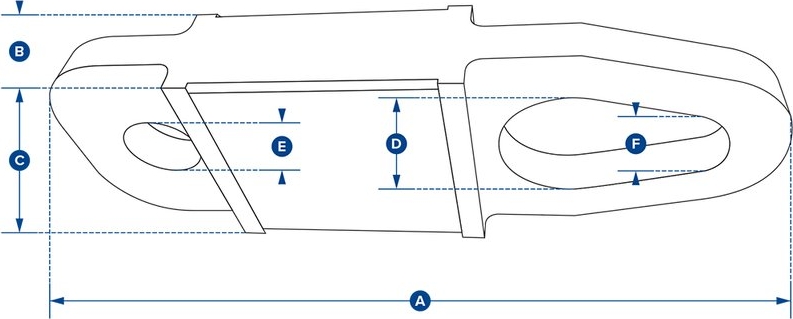

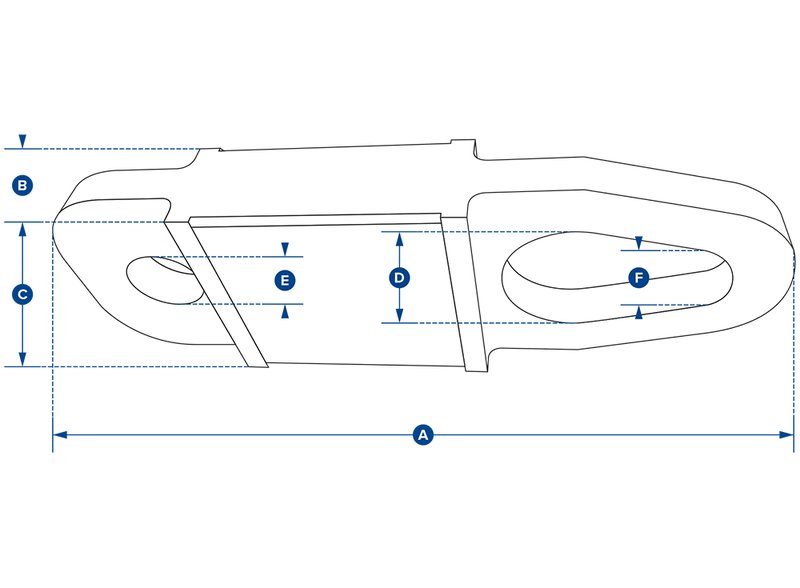

Dimensions	Refer to PDF Brochure
